Toro GrandStand 122cm - 72504TE (417500000 - 419999999) Frame

Name: Toro GrandStand 122cm - 72504TE (417500000 - 419999999) Frame
SKU: grandstand_122cm_72504te_4175999999999_frame-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 122cm - 72504TE (417500000 - 419999999) Frame

Description

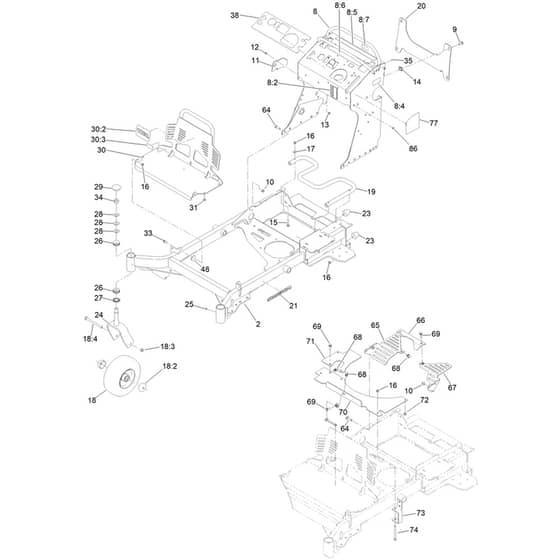

Toro GrandStand 122cm - 72504TE (417500000 - 999999999) Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA131-7423-01 Available to backorder	Frame	£1,752.00 £1,460.00
8	HA140-4283 Available to backorder	Tower Decal Asm	£937.20 £781.00
8	HA147-7921 Available to backorder	[8.2] Decal-Oil Level	£5.98 £4.98
8	HA116-8775 Available to backorder	[8.4] Decal-Fill. Fuel	£12.38 £10.32
8	HA139-2878 Available to backorder	[8.5] Warning Decal	£10.12 £8.43
8	HA131-3526 Available to backorder	[8.6] Decal - Controls	£13.16 £10.97
8	HA147-0212 Available to backorder	[8.7] Decal - Fuse	£2.86 £2.38
9	HA3234-42 Available to backorder	Hex Head Flange (Hhf) Screw	£1.72 £1.43
10	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
11	HA131-7455 Available to backorder	Striker Plate	£16.74 £13.95
12	HA3229-11 Available to backorder	Carriage Screw	£1.42 £1.18
13	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
14	HA105-4886 Available to backorder	Nut-Tinnerman	£3.70 £3.08
15	HA3230-5 Available to backorder	Carriage Bolt	£1.03 £0.86
16	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
17	HA107-3844 Available to backorder	Washer	£2.18 £1.82
18	HA140-5485 Available to backorder	11X4-5 Wheel Tire Bearing Assembly	£250.32 £208.60
18	HA103-2768 Available to backorder	[18.2] Guard-Seal	£4.06 £3.38
18	HA3296-45 Available to backorder	[18.3] Hex Nut	£4.54 £3.78
18	HA325-20 In stock	[18.4] Hex Head (Hh) Screw	£7.52 £6.27
19	HA132-5161-01 Available to backorder	Fuel Tank Mount Tube	£93.30 £77.75
21	HA117-3591 Available to backorder	Decal - Commercial	£17.94 £14.95
23	HA114-1926 Available to backorder	Rubber Bumper	£32.30 £26.92
24	HA147-6343-01 Available to backorder	Caster Fork Asm [Welded] [Red]	£240.60 £200.50
25	HA1-811010 Available to backorder	Plug	£5.84 £4.87
26	HA1-543509 Available to backorder	Bearing-Roller. Tapered	£16.74 £13.95
27	HA116-5647 Available to backorder	Seal-Grease	£6.34 £5.28
28	HA1-633508 In stock	Belleville Washer	£5.16 £4.30
29	HA103-4882 Available to backorder	Grease Cap	£8.72 £7.27
30	HA163-4105 Available to backorder	Engine Guard Asm W.Decals [Hd. Txt-Blk]	£322.80 £269.00
30	HA94-2579 Available to backorder	[30.2] Decal [Toro. 3-1.4 X 5]	£15.90 £13.25
30	HA133-4641 Available to backorder	[30.3] Decal - No Riders Warning	£3.20 £2.67
31	HA1-513658 Available to backorder	Bumper (REF 31& 72)	£7.28 £6.07
33	HA3230-10 Available to backorder	Carriage Bolt	£0.96 £0.80
34	HA3296-51 Available to backorder	Ni Lock Nut	£5.06 £4.22
35	HA3290-271 Available to backorder	Pop Rivet	£0.48 £0.40
38	HA140-4258 Available to backorder	Control Panel Decal	£50.14 £41.78
48	HA107-3002 Available to backorder	Nylon Washer	£4.22 £3.52
64	HA119-4061 Available to backorder	Screw-Hhf[3.8-16 X 1.25. Gr 5. Cz]	£1.42 £1.18
65	HA133-4619-01 Available to backorder	Right Hand(Rh) Fan Guard	£65.84 £54.87
66	HA133-4618-01 Available to backorder	Center Fan Guard	£47.02 £39.18
67	HA133-4622-01 Available to backorder	Left Hand (Lh) Fan Guard	£59.56 £49.63
68	HA94-2413 Available to backorder	U Nut	£2.14 £1.78
69	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£2.88 £2.40
70	HA134-3810-03 Available to backorder	Extension Guard	£104.56 £87.13
71	HA133-4649-03 Available to backorder	Belt Guard	£26.64 £22.20
73	HA131-3530-05 Available to backorder	Guard Mounting Bracket - Black	£17.94 £14.95
74	HA106-9758 Available to backorder	Carriage Screw	£3.58 £2.98
86	HA104-9368 Available to backorder	Dome Panel Plug	£0.48 £0.40
