Toro GrandStand 122cm - 72504TE (415200000 - 417099999) Electrical

Description

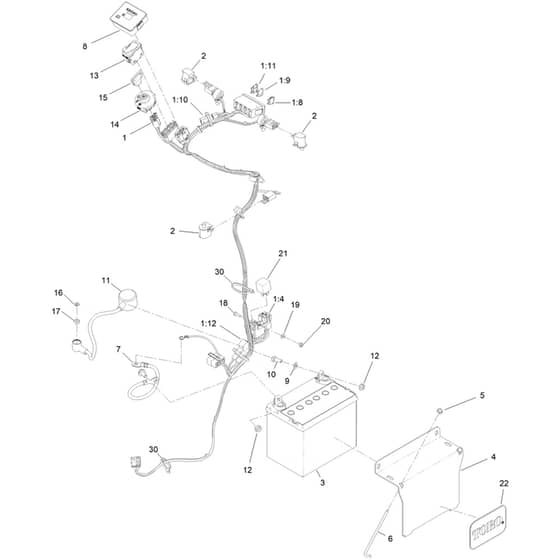

Toro GrandStand 122cm - 72504TE (415200000 - 417099999) Electrical Parts Diagram

	Part No.	Details
1	HA145-5228 Available to backorder	Harness-Wire. Grandstand	£376.68 £313.90
1	HA109101 Available to backorder	[1.4] Fuse-Blade. 20 Amp	£2.34 £1.95
1	HA109355 Available to backorder	[1.8] Fuse-Blade. 15 Amp	£5.32 £4.43
1	HA218-578 Available to backorder	[1.9] Fuse-Blade. 10 Amp	£3.19 £2.66
1	HA116-0053 Available to backorder	[1.10] Cap-Plug	£47.00 £39.17
1	HA110928 Available to backorder	[1.11] Fuse-Blade. 5 Amp	£9.64 £8.03
1	HA109103 Available to backorder	[1.12] Fuse-Blade. 30 Amp	£7.54 £6.28
2	HA82-2190 Available to backorder	Switch-Bail	£17.32 £14.43
5	HA104-7201 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
6	HA1-633651 Available to backorder	Bolt-Holddown	£8.52 £7.10
7	HA112-7063 Available to backorder	Cable-Battery. Black	£55.68 £46.40
8	HA140-1884 Available to backorder	Module-Meter. Hour	£204.12 £170.10
9	HA3256-23 Available to backorder	Washer-Plain	£0.48 £0.40
10	HA322-3 Available to backorder	Screw-Hh	£0.97 £0.81
11	HA115-3864 Available to backorder	Cable-Battery. Positive	£35.88 £29.90
12	HA109-5715 Available to backorder	Nut-Hhf. Smooth	£0.62 £0.52
13	HA139-6367 Available to backorder	Switch-Rocker. (On)-On-Off	£40.84 £34.03
14	HA137-4101 Available to backorder	Switch-Ignition	£39.58 £32.98
15	HA63-8360 Available to backorder	Key-Ignition	£6.56 £5.47
16	HA3253-3 Available to backorder	Washer-Lock	£0.54 £0.45
17	HA3217-5 Available to backorder	Nut-Hex	£0.43 £0.36
18	HA3290-500 Available to backorder	Screw-Pph	£1.46 £1.22
19	HA3256-14 Available to backorder	Washer-Flat	£0.64 £0.53
20	HA3296-2 Available to backorder	Nut-Lock. Ni	£2.34 £1.95
21	HA1-643275 Available to backorder	Relay	£27.20 £22.67
30	HA3290-378 Available to backorder	Tie-Cable	£0.97 £0.81
