Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Ground Drive

Name: Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Ground Drive
SKU: grandstand_122cm_72504te_414556415199999_ground_drive-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Ground Drive

Description

Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Ground Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA138-5838 Available to backorder	Lh Transmission Asm	£2,970.00 £2,475.00
2	HA138-5839 Available to backorder	Rh Transmission Asm	£2,970.00 £2,475.00
3	HA131-1131-03 Available to backorder	Support-Transaxle	£56.30 £46.92
4	HA93-2569 Available to backorder	Screw-Hhf	£1.58 £1.32
5	HA116-4701 Available to backorder	Screw-Hhf	£3.10 £2.58
6	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.74 £1.45
7	HA138-1108-03 Available to backorder	Plate-Skid	£204.96 £170.80
9	HA117-5351 Available to backorder	Spacer	£25.12 £20.93
10	HA1-413088 Available to backorder	Bushing-Lever. Lift	£11.94 £9.95
11	HA131-1175 Available to backorder	Arm-Idler	£68.18 £56.82
12	HA114-0463 Available to backorder	Washer-Friction. Composite	£7.70 £6.42
13	HA110-9981 Available to backorder	Washer-Plain	£21.94 £18.28
14	HA3234-39 Available to backorder	Screw-Hhf	£1.70 £1.42
15	HA93-1622 Available to backorder	Pulley-Idler	£56.22 £46.85
16	HA323-14 Available to backorder	Screw-Carr	£2.10 £1.75
17	HA138-1104 Available to backorder	Spring-Extension	£9.56 £7.97

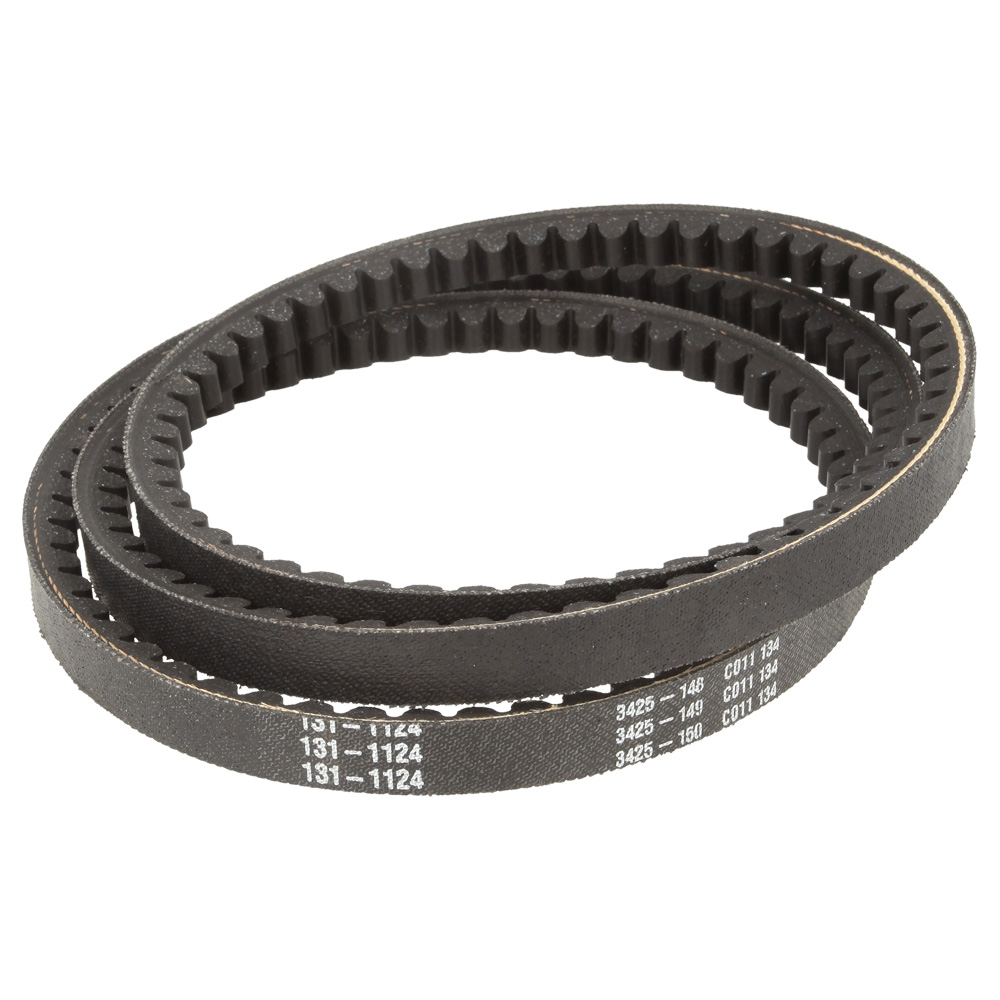

18	HA131-1124 Available to backorder	Belt-V	£37.08 £30.90
19	HA132-1135 Available to backorder	Tank-Hyd	£176.96 £147.47
19	HA133-8677 Available to backorder	[19.2] Cap-Vented	£19.12 £15.93
20	HA3229-1 Available to backorder	Screw-Carr	£4.06 £3.38
21	HA104-7201 Available to backorder	Nut-Hf. Ni	£1.30 £1.08
23	HA109-0309 Available to backorder	Hose-Fuel	£22.72 £18.93
24	HA92-2379 Available to backorder	Clamp-Hose	£0.65 £0.54
25	HA131-7469 Available to backorder	Rod-Bypass. Rh	£24.12 £20.10
26	HA131-7470 Available to backorder	Rod-Bypass. Lh	£24.12 £20.10
27	HA108-2992 Available to backorder	Pin-Hair	£1.42 £1.18
28	HA32180-030 Available to backorder	Clip-Tie	£6.56 £5.47
29	HA140-1888 Available to backorder	Wheel And Tire Asm	£264.72 £220.60
29	HA140-1889 Available to backorder	[29.1] Rim-8 Inch Black	£79.94 £66.62
29	HA120-6466 Available to backorder	[29.2] Tire	£196.28 £163.57
29	HA5108 Available to backorder	[29.3] Stem-Valve	£10.12 £8.43
30	HA242-50 Available to backorder	Nut-Lug	£1.94 £1.62
31	HA132-7584 Available to backorder	Spacer-Hex	£34.68 £28.90
32	HA104-8300 Available to backorder	Nut-Hf. Ni	£0.62 £0.52
33	HA3290-250 Available to backorder	Pin-Cotter	£6.70 £5.58
34	HA2412-129 Available to backorder	Clamp-Hose	£3.30 £2.75
35	HA3290-378 Available to backorder	Tie-Cable	£1.13 £0.94
