Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Deck Lift

Name: Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Deck Lift
SKU: grandstand_122cm_72504te_414556415199999_deck_lift-group
Price: 0.36 GBP
Availability: InStock

Part No. grandstand_122cm_72504te_414556415199999_deck_lift-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Deck Lift

Description

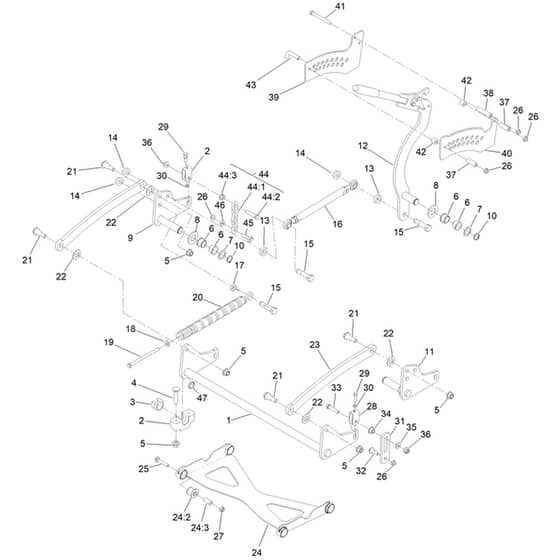

Toro GrandStand 122cm - 72504TE (414556000 - 415199999) Deck Lift Parts Diagram

	Part No.	Details
1	HA120-8405-01 Available to backorder	Shaft-Cross. Front	£261.12 £217.60
2	HA109-9409 Available to backorder	Support-Bearing. Cross Shaft (Front)	£17.32 £14.43
3	HA109-9410 Available to backorder	Bearing-Cross Shaft. Front	£4.08 £3.40
4	HA116-1700 Available to backorder	Bolt-Carr	£4.32 £3.60
5	HA99-5107 Available to backorder	Nut-Hf Nylock	£3.04 £2.53
6	HA127-0369 Available to backorder	Bushing	£10.88 £9.07
7	HA10-8110 Available to backorder	Washer-Thrust	£1.86 £1.55
8	HA3256-62 Available to backorder	Washer-Flat	£1.28 £1.07
9	HA120-8411-01 Available to backorder	Arm-Lift. Rh	£60.96 £50.80
10	HA32151-29 Available to backorder	Ring-Retaining	£4.45 £3.71
11	HA120-8410-01 Available to backorder	Arm-Lift. Lh	£60.96 £50.80
12	HA130-1755 Available to backorder	Hoc Lever Asm	£340.08 £283.40
13	HA119-6223 Available to backorder	Washer	£8.28 £6.90
14	HA138-4932 Available to backorder	Nut-Hex Flg	£3.34 £2.78
15	HA138-4931 Available to backorder	Screw-Lock	£4.69 £3.91
16	HA130-6615 Available to backorder	Hoc Link Asm	£201.00 £167.50
17	HA3218-6 Available to backorder	Nut-Jam	£1.06 £0.88
18	HA98-5975 Available to backorder	Washer-Belleville	£5.32 £4.43
19	HA323-58 Available to backorder	Bolt-Tap. Hh	£6.19 £5.16
20	HA116-0886 Available to backorder	Spring-Extension	£156.72 £130.60
21	HA116-0780 Available to backorder	Screw-Shoulder. Hhf	£9.89 £8.24
22	HA3256-28 Available to backorder	Washer-Flat	£0.83 £0.69
23	HA127-1948-03 Available to backorder	Link-Lift	£94.92 £79.10
24	HA137-4129 Available to backorder	Deck Strut Asm	£199.44 £166.20
24	HA137-4108 Available to backorder	[24.2] Bushing-Rubber	£6.04 £5.03
24	HA108-6544 Available to backorder	[24.3] Spacer	£18.35 £15.29
25	HA323-17 Available to backorder	Screw-Carr	£3.52 £2.93
26	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.80 £1.50
27	HA32128-19 Available to backorder	Nut-Hf Lock.Large Flg	£1.69 £1.41
28	HA109-9066 Available to backorder	Yoke-Adjust. Deck	£9.02 £7.52
29	HA322-47 Available to backorder	Screw-Hh	£2.59 £2.16
30	HA3218-2 Available to backorder	Nut-Hex Jam	£0.43 £0.36
31	HA130-6589 Available to backorder	Link-Lift	£32.17 £26.81
32	HA109-9840 Available to backorder	Screw-Shoulder. Hhf	£5.20 £4.33
34	HA116-2428 Available to backorder	Bushing-Flanged	£14.83 £12.36
35	HA3256-4 In stock	Washer-Flat	£0.48 £0.40
36	HA3296-48 Available to backorder	Nut-Hex	£0.62 £0.52
37	HA95-6448 Available to backorder	Spacer	£6.66 £5.55
38	HA138-1111 Available to backorder	Spacer	£18.56 £15.47
39	HA132-7581 Available to backorder	Hoc Plate And Decal Asm	£95.76 £79.80
40	HA138-4887 Available to backorder	Plate-Hoc. Inner	£120.84 £100.70
41	HA116-4701 Available to backorder	Screw-Hhf	£3.20 £2.67
42	HA121-1760 Available to backorder	Spacer	£2.46 £2.05
43	HA116-5584 Available to backorder	Pin-Hoc	£5.81 £4.84
44	HA116-0756 Available to backorder	Deck Lift Chain Asm	£17.32 £14.43
44	HA1-633447 Available to backorder	[44.1] Chain-Lift. Deck	£12.35 £10.29
44	HA109-9065 Available to backorder	[44.2] Screw-Hh (Ref 44.2 & 33)	£3.83 £3.19
44	HA32128-37 Available to backorder	[44.3] Nut-Hf	£6.23 £5.19
45	HA130-0742 Available to backorder	Bolt-Shoulder	£2.21 £1.84
46	HA43-0940 Available to backorder	Spacer	£2.15 £1.79
47	HA133-1431 Available to backorder	Spacer-Split	£6.66 £5.55
