Toro GrandStand 122cm - 72504TE (414300000 - 414399999) Frame

Name: Toro GrandStand 122cm - 72504TE (414300000 - 414399999) Frame
SKU: grandstand_122cm_72504te_4143414399999_frame-group
Price: 0.35 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 122cm - 72504TE (414300000 - 414399999) Frame

Description

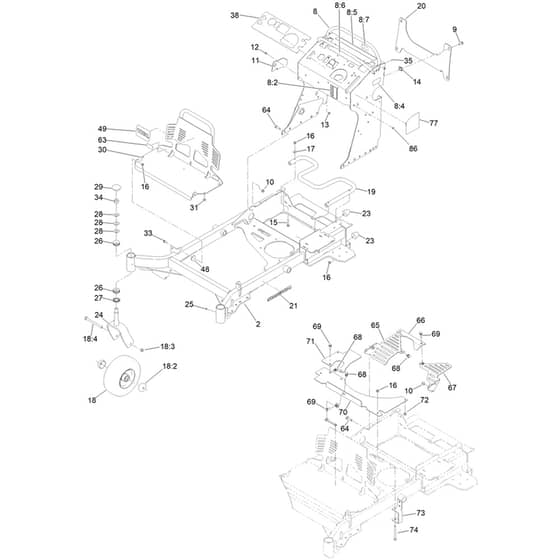

Toro GrandStand 122cm - 72504TE (414300000 - 414399999) Frame Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HA131-7423-01 Available to backorder	Frame	£1,590.00 £1,325.00
8	HA140-4283 Available to backorder	Tower Decal Asm	£850.80 £709.00
8	HA147-7921 Available to backorder	[8.2] Decal - Oil Level	£5.98 £4.98
8	HA116-8775 Available to backorder	[8.4] Decal-Fill. Fuel	£13.02 £10.85
8	HA139-2878 Available to backorder	[8.5] Warning Decal	£10.44 £8.70
8	HA131-3526 Available to backorder	[8.6] Decal - Controls	£13.16 £10.97
8	HA131-3528 Available to backorder	[8.7] Decal - Fuse	£2.48 £2.07
9	HA3234-42 Available to backorder	Hex Head Flange (Hhf) Screw	£1.82 £1.52
10	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
11	HA131-7455 Available to backorder	Striker Plate	£16.74 £13.95
12	HA3229-11 Available to backorder	Carriage Screw	£1.18 £0.98
13	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.14 £0.95
14	HA105-4886 Available to backorder	Nut-Tinnerman	£3.94 £3.28
15	HA3230-5 Available to backorder	Carriage Bolt	£0.90 £0.75
16	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.64 £0.53
17	HA107-3844 Available to backorder	Washer	£2.24 £1.87
18	HA140-5485 Available to backorder	11X4-5 Wheel Tire Bearing Assembly	£268.44 £223.70
18	HA103-2768 Available to backorder	[18.2] Guard-Seal	£4.06 £3.38
18	HA3296-45 Available to backorder	[18.3] Hex Nut	£4.54 £3.78
18	HA325-20 In stock	[18.4] Hex Head (Hh) Screw	£7.52 £6.27
19	HA132-5161-01 Available to backorder	Fuel Tank Mount Tube	£96.52 £80.43
20	HA132-1145-03 Available to backorder	Cross Bracket - Black	£56.22 £46.85
21	HA117-3591 Available to backorder	Decal - Commercial	£17.94 £14.95
23	HA114-1926 Available to backorder	Rubber Bumper	£32.30 £26.92
24	HA147-6343-01 Available to backorder	Caster Fork Asm [Welded] [Red]	£251.88 £209.90
25	HA1-811010 Available to backorder	Plug	£5.84 £4.87
26	HA1-543509 Available to backorder	Bearing-Roller. Tapered	£16.74 £13.95
27	HA116-5647 Available to backorder	Seal-Grease	£6.34 £5.28
28	HA1-633508 In stock	Belleville Washer	£5.28 £4.40
29	HA103-4882 Available to backorder	Grease Cap	£8.72 £7.27
30	HA132-5150-03 Available to backorder	Engine Guard	£223.08 £185.90
31	HA1-513658 Available to backorder	Bumper (Ref 31&72)	£7.28 £6.07
33	HA3230-10 Available to backorder	Carriage Bolt	£0.82 £0.68
34	HA3296-51 Available to backorder	Ni Lock Nut	£5.34 £4.45
35	HA3290-271 Available to backorder	Pop Rivet	£0.42 £0.35
38	HA140-4258 Available to backorder	Control Panel Decal	£53.08 £44.23
48	HA107-3002 Available to backorder	Nylon Washer	£4.50 £3.75
49	HA105-8278 Available to backorder	Decal [Toro Logo]	£16.00 £13.33
63	HA133-4641 Available to backorder	Decal - No Riders Warning	£3.20 £2.67
64	HA119-4061 Available to backorder	Screw-Hhf[3.8-16 X 1.25. Gr 5. Cz]	£1.24 £1.03
65	HA133-4619-01 Available to backorder	Right Hand(Rh) Fan Guard	£69.18 £57.65
66	HA133-4618-01 Available to backorder	Center Fan Guard	£49.86 £41.55
67	HA133-4622-01 Available to backorder	Left Hand (Lh) Fan Guard	£62.72 £52.27
68	HA94-2413 Available to backorder	U Nut	£2.14 £1.78
69	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.04 £2.53
70	HA134-3810-03 Available to backorder	Extension Guard	£103.44 £86.20
71	HA133-4649-03 Available to backorder	Belt Guard	£27.34 £22.78
73	HA131-3530-05 Available to backorder	Guard Mounting Bracket - Black	£17.94 £14.95
74	HA106-9758 Available to backorder	Carriage Screw	£3.58 £2.98
86	HA104-9368 Available to backorder	Dome Panel Plug	£0.47 £0.39
