Gi 48 T - Oleo-Mac Rotary Mower Complete illustrated parts list Diagram

Description

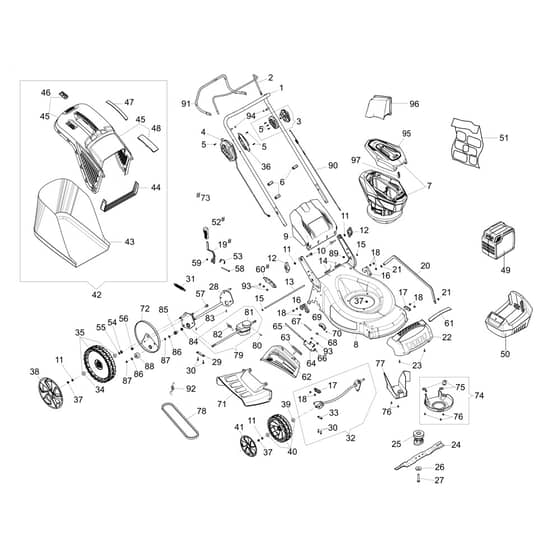

Oleo-Mac Gi 48 T Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6	EF66060231 Available to backorder	Band	£2.88 £2.40
10	EF3910015R Available to backorder	Screw	£1.84 £1.53
11	EF3916008R Available to backorder	Washer	£1.82 £1.52
12	EF66070943R Available to backorder	Tightening Handle	£6.88 £5.73
13	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
14	EF66110609A Available to backorder	Kit Spring	£9.46 £7.88
16	EF66110781 Available to backorder	Support	£8.74 £7.28
18	EF3032015 Available to backorder	Rivet	£0.90 £0.75
19	EF66070286CR Available to backorder	Lever	£18.50 £15.42
20	EF66110100 Available to backorder	Rod	£19.02 £15.85
21	EF3045035R Available to backorder	Retainer Washer	£2.76 £2.30
22	EF66070488R Available to backorder	Guard	£27.10 £22.58
26	EF66060384R Available to backorder	Washer	£3.68 £3.07
27	EF3906150R Available to backorder	Screw	£5.44 £4.53
28	EF66070287AR Available to backorder	Rear Axle	£88.92 £74.10
29	EF66030039 Available to backorder	Plate	£2.76 £2.30
30	EF3960031R Available to backorder	Screw	£0.98 £0.82
31	EF66070036R Available to backorder	Spring	£5.44 £4.53
32	EF66070749 Available to backorder	Axle Kit	£55.38 £46.15
35	EF66071056R Available to backorder	Complete Wheel	£32.94 £27.45
37	EF3914010 Available to backorder	Nut	£0.90 £0.75
38	EF66070887R Available to backorder	Wheel Cover	£9.14 £7.62
39	EF3035023R Available to backorder	Bearing	£15.84 £13.20
40	EF66070722R Available to backorder	Wheel Kit	£23.22 £19.35
41	EF66070884R Available to backorder	Wheel Cover	£6.12 £5.10
42	EF66070904 Available to backorder	Grassbag Kit	£123.50 £102.92
43	EF66070875R Available to backorder	Grassbag	£79.66 £66.38
44	EF66070133R Available to backorder	Support	£8.74 £7.28
45	EF66072047R Available to backorder	Frame	£60.56 £50.47
46	EF66070521R Available to backorder	Shutter	£8.74 £7.28
48	EF66070466R Available to backorder	Lock	£9.22 £7.68
49	EF54030031 Available to backorder	Battery	£180.82 £150.68
50	EF54030007 Available to backorder	Battery Charger	£54.84 £45.70
52	EF66070913R Available to backorder	Knob	£9.32 £7.77
53	EF8203374R Available to backorder	Spring	£10.08 £8.40
55	EF3027001R Available to backorder	Washer	£0.90 £0.75
58	EF3806049 Available to backorder	Screw	£1.84 £1.53
59	EF3914006R Available to backorder	Nut	£0.90 £0.75
60	EF66070291R Available to backorder	Sector	£14.70 £12.25
61	EF66070523R Available to backorder	Cover	£8.08 £6.73
62	EF66110689AR Available to backorder	Shutter	£27.66 £23.05
63	EF66070493R Available to backorder	Spring	£12.16 £10.13
64	EF66070804R Available to backorder	Support	£11.84 £9.87
65	EF66071060R Available to backorder	Pin	£4.10 £3.42
67	EF66070836R Available to backorder	Pin	£2.92 £2.43
68	EF66070802R Available to backorder	Spring	£6.96 £5.80
69	EF66070803R Available to backorder	Lock	£3.82 £3.18
70	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
71	EF66110513R Available to backorder	Deflector	£37.52 £31.27
72	EF66070756 Available to backorder	Wheel Cover	£11.10 £9.25
73	EF66070975 Available to backorder	Lever Group	£40.92 £34.10
74	EF66070233A Available to backorder	Guard Kit	£15.28 £12.73
75	EF66070228AR Available to backorder	Support	£2.16 £1.80
76	EF3960137R Available to backorder	Screw	£2.82 £2.35
77	EF66110845 Available to backorder	Guard	£9.10 £7.58
78	EF66030037R Available to backorder	Belt	£22.52 £18.77
79	EF66070017ER Available to backorder	Transmission	£153.84 £128.20
80	EF3022020R Available to backorder	Plug	£1.19 £0.99
81	EF66071084R Available to backorder	Pulley	£16.27 £13.56
82	EF66070980R Available to backorder	Spring	£6.08 £5.07
83	EF66060010R Available to backorder	Roller	£0.98 £0.82
84	EF8202311R Available to backorder	Ring	£1.38 £1.15
85	EF66060030R Available to backorder	Bushing	£3.68 £3.07
86	EF3064004AR Available to backorder	Washer	£1.84 £1.53
87	EF3024012R In stock	Seeger	£1.28 £1.07
88	EF66070436R Available to backorder	Right Sprocket	£17.22 £14.35
89	EF66030038 Available to backorder	Grommet	£0.90 £0.75
90	EF66060058CR Available to backorder	Traction Cable	£30.78 £25.65
93	EF3032018R Available to backorder	Rivet	£0.56 £0.47
94	EF3045033R Available to backorder	Ring	£2.76 £2.30
96	EF66110828R Available to backorder	Mulching Cap	£41.66 £34.72
