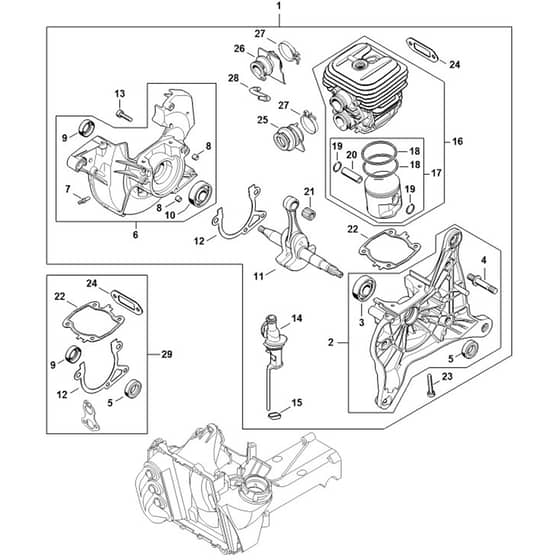

Genuine Stihl TS420 / C - Engine

Genuine Stihl TS420 / C - Engine
Genuine Stihl TS420 / C - Engine

Description

Genuine Stihl TS420 / C - Engine
Ref. Img. Part No. Details
  2 Crankcase Half (Drive End)
Crankcase Half (Drive End)
ST4238 020 2909
In stock
Crankcase Half (Drive End)
£183.72 £153.10

  2 Crankcase Half (Drive End)
Crankcase Half (Drive End)
6908
Out of stock
Crankcase Half (Drive End)
£131.04 £109.20

  3 Grooved Ball Bearing Din625-15x36.3x11
Grooved Ball Bearing Din625-15x36.3x11
ST9503 003 0360
In stock
Grooved Ball Bearing Din625-15x36.3x11
£15.84 £13.20

  3 Crankshaft Bearing
Crankshaft Bearing
3847-1
In stock
Crankshaft Bearing
£9.36 £7.80

  4 Crankcase Stud
Crankcase Stud
ST0000 953 6610
Available to backorder
Crankcase Stud
£3.40 £2.83

  4 Bar Collar Stud
Bar Collar Stud
7199
In stock
Bar Collar Stud
£4.02 £3.35

  5 Oil Seal 15x26x7
Oil Seal 15x26x7
ST9630 951 1696
In stock
Oil Seal 15x26x7
£12.88 £10.73

  6 Crankcase Half (Fan Side)
Crankcase Half (Fan Side)
ST4238 020 2613
In stock
Crankcase Half (Fan Side)
£178.20 £148.50

  6 Crankcase Half (Fan Side)
Crankcase Half (Fan Side)
6907
Out of stock
Crankcase Half (Fan Side)
£131.04 £109.20

  7 Connector
Connector
ST0000 988 5211
In stock
Connector
£1.88 £1.57

  8 Sleeve
Sleeve
ST0000 988 8600
In stock
Sleeve
£1.10 £0.92

  9 Oil Seal 15x24x7
Oil Seal 15x24x7
ST9640 003 1570
In stock
Oil Seal 15x24x7
£6.50 £5.42

  10 Crankshaft Bearing
Crankshaft Bearing
ST9503 003 0361
In stock
Crankshaft Bearing
£15.18 £12.65

  11 Crankshaft
Crankshaft
ST4238 030 0400
Available to backorder
Crankshaft
£273.48 £227.90

  11 Crankshaft
Crankshaft
3845
In stock
Crankshaft
£43.50 £36.25

  12 Gasket
Gasket
ST4238 029 0500
In stock
Gasket
£1.42 £1.18

  13 Bolt
Bolt
ST9022 371 1050
In stock
Bolt
£1.00 £0.83

  14 Hose
Hose
ST4238 141 5400
In stock
Hose
£2.86 £2.38

  15 Sleeve
Sleeve
ST4238 141 1800
Available to backorder
Sleeve
£1.10 £0.92

  16 Cylinder & Piston Assy (50mm Bore)
Cylinder & Piston Assy (50mm Bore)
ST4238 020 1209
In stock
Cylinder & Piston Assy (50mm Bore)
£190.92 £159.10

  16 Cylinder & Piston Assembly (50mm Bore)
Cylinder & Piston Assembly (50mm Bore)
6034
In stock
Cylinder & Piston Assembly (50mm Bore)
£33.59 £27.99

  16 Cylinder & Piston Assembly (50mm Bore)
Cylinder & Piston Assembly (50mm Bore)
6570
In stock
Cylinder & Piston Assembly (50mm Bore)
£80.75 £67.29

  17 Piston
Piston
ST4238 030 2008
Available to backorder
Piston
£129.12 £107.60

  18 Piston Ring
Piston Ring
ST4238 034 3000
Available to backorder
Piston Ring
£11.00 £9.17

  19 Snap Ring 10
Snap Ring 10
ST9463 650 1000
In stock
Snap Ring 10
£0.72 £0.60

  20 Piston Pin 10x6x32
Piston Pin 10x6x32
ST4238 034 1500
In stock
Piston Pin 10x6x32
£7.04 £5.87

  21 Small End Bearing
Small End Bearing
ST9512 003 2344
In stock
Small End Bearing
£8.02 £6.68

  21 Small End Bearing
Small End Bearing
3257
In stock
Small End Bearing
£2.47 £2.06

  22 Cylinder Gasket
Cylinder Gasket
ST4238 029 2300
In stock
Cylinder Gasket
£3.08 £2.57

  23 Spline Screw Is-M5x32
Spline Screw Is-M5x32
ST9022 371 1073
In stock
Spline Screw Is-M5x32
£1.00 £0.83

  24 Muffler Gasket
Muffler Gasket
ST4238 149 0600
In stock
Muffler Gasket
£2.08 £1.73

  25 Manifold
Manifold
ST4238 141 2203
In stock
Manifold
£10.86 £9.05

  25 Carburettor Manifold
Carburettor Manifold
7547
In stock
Carburettor Manifold
£14.76 £12.30

  26 Manifold
Manifold
ST4238 141 2202
Available to backorder
Manifold
£37.96 £31.63

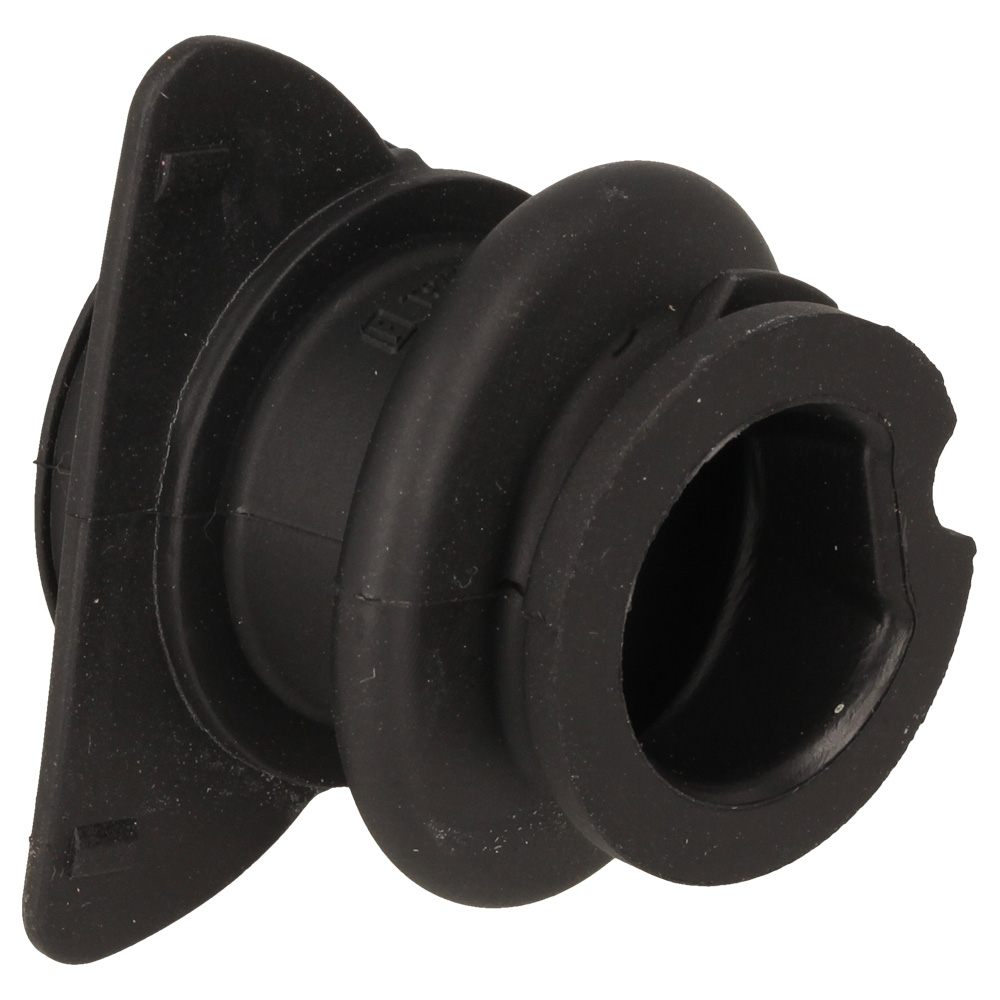

  26 Upper Manifold
Upper Manifold
6867
In stock
Upper Manifold
£14.04 £11.70

  27 Hose Clip 30x5
Hose Clip 30x5
ST9771 021 2536
Available to backorder
Hose Clip 30x5
£2.08 £1.73

  28 Impulse Hose
Impulse Hose
ST0000 141 8600
In stock
Impulse Hose
£3.20 £2.67

  29 Set Of Gaskets
Set Of Gaskets
ST4238 007 1003
In stock
Set Of Gaskets
£20.24 £16.87

  29 Gasket Set
Gasket Set
2489-1
Out of stock
Gasket Set
£4.20 £3.50

  29 Gasket Set C/W Oil Seals
Gasket Set C/W Oil Seals
2489
In stock
Gasket Set C/W Oil Seals
£8.04 £6.70

  29 Gasket Set C/W Gen Oil Seals
Gasket Set C/W Gen Oil Seals
2489-2
In stock
Gasket Set C/W Gen Oil Seals
£27.42 £22.85
