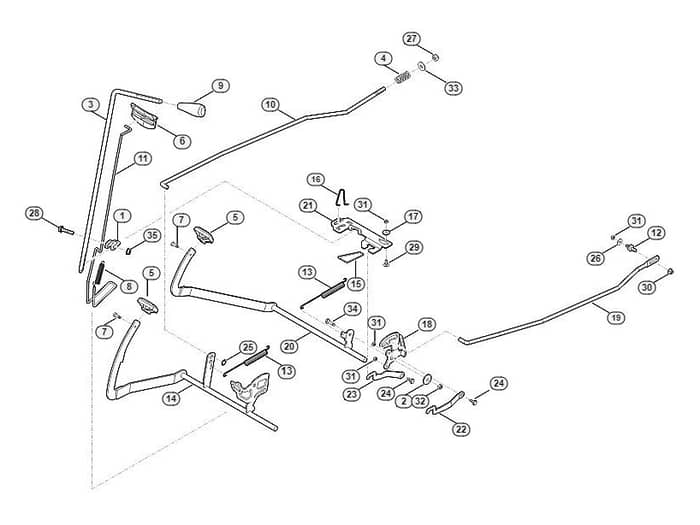

Genuine Stihl RT5097.0 C / J - Brake, Parking brake, Control lever

Name: Genuine Stihl RT5097.0 C / J - Brake, Parking brake, Control lever
SKU: RT5097.0_C_J-group
Price: 0.28 GBP
Availability: InStock

Part No. RT5097.0_C_J-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl RT5097.0 C / J - Brake, Parking brake, Control lever

Description

Genuine Stihl RT5097.0 C / J - Brake, Parking brake, Control lever

	Part No.	Details
1	ST6170 162 5010 Available to backorder	Lever	£3.77 £3.14
2	ST6170 162 8900 Available to backorder	Washer	£3.64 £3.03
3	ST6170 764 3400 Available to backorder	Switch Rod	£58.61 £48.84
4	ST6170 703 6410 Available to backorder	Compression Spring	£3.19 £2.66
5	ST6170 704 7100 Available to backorder	Pedal Rubber	£4.45 £3.71
7	ST9039 488 1287 Available to backorder	Self-Tapping Screw M6x22 ((5 - 7 Nm))	£1.03 £0.86
8	ST6170 703 5140 Available to backorder	Tension Spring	£1.94 £1.62
9	ST6170 703 6625 Available to backorder	Knob	£13.43 £11.19
10	ST6165 703 1710 Available to backorder	Rod	£54.29 £45.24
11	ST6165 763 0400 Available to backorder	Bow	£19.69 £16.41
12	ST6165 704 1800 Available to backorder	Bolt	£3.52 £2.93
13	ST6165 703 5110 Available to backorder	Tension Spring	£5.36 £4.47
14	ST6165 760 5700 Available to backorder	Pedal	£83.04 £69.20
15	ST6165 763 0410 Available to backorder	Bow	£2.83 £2.36
16	ST6165 708 0300 Available to backorder	Spring Clip	£2.40 £2.00
17	ST6165 764 2700 Available to backorder	Flange Sleeve	£3.19 £2.66
18	ST6165 764 3500 Available to backorder	Lever	£24.68 £20.57
19	ST6165 704 9800 Available to backorder	Rod	£51.31 £42.76
20	ST6165 760 5710 Available to backorder	Pedal	£70.44 £58.70
21	ST6165 704 3000 Available to backorder	Gear Shifting Gate	£47.34 £39.45
22	ST6165 764 1500 Available to backorder	Locking Lever. Upper	£17.75 £14.79
23	ST6165 764 1505 Available to backorder	Locking Lever. Lower	£17.98 £14.98
24	ST6165 764 3600 Available to backorder	Collar Bolt ((8 - 10 Nm))	£2.05 £1.71
25	ST9991 003 0550 Available to backorder	Clamping Ring 10x2	£1.72 £1.43
26	ST9307 021 0140 In stock	Washer 6.4	£0.34 £0.28
27	ST9212 263 1300 Available to backorder	Hexagon Nut M10	£0.91 £0.76
28	ST9018 318 1880 Available to backorder	Hexagon Head Screw M8x35 ((19 - 21 Nm))	£1.46 £1.22
29	ST9027 068 1280 Available to backorder	Flat Head Screw M6x16	£0.91 £0.76
30	ST9216 261 1100 In stock	Hexagon Nut M8	£0.79 £0.66
31	ST9212 260 0900 In stock	Hexagon Nut M6	£0.48 £0.40
32	ST9212 260 1100 In stock	Hexagon Nut M8	£0.72 £0.60
34	ST9008 318 1830 Available to backorder	Hexagon Head Screw M8x25 ((21 - 25 Nm))	£1.26 £1.05
35	ST9220 263 1100 Available to backorder	Hexagon Nut M8	£0.79 £0.66
