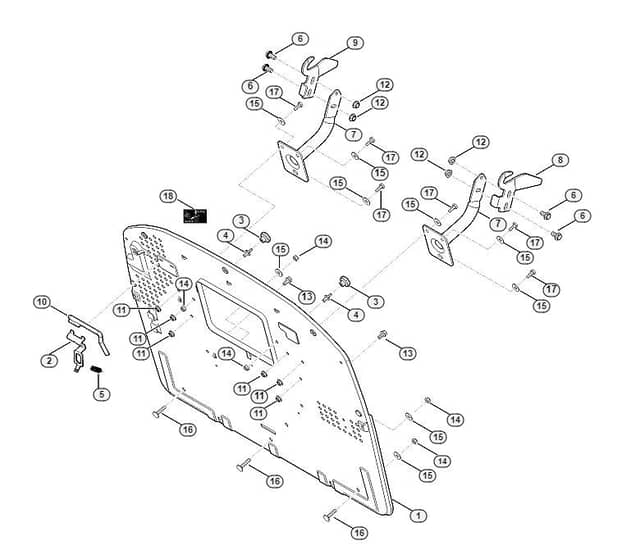

Genuine Stihl RT5097.0 C / G - Back panel

Genuine Stihl RT5097.0 C / G - Back panel

Part No. RT5097.0_C_G-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl RT5097.0 C / G - Back panel

Genuine Stihl RT5097.0 C / G - Back panel

Description

Genuine Stihl RT5097.0 C / G - Back panel

Ref.		Img.	Part No.	Details
	1		ST6170 763 1120 Available to backorder	Back Panel		£235.92 £196.60
	2		ST6170 435 6100 Available to backorder	Sheet Metal Holder		£15.71 £13.09
	3		ST6170 760 1800 Available to backorder	Rotary Handle		£3.77 £3.14
	4		ST6170 763 2310 Available to backorder	Detent Bolt		£3.08 £2.57
	5		ST6170 703 5130 Available to backorder	Tension Spring		£1.60 £1.33
	6		ST9018 318 2361 Available to backorder	Hexagon Head Screw M10x20 ((28 - 32 Nm))		£1.26 £1.05
	7		ST6170 700 6801 Available to backorder	Support		£46.32 £38.60
	8		ST6170 763 5902 Available to backorder	Guide Plate. Left		£34.24 £28.53
	9		ST6170 763 5907 Available to backorder	Guide Plate. Right		£33.56 £27.97
	11		ST9220 263 1100 Available to backorder	Hexagon Nut M8		£0.79 £0.66
	12		ST9220 260 8506 Available to backorder	Hexagon Nut M10		£0.91 £0.76
	13		ST9039 488 1782 Available to backorder	Self-Tapping Screw M8x16		£1.03 £0.86
	14		ST9212 260 1100 In stock	Hexagon Nut M8		£0.72 £0.60
	15		ST9307 021 0180 Available to backorder	Washer 8.4		£0.35 £0.29
	16		ST9027 068 1880 Available to backorder	Flat Head Screw M8x35 ((13 - 17 Nm))		£1.46 £1.22
	17		ST9008 318 1800 Available to backorder	Hexagon Head Screw M8x20 ((13 - 17 Nm))		£1.03 £0.86
