Genuine Stihl RT4097.0 SX / H - Gearbox, rear wheel, blade clutch

Name: Genuine Stihl RT4097.0 SX / H - Gearbox, rear wheel, blade clutch
SKU: RT4097.0_SX_H-group
Price: 0.29 GBP
Availability: InStock

Part No. RT4097.0_SX_H-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

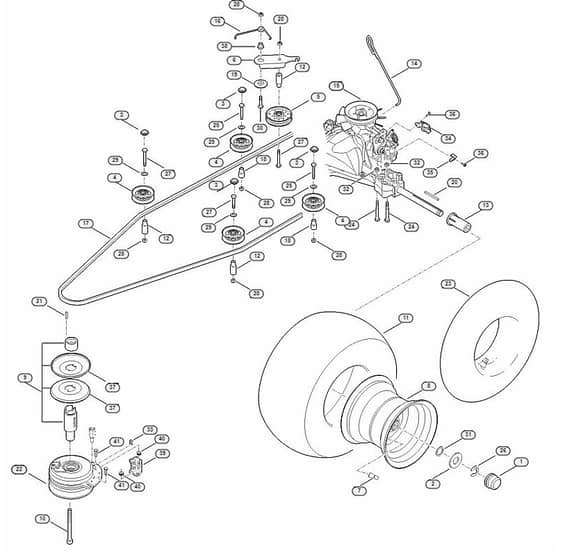

Genuine Stihl RT4097.0 SX / H - Gearbox, rear wheel, blade clutch

Description

Genuine Stihl RT4097.0 SX / H - Gearbox, rear wheel, blade clutch

	Part No.	Details
1	ST6170 708 7420 Available to backorder	Cap	£4.45 £3.71
0	ST6170 700 0435 Available to backorder	Wheel Assy. 18" (Replace As A Pair. Check Mowing Deck Adjustment Following Replacement)	£147.36 £122.80
2	ST6170 763 0910 Available to backorder	Washer 42	£4.88 £4.07
6	ST6170 704 2200 Available to backorder	Bolt Lever	£16.97 £14.14
7	ST0000 731 7700 Available to backorder	Valve	£7.97 £6.64
8	ST6170 760 3920 Available to backorder	Rim 8.5-8	£103.92 £86.60
10	ST9045 348 9050 Available to backorder	Pan Head Screw 7/16"x4.5" (Glue On (Loctite 243).(65 - 70 Nm))	£4.20 £3.50
11	ST6170 704 9525 Available to backorder	Tyre 18x8.5-8 (Replace As A Pair. Check Mowing Deck Adjustment Following Replacement)	£116.64 £97.20
13	ST6165 764 2800 Available to backorder	Distance Sleeve	£10.14 £8.45
14	ST6165 643 0100 Available to backorder	Lever	£21.95 £18.29
15	ST6165 640 0100 Available to backorder	Gear Box T2-Chbf-2x3C-17x1	£807.05 £672.54
19	ST6170 703 1920 Available to backorder	Collar Bearing	£3.86 £3.22
20	ST9471 435 1622 Available to backorder	Key 3/16"Sqx21/4"	£2.51 £2.09
21	ST9471 435 1602 Available to backorder	Key B1/4"Sqx1"	£2.40 £2.00
22	ST6170 160 2010 Available to backorder	Blade Clutch	£273.24 £227.70
23	ST0000 704 6703 Available to backorder	Hose 20x10.0 - 8	£39.71 £33.09
25	ST9008 319 1950 Available to backorder	Hexagon Head Screw M8x50 ((21 - 25 Nm))	£1.82 £1.52
26	ST9460 624 1500 Available to backorder	E-Clip 15	£0.46 £0.38
27	ST9008 319 1970 Available to backorder	Hexagon Head Screw M8x60 ((21 - 25 Nm))	£2.05 £1.71
28	ST9212 260 1100 In stock	Hexagon Nut M8	£0.72 £0.60
29	ST9291 020 0180 Available to backorder	Washer 8.4	£0.35 £0.29
30	ST9007 318 1880 Available to backorder	Hexagon Head Screw M8x35	£1.46 £1.22
31	ST9296 021 1657 Available to backorder	Washer 19x26x1.5	£0.68 £0.57
32	ST9216 261 1100 In stock	Hexagon Nut M8	£0.79 £0.66
33	ST6140 162 4500 Available to backorder	Clip	£2.05 £1.71
34	ST6170 403 2310 Available to backorder	Support	£4.45 £3.71
35	ST6170 647 1100 Available to backorder	Angle Piece	£1.72 £1.43
36	ST9039 488 0958 In stock	Self-Tapping Screw M5x10	£0.83 £0.69
