Genuine Stihl RT4097.0 SX / A - Frame

Name: Genuine Stihl RT4097.0 SX / A - Frame
SKU: RT4097.0_SX_A-group
Price: 0.28 GBP
Availability: InStock

Part No. RT4097.0_SX_A-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

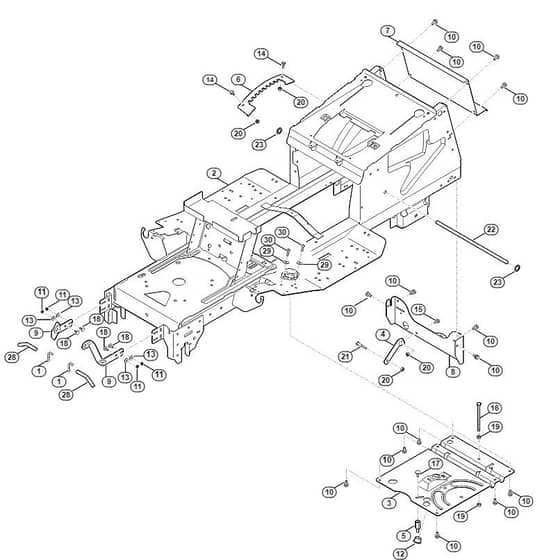

Genuine Stihl RT4097.0 SX / A - Frame

	Part No.	Details
1	ST6170 763 1000 Available to backorder	Spring Clip 2.8	£2.51 £2.09
3	ST6165 703 8910 Available to backorder	Plate	£133.08 £110.90
4	ST6165 704 2700 Available to backorder	Support	£9.23 £7.69
5	ST6165 704 1810 Available to backorder	Bolt	£4.45 £3.71
6	ST6165 703 9500 Available to backorder	Notched Plate	£33.35 £27.79
7	ST6165 763 1100 Available to backorder	Back Panel	£85.20 £71.00
8	ST6165 763 1105 Available to backorder	Rear Panel. Lower	£77.04 £64.20
9	ST6170 007 1002 Available to backorder	Hinge Set	£45.74 £38.12
10	ST9039 488 1782 Available to backorder	Self-Tapping Screw M8x16 ((13 - 17 Nm))	£1.03 £0.86
11	ST9214 261 0900 Available to backorder	Lock Nut M6	£0.46 £0.38
12	ST9533 003 9246 Available to backorder	Flange Sleeve	£7.51 £6.26
13	ST9307 021 0140 In stock	Washer 6.4	£0.34 £0.28
14	ST9008 318 1780 Available to backorder	Hexagon Head Screw M8x16 ((21 - 25 Nm))	£1.03 £0.86
15	ST9008 318 1280 Available to backorder	Hexagon Head Screw M6x16	£0.91 £0.76
16	ST9008 319 2080 Available to backorder	Hexagon Head Screw M8x130 ((21 - 25 Nm))	£3.64 £3.03
17	ST9027 318 1820 Available to backorder	Flat Head Screw M8x20	£1.03 £0.86
18	ST9027 068 1280 Available to backorder	Flat Head Screw M6x16 ((5 - 7 Nm))	£0.91 £0.76
19	ST9210 259 1100 Available to backorder	Hexagon Nut M8	£0.68 £0.57
20	ST9212 260 1100 In stock	Hexagon Nut M8	£0.72 £0.60
21	ST9007 318 1930 Available to backorder	Hexagon Head Screw M8x45 ((21 - 25 Nm))	£1.60 £1.33
22	ST6165 763 3800 Available to backorder	Support	£8.98 £7.48
23	ST9991 003 1125 Available to backorder	Quick-Fixing Device	£1.72 £1.43
28	ST6170 763 6300 Available to backorder	Socket Bolt	£5.36 £4.47
29	ST9307 010 0140 Available to backorder	Washer 6.4	£0.35 £0.29
30	ST9039 488 1287 Available to backorder	Self-Tapping Screw M6x22	£1.03 £0.86
