Genuine Stihl RG-KM / A - Spare parts RG-KM

Name: Genuine Stihl RG-KM / A - Spare parts RG-KM
SKU: RG-KM_A-group
Price: 0.6 GBP
Availability: InStock

Part No. RG-KM_A-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl RG-KM / A - Spare parts RG-KM

Description

Genuine Stihl RG-KM / A - Spare parts RG-KM

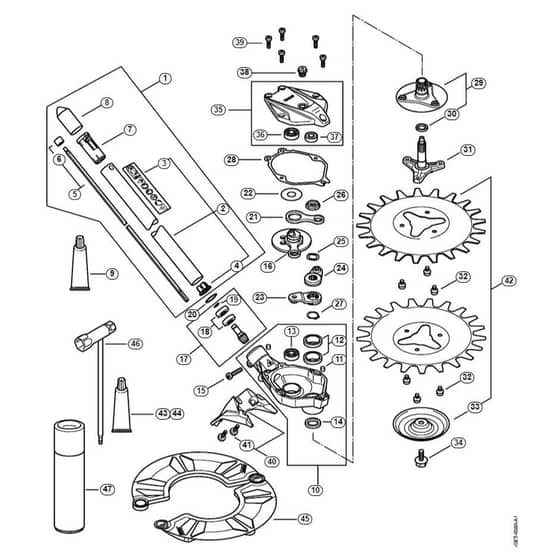

	Part No.	Details
1	ST4180 710 7150 Available to backorder	Drive tube assembly Ø 25,4 mm (2-7)	£63.84 £53.20
2	ST4180 710 7152 Available to backorder	Drive tube assembly Ø 25,4 mm (3,4)	£48.02 £40.02
3	ST4180 967 7200 Available to backorder	Warning pictogram RG-KM	£2.15 £1.79
4	ST4137 711 2101 In stock	Plug	£0.83 £0.69
5	ST4140 710 3225 In stock	Drive Shaft	£49.39 £41.16
6	ST4140 711 2500 In stock	Sleeve	£2.23 £1.86
7	ST4140 791 7207 In stock	Sleeve	£4.36 £3.63
8	ST4133 717 2000 In stock	Cap	£2.36 £1.97
9	ST0781 120 1109 In stock	Multi-purpose grease	£9.02 £7.52
10	ST4180 640 0500 Available to backorder	Gear housing	£82.56 £68.80
11	ST0000 988 8600 In stock	Sleeve	£1.19 £0.99
12	ST9503 003 4937 Available to backorder	Grooved ball bearing DIN625-61804-ZZ	£11.28 £9.40
13	ST9503 003 0061 Available to backorder	Grooved ball bearing DIN625-629-C3	£11.83 £9.86
14	ST9630 003 3195 Available to backorder	Oil seal 28x22x4	£9.79 £8.16
15	ST9022 341 1358 Available to backorder	Spline Screw Is-M6x28 ((12 Nm))	£1.03 £0.86
16	ST4180 640 1600 Available to backorder	Cam	£68.76 £57.30
17	ST4180 640 2503 Available to backorder	Drive pinion	£21.26 £17.72
18	ST9503 003 9853 Available to backorder	Grooved Ball Bearing 609-2Z	£12.40 £10.33
19	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
20	ST9456 621 2660 In stock	Circlip 24x1.2	£1.08 £0.90
21	ST4180 642 6500 Available to backorder	Connecting rod	£23.32 £19.43
22	ST4180 642 8700 Available to backorder	Thrust washer	£1.60 £1.33
23	ST4180 643 0100 Available to backorder	Lever	£30.14 £25.12
24	ST4180 643 0101 Available to backorder	Lever	£30.14 £25.12
26	ST0000 995 0807 Available to backorder	Nut	£2.63 £2.19
28	ST4180 649 0300 Available to backorder	Gasket	£1.37 £1.14
29	ST4180 740 6400 Available to backorder	Hub	£38.00 £31.67
30	ST9630 003 2400 Available to backorder	Oil seal 21x15x3 V3 RG	£6.72 £5.60
31	ST4180 713 4802 Available to backorder	Hub, bottom	£35.51 £29.59

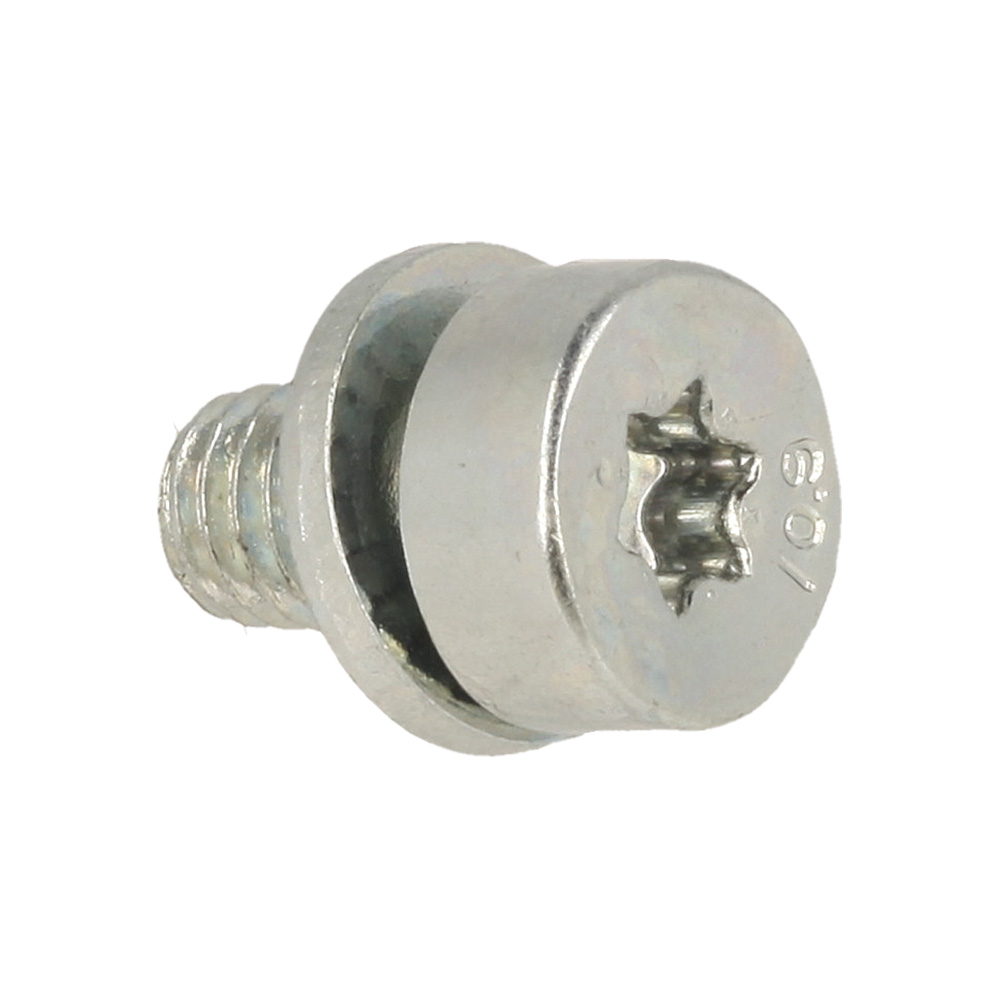

32	ST9022 341 1251 Available to backorder	Spline screw IS-M6x10-Z1	£0.79 £0.66
33	ST4180 713 3101 Available to backorder	Rider plate	£8.29 £6.91
34	ST0000 951 0901 Available to backorder	Hexagon Head Screw M8x20 Left ((12 Nm))	£5.36 £4.47
35	ST4180 640 5800 Available to backorder	Gearbox cover	£52.68 £43.90
37	ST9503 003 9673 Available to backorder	Grooved ball bearing DIN625-608-ZZ	£12.06 £10.05
38	ST4119 713 6500 In stock	Screw Plug ((6 Nm))	£3.31 £2.76
39	ST9022 341 1010 In stock	Spline Screw Is-M5x18 ((6 Nm))	£0.95 £0.79
40	ST4180 820 1000 Available to backorder	Support foot	£14.92 £12.43
41	ST9022 319 0981 In stock	Screw Is-M5x17 ((4 Nm))	£0.95 £0.79
42	ST4180 007 4100 Available to backorder	Servicing kit RG / RG-KM	£80.28 £66.90
43	ST0781 120 1118 In stock	Gear Lubricant 225 G	£21.96 £18.30
44	ST0781 120 1117 In stock	Gearbox grease (80g tube)	£9.02 £7.52
45	ST0000 790 3901 Available to backorder	Transport Guard	£29.94 £24.95
46	ST4180 890 3400 Available to backorder	Combination wrench	£9.34 £7.78
47	ST0782 516 8101 In stock	Resin Solvent 300 Ml	£19.15 £15.96
