Genuine Stihl MS441 C-M / Q - Carburetor HD-49, HD-47

Name: Genuine Stihl MS441 C-M / Q - Carburetor HD-49, HD-47
SKU: MS441_C-M_Q-group
Price: 1.14 GBP
Availability: InStock

Part No. MS441_C-M_Q-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

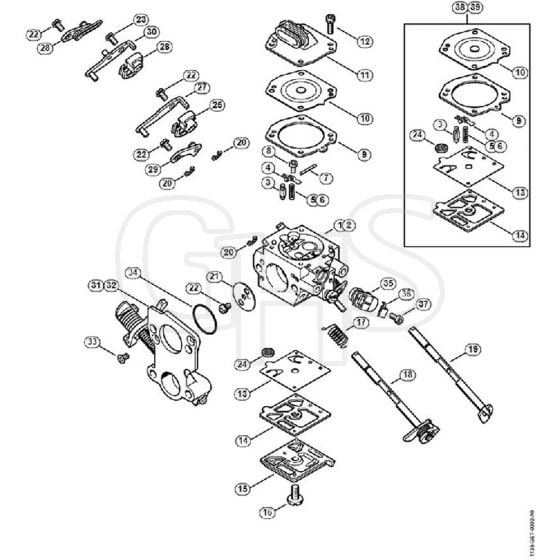

Genuine Stihl MS441 C-M / Q - Carburetor HD-49, HD-47

Description

Genuine Stihl MS441 C-M / Q - Carburetor HD-49, HD-47

	Part No.	Details
1	ST1138 120 0625 Available to backorder	Carburettor HD-49F (Contains Items 3 - 5, 7 - 18, 20 - 25, 27, 28, 33 - 37)	£219.60 £183.00
2	ST1138 007 1008 Available to backorder	Carburettor HD-47A (Contains Items 3, 4, 6 - 17, 19 - 24, 26, 28, 30, 32 - 37)	£120.96 £100.80
3	ST4116 121 5100 Available to backorder	Inlet Needle	£11.15 £9.29
4	ST4116 121 5000 Available to backorder	Inlet Control Lever	£3.31 £2.76
6	ST1128 122 3002 Available to backorder	Spring	£2.40 £2.00
7	ST1113 121 9200 Available to backorder	Spindle	£1.37 £1.14
8	ST1114 122 7400 Available to backorder	Round Head Screw	£1.37 £1.14
9	ST1128 129 0906 Available to backorder	Gasket	£2.28 £1.90
10	ST4116 121 4700 Available to backorder	Metering Diaphragm	£15.48 £12.90
11	ST1128 121 0801 Available to backorder	End Cover	£17.75 £14.79
12	ST1138 122 7100 Available to backorder	Screw	£1.82 £1.52
13	ST4116 121 4800 Available to backorder	Pump Diaphragm	£15.48 £12.90
14	ST4116 129 0902 In stock	Gasket	£2.28 £1.90
15	ST4203 121 0800 Available to backorder	End Cover	£17.75 £14.79
16	ST1114 122 7100 Available to backorder	Screw	£2.63 £2.19
17	ST1138 122 3200 Available to backorder	Torsion Spring	£3.00 £2.50
18	ST1138 120 7202 Available to backorder	Choke Shaft With Lever	£21.17 £17.64
19	ST1138 120 7201 Available to backorder	Choke Shaft With Lever	£21.02 £17.52
20	ST1123 122 9000 Available to backorder	E-Clip	£2.15 £1.79
21	ST1138 121 2900 Available to backorder	Choke Shutter	£3.58 £2.98
22	ST1121 122 7102 Available to backorder	Round Head Screw	£3.19 £2.66
23	ST1115 122 7400 Available to backorder	Round Head Screw	£3.19 £2.66
24	ST1114 121 7800 Available to backorder	Strainer	£3.41 £2.84
25	ST1138 121 0000 Available to backorder	Throttle Cable Retainer	£2.63 £2.19
26	ST1138 121 0001 Available to backorder	Throttle Cable Retainer	£8.83 £7.36
27	ST1138 120 8300 Available to backorder	Lever	£3.08 £2.57
28	ST1138 120 8303 Available to backorder	Lever	£11.34 £9.45
29	ST1138 120 8301 Available to backorder	Lever	£5.57 £4.64
30	ST1138 120 8302 Available to backorder	Lever	£11.34 £9.45
31	ST1138 007 1004 Available to backorder	Air Valve Housing (Contains Items 33, 34)	£55.88 £46.57
32	ST1138 007 1060 Available to backorder	Air Valve Housing (Contains Items 33, 34)	£39.41 £32.84
33	ST1138 122 7900 Available to backorder	Countersunk Screw	£2.15 £1.79
34	ST1138 129 3000 Available to backorder	Sealing Ring	£6.14 £5.12
35	ST0000 120 5111 In stock	Solenoid Valve	£64.93 £54.11
36	ST0000 121 2300 Available to backorder	Support	£1.94 £1.62
37	ST0000 122 7102 Available to backorder	Screw	£1.72 £1.43
38	ST1138 007 1701 Available to backorder	Set of carburettor parts (Contains Items 3 - 5, 9, 10, 13, 14, 24)	£52.12 £43.43
39	ST1128 007 1066 Available to backorder	Set Of Carburettor Parts (Contains Items 3, 4, 6, 9, 10, 13, 14, 24)	£52.12 £43.43
