Genuine Stihl MS193 TC-E / A – Cylinder with piston, Ignition system

Name: Genuine Stihl MS193 TC-E / A – Cylinder with piston, Ignition system
SKU: MS193_TC-E_A-group
Price: 0.29 GBP
Availability: InStock

Part No. MS193_TC-E_A-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl MS193 TC-E / A – Cylinder with piston, Ignition system

Description

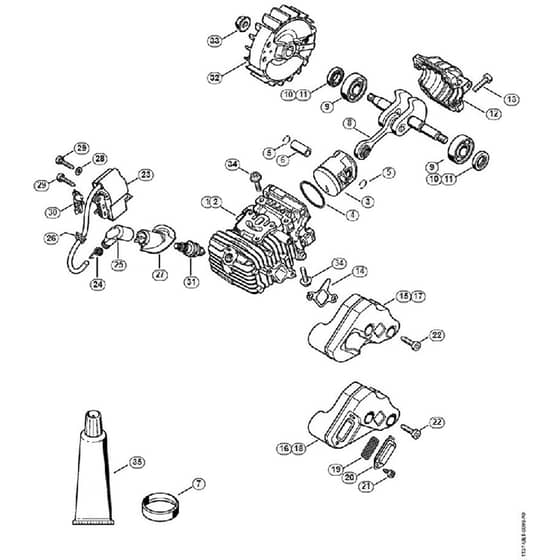

Genuine Stihl MS193 TC-E / A – Cylinder with piston, Ignition system

	Part No.	Details
1	ST1137 020 1207 Available to backorder	Cylinder with piston Ø 37 mm (Above Serial Number: 506550976)	£111.12 £92.60
3	ST1137 030 2007 Available to backorder	Piston Ø 37mm	£51.31 £42.76
4	ST1130 034 3007 Available to backorder	Piston Ring Ø 37X1.2mm	£6.25 £5.21
5	ST9463 650 1000 In stock	Snap Ring 10	£0.72 £0.60
6	ST1139 034 1500 Available to backorder	Piston Pin 10X6.5X23	£7.06 £5.88
7	ST1130 893 2601 Available to backorder	Clamping Strap	£0.35 £0.29
8	ST1137 030 0402 Available to backorder	Crankshaft	£81.96 £68.30
9	ST9503 003 0239 Available to backorder	Grooved Ball Bearing 6201	£14.80 £12.33
10	ST9639 003 1205 In stock	Oil Seal 12X22X4.5	£5.56 £4.63
11	ST9639 003 1206 Available to backorder	Oil Seal 12X22X4.5	£10.60 £8.83
12	ST1137 021 2503 Available to backorder	Engine Pan	£15.48 £12.90
13	ST9075 478 4136 In stock	Pan Head Self-Tapping Screw Is-D5X20	£0.95 £0.79
14	ST1137 149 0601 Available to backorder	Muffler Gasket	£1.94 £1.62
15	ST1137 140 0608 Available to backorder	Muffler (Above Serial Number: 506550976)	£29.46 £24.55
17	ST1137 140 0606 Available to backorder	Muffler	£33.12 £27.60
22	ST9022 341 0983 In stock	Spline Screw Is-M5X16	£0.95 £0.79
23	ST1137 400 1306 Available to backorder	Ignition Module	£52.57 £43.81
24	ST0000 998 0623 Available to backorder	Spark plug contact spring	£1.37 £1.14
25	ST0000 405 1007 In stock	Spark Plug Boot	£6.84 £5.70
26	ST0000 989 0507 Available to backorder	Grommet	£1.46 £1.22
27	ST1137 084 1603 Available to backorder	Cover	£2.74 £2.28
28	ST9291 021 0100 In stock	Washer 4.3	£0.53 £0.44
29	ST9075 478 3022 In stock	Pan Head Self-Tapping Screw Is-D4X20	£0.95 £0.79
30	ST1137 448 1205 Available to backorder	Lead Retainer	£2.63 £2.19
31	ST0000 400 7011 In stock	Spark plug NGK CMR6H	£4.38 £3.65
32	ST1137 400 1200 Available to backorder	Flywheel	£68.16 £56.80
33	ST0000 955 0802 In stock	Collar nut M8x1	£1.39 £1.16
34	ST0000 951 1100 In stock	Screw Is-D5X20	£1.66 £1.38
