Genuine Stihl MS 362 C-M Oil Pump and Clutch Diagram

Name: Genuine Stihl MS 362 C-M Oil Pump and Clutch Diagram
SKU: MS 362 C-M-C-group
Price: 0.29 GBP
Availability: InStock

Part No. MS 362 C-M-C-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

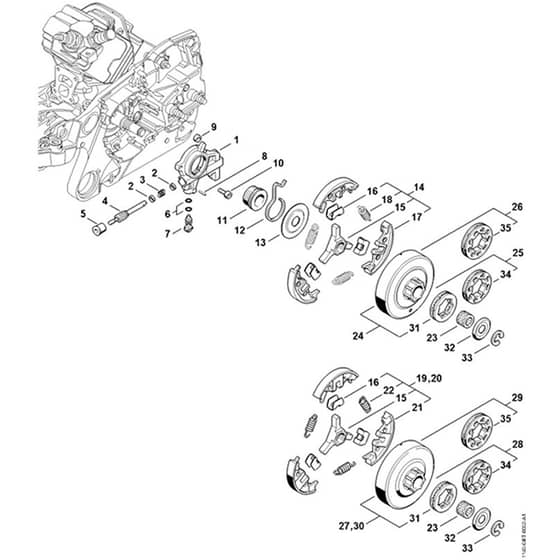

Genuine Stihl MS 362 C-M Oil Pump and Clutch Diagram

Description

Genuine Stihl MS 362 C-M-C-group

	Part No.	Details

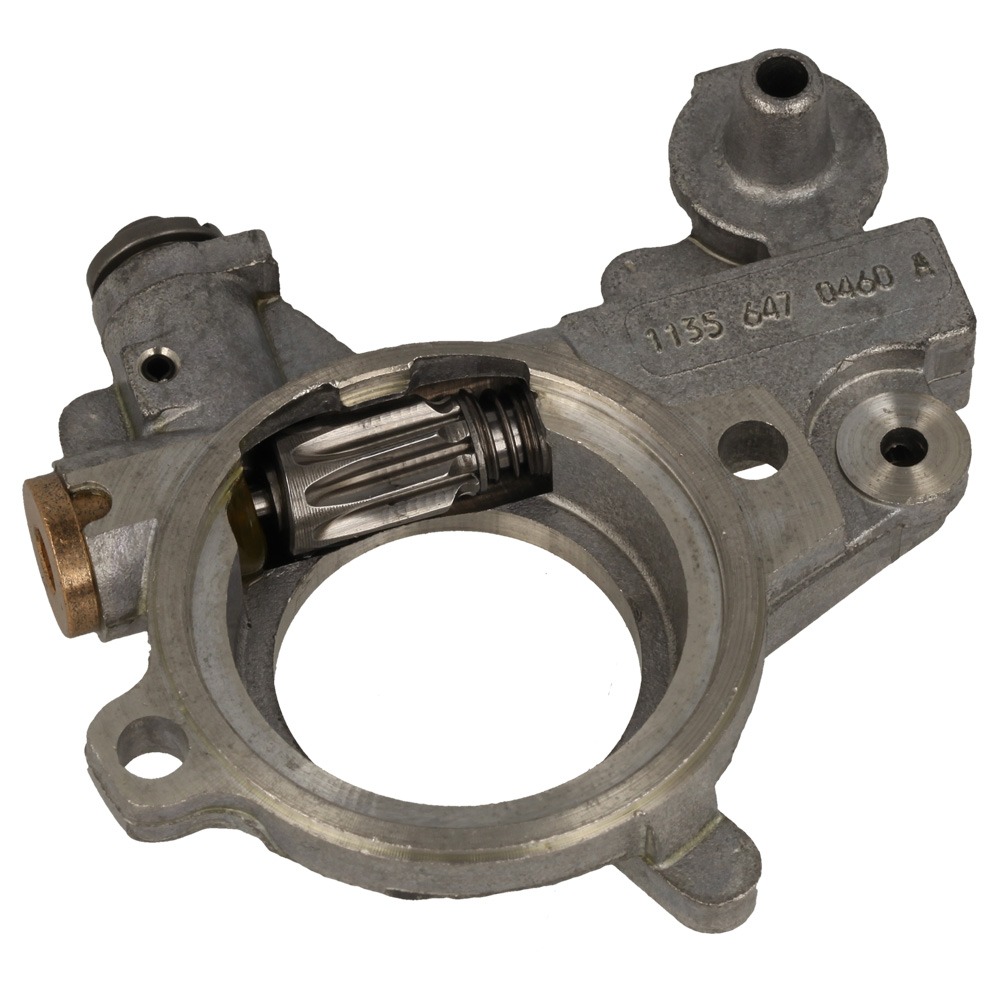

1	ST1135 640 3200 Available to backorder	Oil pump	£84.17 £70.14

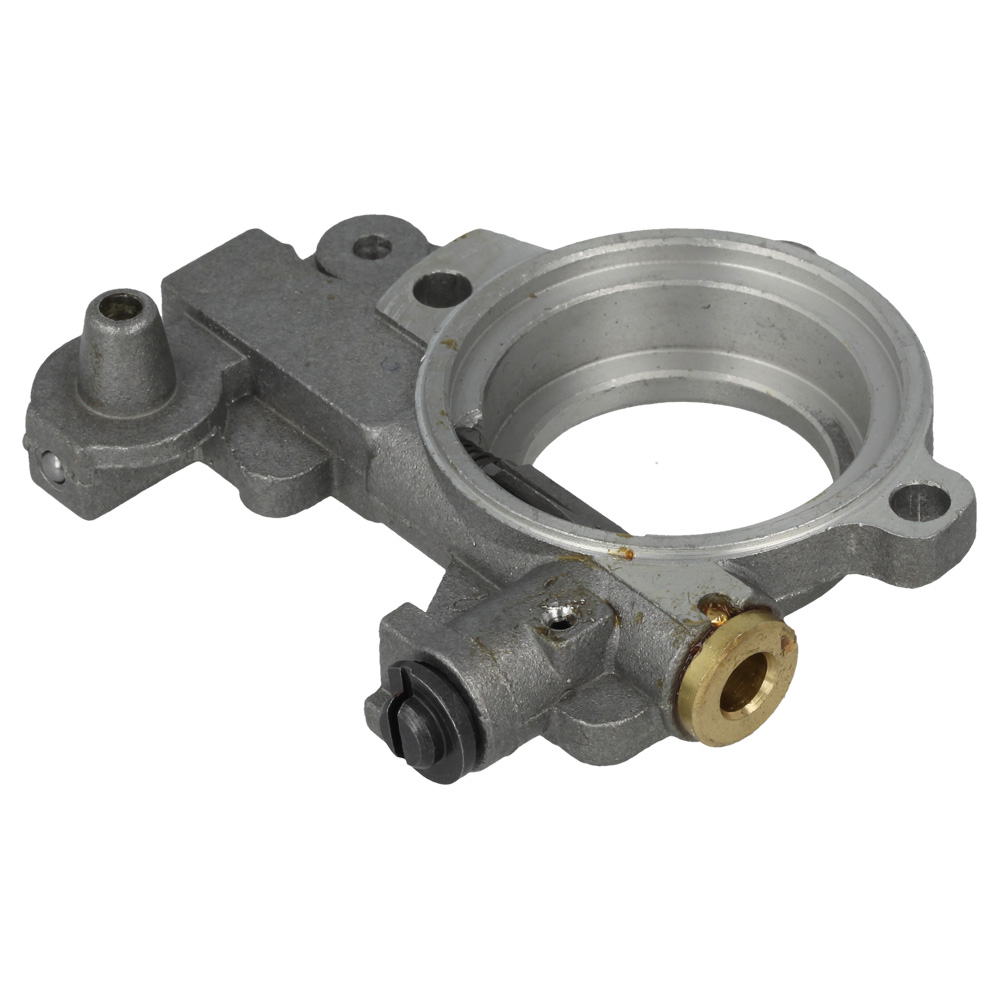

1	5627 In stock	Oil Pump	£22.56 £18.80
2	ST0000 958 0518 Available to backorder	Washer	£1.14 £0.95
3	ST0000 997 0615 Available to backorder	Compression spring	£1.14 £0.95
4	ST1135 647 0600 Available to backorder	Pump piston	£26.52 £22.10
5	ST1125 641 9400 Available to backorder	Bearing bushing	£4.68 £3.90
6	ST9646 945 0160 In stock	O-ring 4x2	£0.48 £0.40
7	ST1128 647 4806 Available to backorder	Control bolt	£1.82 £1.52
8	ST9380 620 1090 Available to backorder	Roll pin 2x10	£0.35 £0.29
9	ST1122 649 5000 In stock	Sealing ring B4x2	£0.95 £0.79
10	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.80 £0.67
11	ST1128 640 7112 In stock	Worm	£10.85 £9.04
12	ST1128 647 2400 In stock	Spring	£1.66 £1.38
13	ST1122 162 1000 In stock	Cover washer 52 mm	£2.94 £2.45
14	ST1147 160 2000 Available to backorder	Clutch	£43.46 £36.22
15	ST1128 162 3202 Available to backorder	Carrier	£8.29 £6.91
16	ST1128 162 3000 In stock	Retainer	£1.52 £1.27
17	ST1147 162 0800 Available to backorder	Clutch shoe	£7.28 £6.07
18	ST0000 997 5606 Available to backorder	Tension spring	£1.60 £1.33
19	ST1138 160 2010 Available to backorder	Clutch	£46.66 £38.88

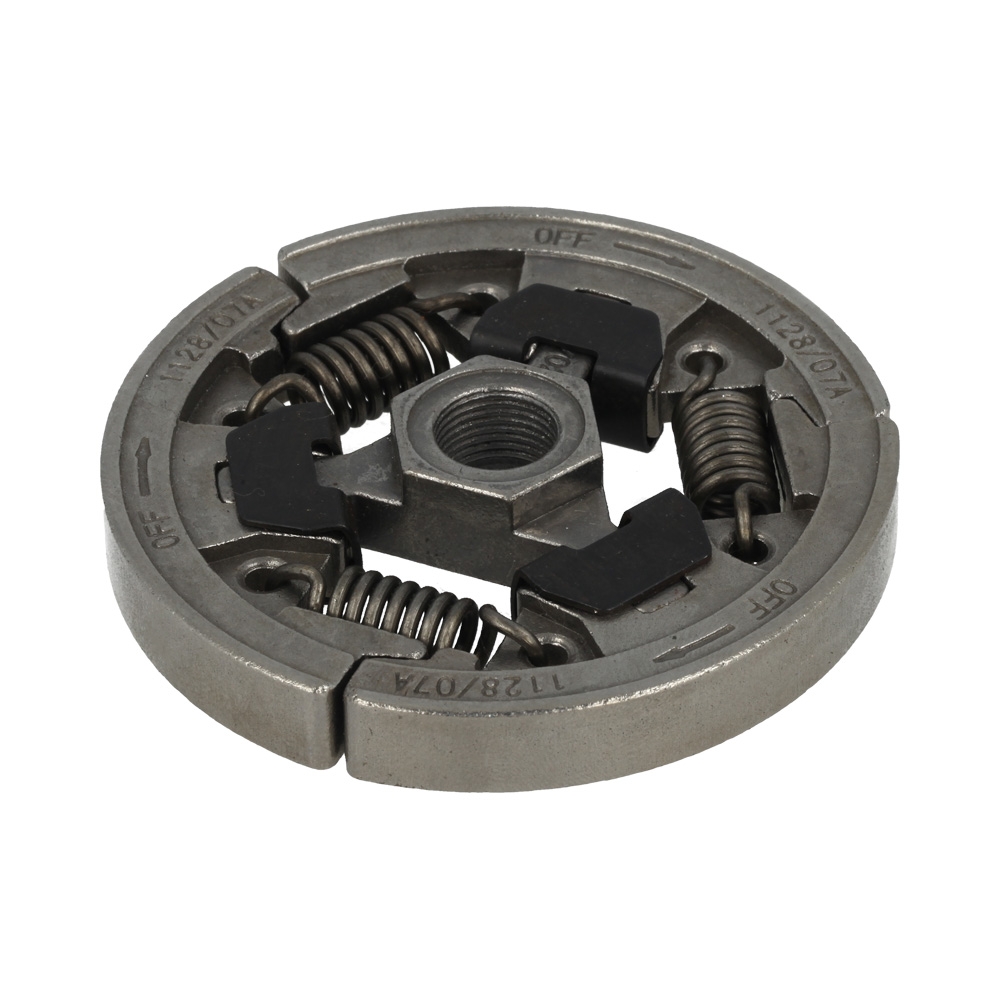

19	8330 In stock	Clutch	£8.04 £6.70
21	ST1138 162 0800 Available to backorder	Clutch shoe	£8.42 £7.02
22	ST0000 997 5816 Available to backorder	Tension spring	£1.72 £1.43
23	ST9512 933 2380 In stock	Needle cage 10x16x12	£9.80 £8.17

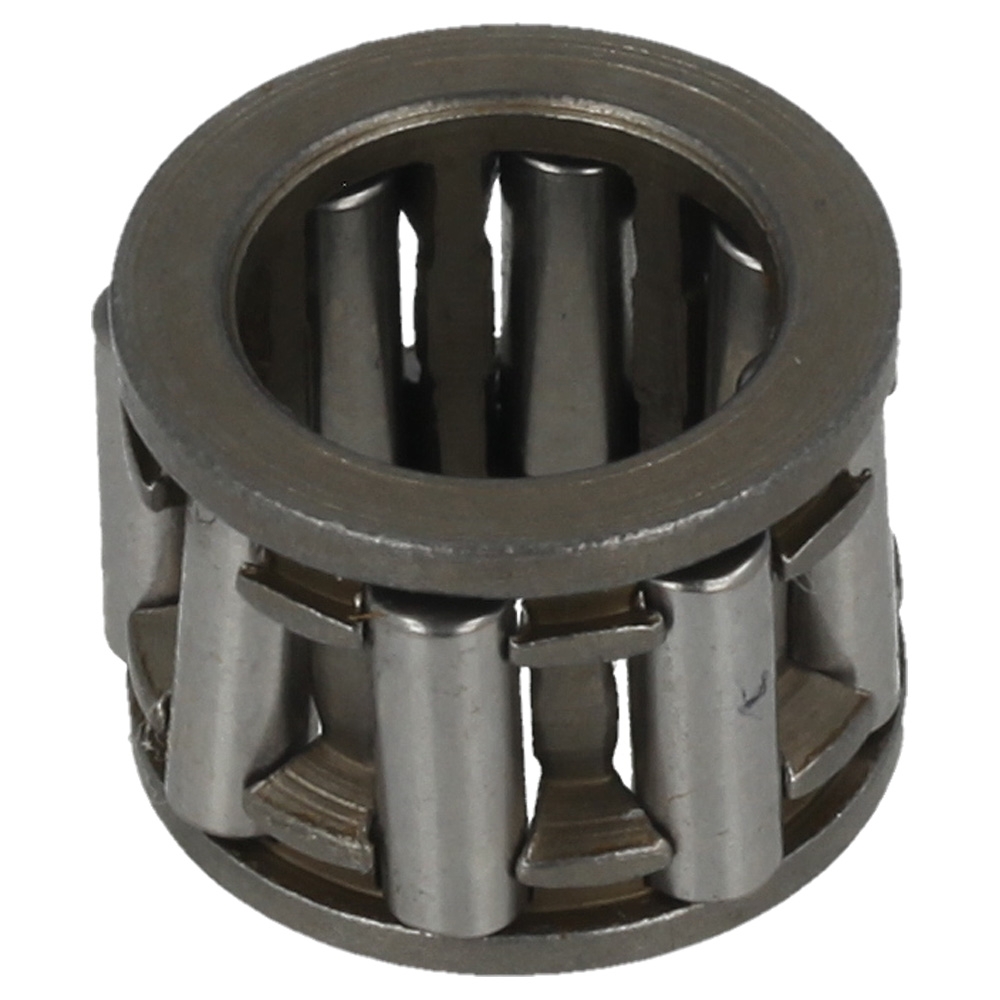

23	9325 In stock	Needle Bearing	£4.56 £3.80
24	ST1140 007 2500 In stock	Rim sprocket kit 3/8" 7T	£50.45 £42.04
25	ST1140 007 2501 Available to backorder	Rim sprocket kit 3/8" 8T	£48.25 £40.21
26	ST1140 007 2502 Available to backorder	Rim sprocket assy .325" 9Z	£48.37 £40.31
27	ST1128 007 1000 Available to backorder	Rim sprocket kit 3/8" 7T	£49.98 £41.65

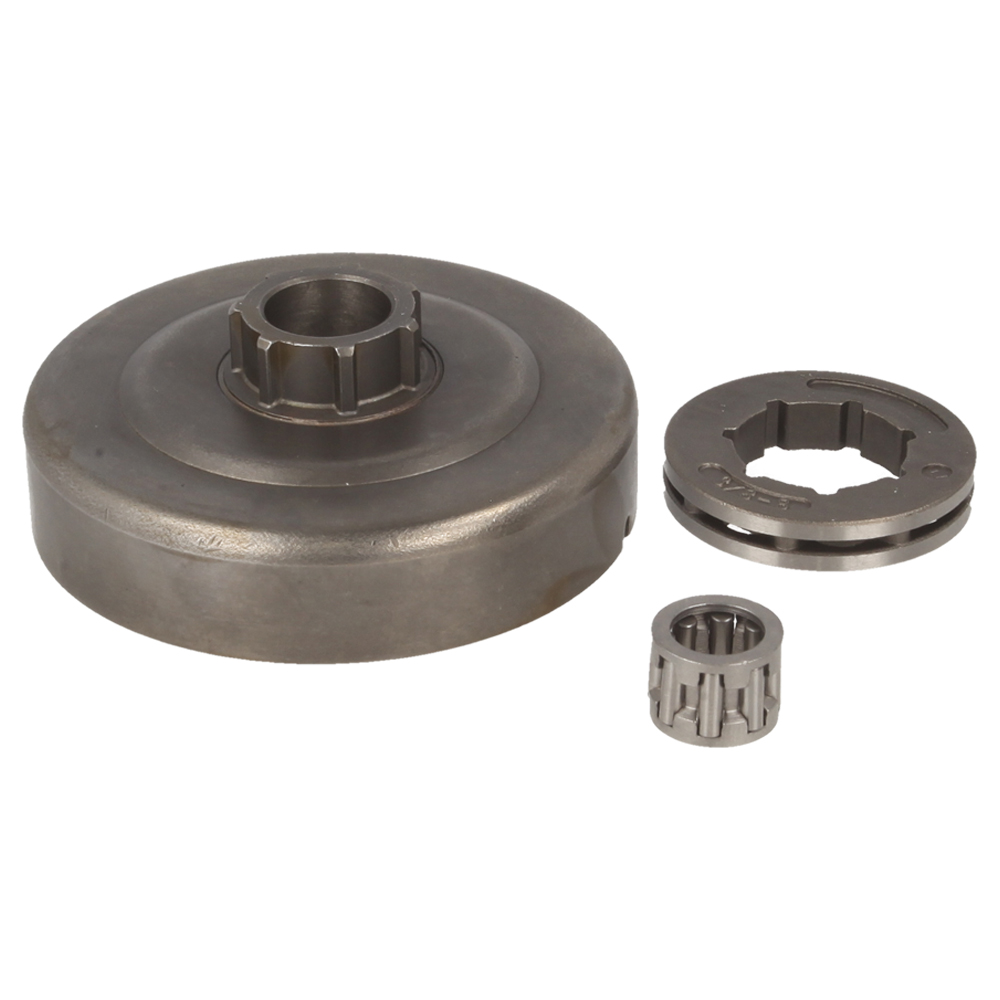

27	2386 Out of stock	Sprocket (3/8" 7 Tooth Rim)	£8.88 £7.40
28	ST1128 007 1001 In stock	Rim sprocket kit 3/8" 8T	£55.97 £46.64
29	ST1128 007 1011 Available to backorder	Rim sprocket kit 0.325" 9T (Skand.)	£48.25 £40.21
31	ST0000 642 1223 In stock	Rim sprocket 3/8" 7T	£12.97 £10.81
32	ST0000 958 1032 In stock	Washer Ø 27 mm	£2.02 £1.68
33	ST9460 624 0801 In stock	E-clip 8x1.3	£0.36 £0.30
34	ST0000 642 1216 Available to backorder	Rim sprocket 3/8" 8T	£12.52 £10.43
35	ST0000 642 1239 Available to backorder	Rim sprocket 0.325" 9T (Skand.)	£12.52 £10.43
