Genuine Stihl MS 362 C-M - Cylinder & Muffler Diagram

Name: Genuine Stihl MS 362 C-M - Cylinder & Muffler Diagram
SKU: MS 362 C-M-B-group
Price: 0.6 GBP
Availability: InStock

Part No. MS 362 C-M-B-group

Description

Genuine Stihl MS 362 C-M-B-group

	Part No.	Details
1	ST1140 020 1211 Available to backorder	Cylinder with piston Ø 47mm	£295.68 £246.40

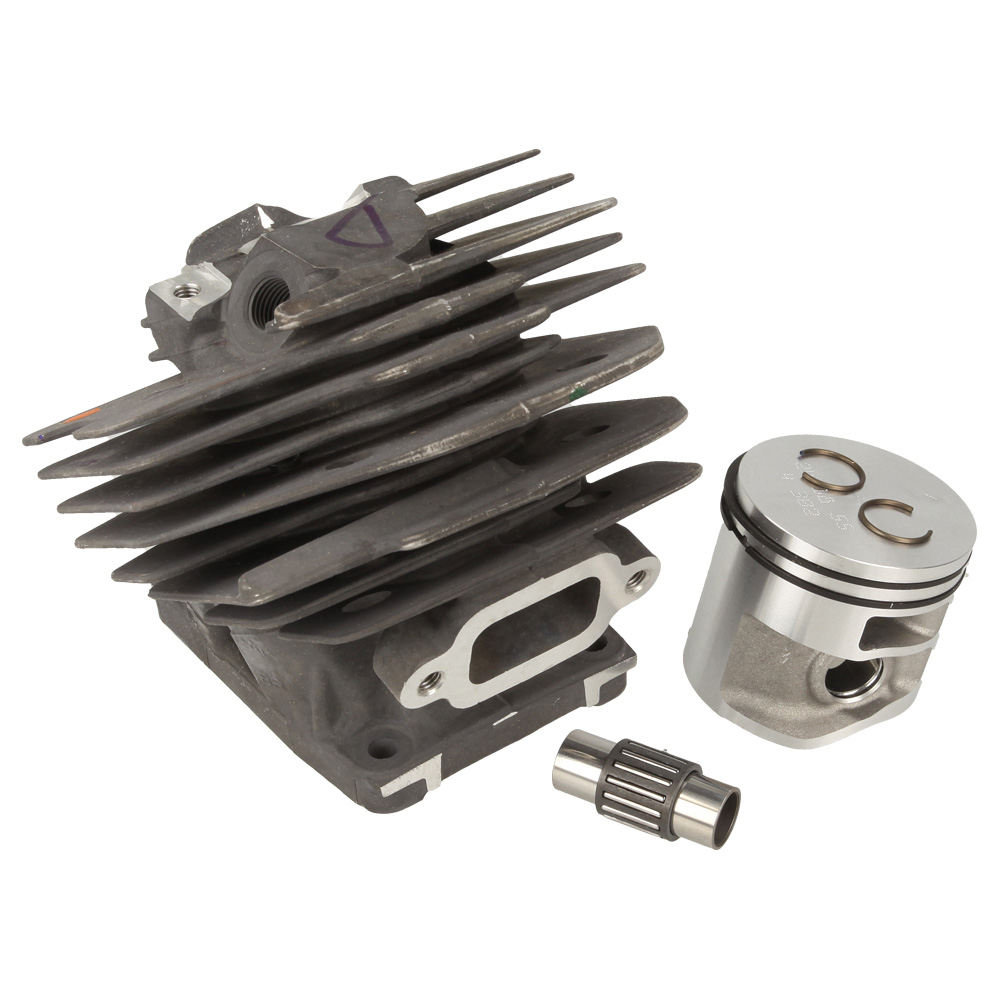

2	ST1140 020 1210 Available to backorder	Cylinder with piston Ø 47 mm	£295.68 £246.40
3	ST1140 020 1209 Available to backorder	Cylinder with piston Ø 47 mm	£295.68 £246.40
5	ST1140 030 2017 Available to backorder	Piston Ø 47 mm	£124.32 £103.60
6	ST1140 034 3008 Available to backorder	Piston ring Ø 47x1,2 mm	£11.63 £9.69
7	ST1140 007 1013 Available to backorder	Piston pin with needle bearing set	£14.69 £12.24
8	ST9463 650 1200 In stock	Snap ring 12x1	£0.72 £0.60
9	ST1142 020 9400 Available to backorder	Decompression valve	£31.51 £26.26
10	ST1140 029 2303 Available to backorder	Cylinder gasket	£3.19 £2.66
11	ST9022 371 1050 In stock	Screw	£1.08 £0.90
12	ST1140 140 0612 Available to backorder	Muffler	£68.76 £57.30
13	ST1140 145 0803 Available to backorder	Exhaust casing	£30.95 £25.79
16	ST1140 149 0600 In stock	Muffler gasket	£4.25 £3.54
17	ST9022 341 0983 In stock	Spline screw IS-M5x16 (Also no. 20)	£0.95 £0.79
18	ST9022 341 0911 In stock	Screw	£0.83 £0.69
19	ST9022 399 1020 In stock	Spline screw IS-M5x20 (Micro-encapsulated with binding thread)	£0.95 £0.79
22	3945 In stock	CMR6H Spark Plug	£4.38 £3.65
23	2134 In stock	BPMR7A Spark Plug	£2.80 £2.33
25	ST1140 007 1001 Available to backorder	Set of gaskets	£13.20 £11.00
