Genuine Stihl HT75 / S - Gear head, Drive tube assembly HT 75

Name: Genuine Stihl HT75 / S - Gear head, Drive tube assembly HT 75
SKU: HT75_S-group
Price: 0.4 GBP
Availability: InStock

Part No. HT75_S-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl HT75 / S - Gear head, Drive tube assembly HT 75

Description

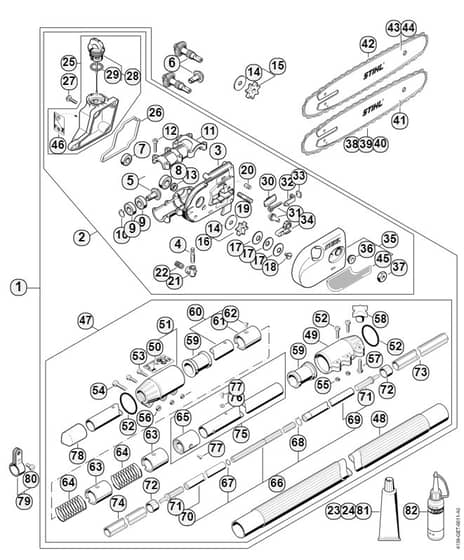

Genuine Stihl HT75 / S - Gear head, Drive tube assembly HT 75

	Part No.	Details
2	ST4182 640 0138 Available to backorder	Gear Head	£332.64 £277.20
3	ST4182 641 0300 Available to backorder	Gear Housing	£102.72 £85.60
4	ST4138 640 3200 Available to backorder	Oil Pump	£25.94 £21.62
5	ST4138 640 7302 Available to backorder	Set Of Pinions 1.27	£132.00 £110.00
6	ST4138 640 7303 Available to backorder	Set Of Pinions 1.27	£125.40 £104.50
7	ST9503 003 9860 Available to backorder	Grooved Ball Bearing 609-2Rs	£12.40 £10.33
8	ST9503 003 5190 Available to backorder	Grooved Ball Bearing 6001-2Rs	£13.76 £11.47
9	ST9503 003 5030 Available to backorder	Grooved Ball Bearing 6000-2Rs	£13.76 £11.47
10	ST9455 621 0850 In stock	Circlip 10x1	£0.72 £0.60
11	ST4138 641 0400 In stock	Gearbox Cover	£27.24 £22.70
12	ST9022 371 1050 In stock	Bolt	£1.08 £0.90
13	ST4138 642 8201 Available to backorder	Ring	£6.94 £5.78
15	ST0000 640 2002 In stock	Chain Sprocket 3/8" Picco 6T	£9.20 £7.67
16	ST0000 640 2003 In stock	Chain Sprocket 3/8" Picco 7T	£11.56 £9.63
17	ST9485 648 1694 Available to backorder	Cup Spring 28x10.2x1.25	£1.03 £0.86
18	ST1208 162 4200 Available to backorder	Collar Screw	£3.41 £2.84
19	ST0000 953 1402 Available to backorder	Stud M8	£4.88 £4.07
20	ST1128 640 9100 In stock	Valve	£4.72 £3.93
21	ST4138 353 2700 Available to backorder	Connector	£2.63 £2.19
22	ST1117 647 6801 Available to backorder	Strainer	£2.96 £2.47
24	ST0781 120 1118 In stock	Gear Lubricant 225 G	£21.96 £18.30
25	ST4182 350 0304 Available to backorder	Oil Tank	£22.76 £18.97
26	ST4138 351 1000 Available to backorder	Gasket	£2.15 £1.79
27	ST0000 951 1100 In stock	Screw Is-D5x20	£1.66 £1.38
28	ST0000 350 0537 In stock	Oil Filler Cap	£9.78 £8.15
29	ST9645 948 2470 In stock	O-Ring 23x3	£0.72 £0.60
30	ST1123 648 6600 Available to backorder	Bumper Strip	£2.02 £1.68
31	ST1129 007 1000 Available to backorder	Spur Gear / Chain Adjusting Screw Kit	£12.86 £10.72
32	ST1123 640 1900 In stock	Tensioner Slide	£3.31 £2.76
33	ST1123 664 1400 In stock	Thrust Pad	£1.43 £1.19
34	ST1123 664 2200 In stock	Cover	£0.95 £0.79
35	ST4138 640 1703 In stock	Chain Sprocket Cover	£21.58 £17.98
36	ST0000 961 1409 Available to backorder	Ring	£2.63 £2.19
37	ST0000 955 0801 In stock	Hexagon Nut M8	£2.23 £1.86
38	ST3610 000 0044 In stock	Chain	£17.16 £14.30
41	ST3005 000 3905 In stock	Guide Bar 30Cm/12" 1.1Mm/0.043" 3/8"P	£39.54 £32.95
43	ST3005 000 7405 Available to backorder	Rollomatic E Light 12" 3/8" Picco .050"/1.3Mm	£51.43 £42.86
44	ST3005 000 4805 Available to backorder	Rollomatic E 12" 3/8" Picco .050"/1.3Mm	£46.40 £38.67
46	ST0000 967 7337 Available to backorder	Warning Pictogram Ht	£2.15 £1.79
47	ST4182 710 7140 Available to backorder	Drive Tube Assembly	£328.68 £273.90
48	ST4138 710 7105 Available to backorder	Drive Tube Assembly Ø 38mm x 1.62 M / 1 1/2" x 63 39/50"	£108.96 £90.80
49	ST4138 716 6500 Available to backorder	Clamp	£26.05 £21.71
51	ST4138 740 3702 Available to backorder	Clamping Piece	£25.61 £21.34
52	ST9645 948 7995 Available to backorder	O-Ring 40x4	£1.82 £1.52
53	ST9022 371 1020 In stock	Spline Screw Is-M5x20	£0.95 £0.79
54	ST9022 341 1300 In stock	Spline Screw Is-M6x20	£0.95 £0.79
56	ST9210 319 0900 In stock	Hexagon Nut M6	£0.48 £0.40
57	ST9008 319 1350 Available to backorder	Hexagon Head Screw M6x25	£1.03 £0.86
58	ST4138 716 1200 In stock	Wing Nut	£4.86 £4.05
59	ST4182 791 7201 Available to backorder	Sleeve	£6.94 £5.78
60	ST4182 710 7111 Available to backorder	Drive Tube Assembly Ø 25.4mm / 1"	£35.60 £29.67
63	ST4138 740 3200 Available to backorder	Bearing	£28.00 £23.33
64	ST4138 711 9100 Available to backorder	Spring	£3.08 £2.57
65	ST4182 740 3200 In stock	Bearing	£54.46 £45.38
66	ST4182 710 3203 Available to backorder	Drive Shaft	£103.44 £86.20
67	ST9458 621 1130 In stock	Snap Ring A12	£0.72 £0.60
68	ST9455 621 1520 In stock	Circlip 15x1	£0.95 £0.79
69	ST4182 710 3204 Available to backorder	Drive Shaft	£61.56 £51.30
70	ST4182 710 3201 Available to backorder	Drive Shaft	£36.08 £30.07
71	ST4182 740 3501 Available to backorder	Driver	£20.94 £17.45
72	ST4138 711 9002 Available to backorder	Ring	£3.31 £2.76
73	ST4138 711 7300 Available to backorder	Flexible Liner 1241mm / 48 7/8"	£11.83 £9.86
74	ST4182 711 7301 Available to backorder	Flexible Liner 400mm	£4.88 £4.07
75	ST4182 710 7106 Available to backorder	Drive Tube Assembly Ø 25.4mm / 1"	£61.45 £51.21
76	ST9291 021 0100 In stock	Washer 4.3	£0.53 £0.44
77	ST9438 003 3171 In stock	Blind Rivet 4x6.5	£0.91 £0.76
78	ST4133 717 2000 In stock	Cap	£2.36 £1.97
79	ST4140 007 1006 Available to backorder	Hose Clamp Kit	£9.34 £7.78
80	ST9022 341 1270 In stock	Spline Screw Is-M6x14	£0.91 £0.76
82	ST0781 957 9000 Available to backorder	Press Fluid Oh 723	£6.48 £5.40
