Genuine Stihl HSE71 / C - Gear Head HSE 71, 81

Name: Genuine Stihl HSE71 / C - Gear Head HSE 71, 81
SKU: HSE71_C-group
Price: 0.29 GBP
Availability: InStock

Part No. HSE71_C-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

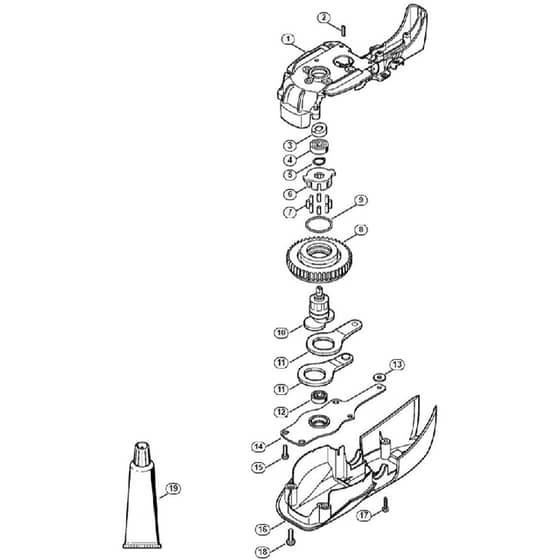

Genuine Stihl HSE71 / C - Gear Head HSE 71, 81

Description

Genuine Stihl HSE71 / C - Gear head HSE 61

	Part No.	Details
1	ST6460 641 0301 Available to backorder	Gear housing (Contains Items 2, 11)	£81.96 £68.30
2	ST6460 642 5100 Available to backorder	Support Plate	£2.28 £1.90
3	ST6460 711 7900 Available to backorder	Control Disk	£2.63 £2.19
4	ST9503 003 9450 Available to backorder	Grooved Ball Bearing 627-2Z	£12.40 £10.33
5	ST9455 621 1130 In stock	Circlip 12x1	£0.68 £0.57
6	ST6460 162 3200 Available to backorder	Carrier	£7.40 £6.17
7	ST9517 003 5055 Available to backorder	Cylindrical Roller 4x10	£0.91 £0.76
8	ST6460 640 7500 Available to backorder	Gear Wheel	£24.25 £20.21

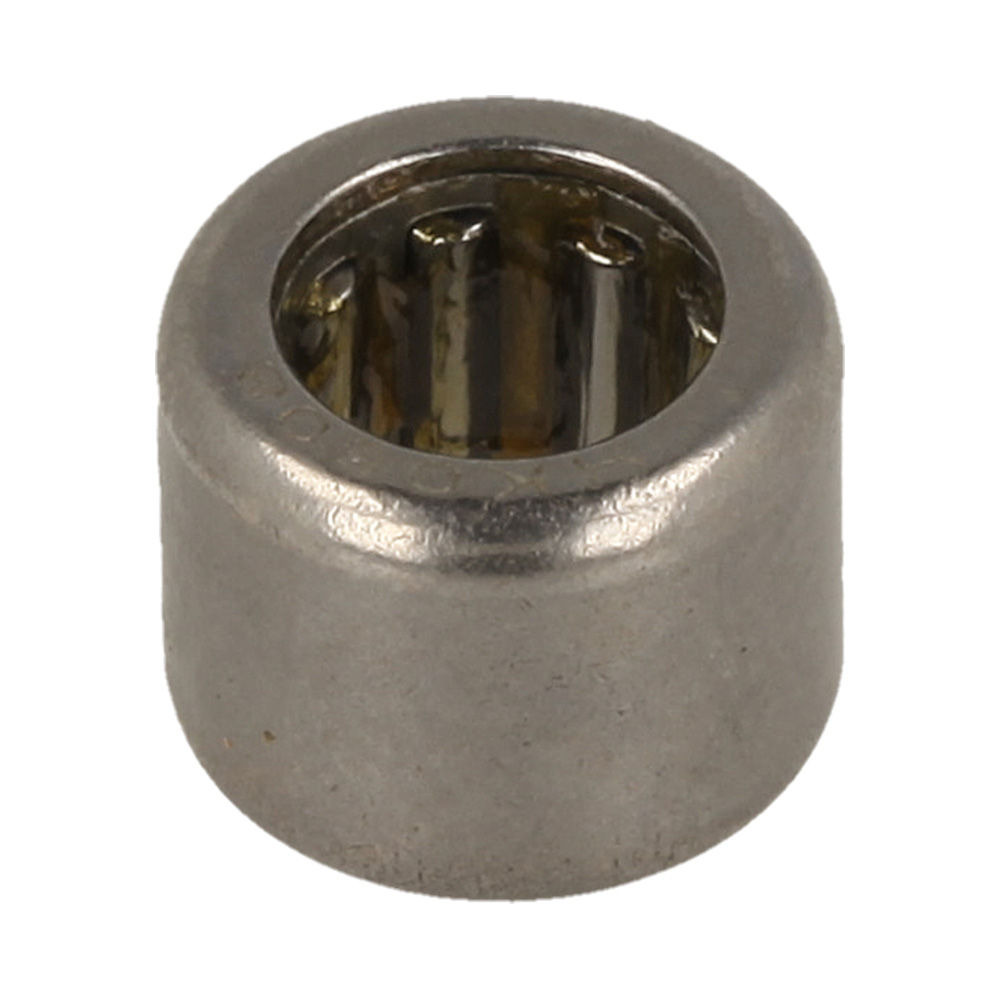

9	ST9513 003 1550 Available to backorder	Needle Cage 6x10x8	£7.06 £5.88
10	ST6460 643 3400 Available to backorder	Flange Sleeve	£9.23 £7.69
11	ST6460 643 1000 Available to backorder	Circlip 6x0,9	£0.46 £0.38
12	ST6460 640 7611 Available to backorder	(Also 13) Spur Gear (Contains item 14)	£96.84 £80.70
14	ST9645 945 7841 Available to backorder	O-Ring 30x2	£0.79 £0.66
15	ST6460 642 7905 Available to backorder	Cam	£39.95 £33.29
16	ST6460 642 6510 In stock	Connecting Rod	£18.86 £15.72
17	ST9503 003 9371 In stock	Grooved Ball Bearing 607-2Z	£10.98 £9.15
18	ST9309 021 0110 Available to backorder	Washer 5,3	£0.35 £0.29
19	ST6460 642 4700 Available to backorder	Bearing Plate	£22.76 £18.97
20	ST9039 488 0672 Available to backorder	Self-Tapping Screw M4x14	£0.79 £0.66
21	ST6460 602 0411 Available to backorder	Cover	£12.97 £10.81
22	ST9104 003 8736 Available to backorder	Self Tapping Screw P4x16	£0.79 £0.66
23	ST9039 488 0984 Available to backorder	Self Tapping Screw M5x16	£0.91 £0.76
24	ST0781 120 1109 In stock	Multipurpose Grease (Tube 80g)	£9.02 £7.52
