Genuine Stihl HSE51 / C - Gear Head, Cutter Bar

Description

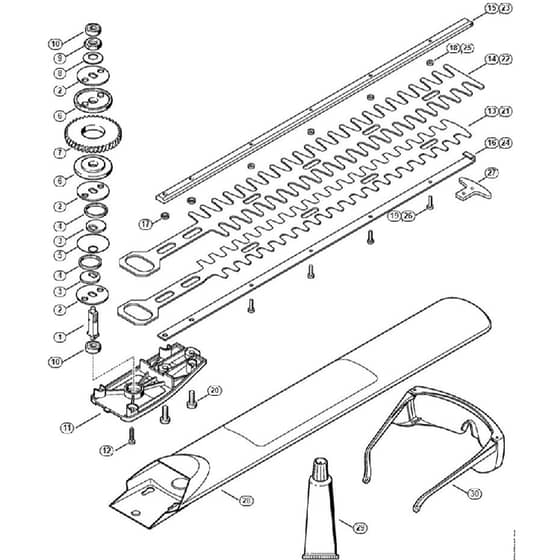

Genuine Stihl HSE51 / C - Gear head, Cutter bar

	Part No.	Details
0	ST6010 640 0100 Available to backorder	Gearhead (Contains Items 1-10)	£52.76 £43.97
1	ST6010 642 0600 Available to backorder	Drive Shaft	£25.12 £20.93
2	ST6010 642 3900 Available to backorder	Drive Disk	£2.40 £2.00
3	ST6010 642 9400 Available to backorder	Eccentric Disk	£2.40 £2.00
4	ST6010 642 4000 Available to backorder	Slip Ring	£5.81 £4.84
5	ST6010 642 8700 Available to backorder	Thrust Washer	£2.15 £1.79
6	ST6010 642 7800 Available to backorder	Washer	£2.48 £2.07
7	ST6010 642 1510 Available to backorder	Spur Gear	£77.40 £64.50
8	ST9485 648 1560 In stock	Cup Spring 25x12.2x1.5	£0.95 £0.79
9	ST9211 260 1440 Available to backorder	Hexagon Nut M12x1	£0.62 £0.52
10	ST9503 003 9540 Available to backorder	Grooved Ball Bearing 626-2Z	£12.19 £10.16
11	ST6010 641 0405 Available to backorder	Gearbox Cover	£6.56 £5.47
12	ST9074 478 4134 Available to backorder	Pan Head Self-Tapping Screw Is-P5x20	£0.86 £0.72
17	ST6010 648 6725 Available to backorder	Slider	£2.03 £1.69
20	ST9039 488 1270 Available to backorder	Self-Tapping Screw M6x18	£0.91 £0.76
0	ST6010 007 1060 Available to backorder	Gearbox With Cutting Attachment 500Mm / 20" (Contains Items 1-12, 17, 20-27)	£100.32 £83.60
0	ST6010 007 1065 Available to backorder	Cutter Bar Assy. 500mm / 20" (Contains Items 17, 20-27)	£101.76 £84.80
21	ST6010 711 5620 Available to backorder	Blade 500Mm / 20"	£52.76 £43.97
22	ST6010 711 5720 Available to backorder	Comb	£40.60 £33.83
23	ST6010 641 4645 Available to backorder	Guide 500mm / 20"	£15.71 £13.09
24	ST6010 641 4640 Available to backorder	Guide 500mm / 20"	£4.20 £3.50
25	ST6010 648 6720 Available to backorder	Slider	£2.03 £1.69
26	ST9039 488 0672 Available to backorder	Self-Tapping Screw M4x14	£0.79 £0.66
27	ST6010 792 9000 Available to backorder	Guide Guard	£8.86 £7.38
28	ST4814 792 9604 Available to backorder	Blade Guard	£19.91 £16.59
29	ST0781 120 1109 In stock	Multipurpose Grease (Tube 80 g)	£9.02 £7.52
30	ST0000 884 0307 Available to backorder	Safety Glasses	£8.57 £7.14
