Genuine Stihl HL94 C-E / J - Angle Drive, Adjustable Thru 145°, 500 mm

Genuine Stihl HL94 C-E / J - Angle Drive, Adjustable Thru 145°, 500 mm
Genuine Stihl HL94 C-E / J - Angle Drive, Adjustable Thru 145°, 500 mm

Description

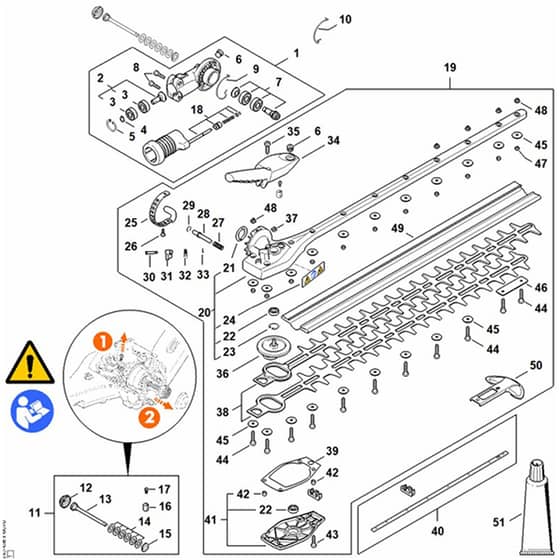

Genuine Stihl HL94 C-E / J - Angle drive, adjustable thru 145°, 500 mm
Ref. Img. Part No. Details
  1 Gear Housing (Contains Items 2-9, 18) ST4243 640 0535
Gear Housing (Contains Items 2-9, 18)
In stock
£97.80 £81.50

  2 Drive Pinion (Contains Items 3, 4) ST4243 640 2502
Drive Pinion (Contains Items 3, 4)
In stock
£23.11 £19.26

  3 Grooved Ball Bearing 609-2Z ST9503 003 9870
Grooved Ball Bearing 609-2Z
Out of stock
£13.46 £11.22

  4 Circlip 9x1 ST9455 621 0750
Circlip 9x1
In stock
£0.84 £0.70

  5 Circlip 24x1.2 ST9456 621 2660
Circlip 24x1.2
In stock
£1.15 £0.96

  6 Screw Plug ((5 Nm)) ST4226 641 6500
Screw Plug ((5 Nm))
In stock
£2.93 £2.44

  7 Drive Pinion ST4243 640 2503
Drive Pinion
In stock
£31.18 £25.98

  8 Spline Screw Is-M5x20 ((8 Nm)) ST9022 371 1020
Spline Screw Is-M5x20 ((8 Nm))
In stock
£1.13 £0.94

  9 Ring ST4243 642 8200
Ring
Out of stock
£3.49 £2.91

  10 Ring ST4243 642 8201
Ring
Out of stock
£3.49 £2.91

  11 Set Of Mounting Hardware (Contains Items 12-17) ST4243 007 1300
Set Of Mounting Hardware (Contains Items 12-17)
In stock
£19.31 £16.09

  12 Cap ST4243 642 1900
Cap
Out of stock
£2.92 £2.43

  13 Screw (8 Nm) ST4243 951 9700
Screw (8 Nm)
In stock
£17.00 £14.17

  14 Cup Spring 15x8.2x0.8 ST9486 648 1012
Cup Spring 15x8.2x0.8
Out of stock
£0.84 £0.70

  15 Washer ST4243 642 7801
Washer
Out of stock
£1.28 £1.07

  16 Screw Sleeve ST4243 642 9002
Screw Sleeve
In stock
£2.15 £1.79

  17 Spline Screw Is-M3x7-12.9 ((2 Nm)) ST9022 373 0334
Spline Screw Is-M3x7-12.9 ((2 Nm))
Out of stock
£0.72 £0.60

  20 Gear Housing (145°. 500mm) (Contains Items 21-24) ST4243 640 0513
Gear Housing (145°. 500mm) (Contains Items 21-24)
Out of stock
£102.12 £85.10

  21 Washer ST4243 641 2602
Washer
Out of stock
£1.50 £1.25

  18 Lock ST4243 640 4506
Lock
Out of stock
£28.46 £23.72

  19 Gear Housing (145°, 500 mm) (Contains Items 20-49) ST4243 640 0536
Gear Housing (145°, 500 mm) (Contains Items 20-49)
Out of stock
£368.04 £306.70

  22 Ball Bearing ST4243 640 5100
Ball Bearing
Out of stock
£10.88 £9.07

  23 Circlips Din472-19x1 ST9456 621 2000
Circlips Din472-19x1
Out of stock
£1.00 £0.83

  24 Warning Pictogram ST0000 967 7299
Warning Pictogram
Out of stock
£2.36 £1.97

  25 Perforated Strip ST4243 642 4601
Perforated Strip
Out of stock
£4.31 £3.59

  26 Pan Head Self-Tapping Screw Is-D4x12 ((4 Nm)) ST9075 478 3012
Pan Head Self-Tapping Screw Is-D4x12 ((4 Nm))
In stock
£0.96 £0.80

  27 Compression Spring ST0000 997 2020
Compression Spring
Out of stock
£1.68 £1.40

  28 Locking Pin ST4243 642 4500
Locking Pin
Out of stock
£7.56 £6.30

  29 Snap Ring Din7993-B10 ST9458 621 1421
Snap Ring Din7993-B10
Out of stock
£0.84 £0.70

  30 Shaft ST4243 704 0900
Shaft
Out of stock
£2.36 £1.97

  32 Torsion Spring ST4243 182 4501
Torsion Spring
Out of stock
£1.39 £1.16

  33 E-Clip 3.2 ST9460 624 0320
E-Clip 3.2
Out of stock
£0.48 £0.40

  34 Adjusting Lever ST4243 700 2901
Adjusting Lever
Out of stock
£17.24 £14.37

  31  Notched Quadrant ST4243 708 6202
Notched Quadrant
In stock
£4.08 £3.40

  36 Cam ST4243 640 1600
Cam
In stock
£67.44 £56.20

  37 Hexagon Nut M6 ST9210 319 0900
Hexagon Nut M6
In stock
£0.55 £0.46

  38 Blade 500mm / 20 ST4243 710 6003
Blade 500mm / 20"
In stock
£109.44 £91.20

  39 Gasket ST4243 649 0300
Gasket
In stock
£1.92 £1.60

  41 Gearbox Cover ST4243 640 5800
Gearbox Cover
In stock
£31.31 £26.09

  42 Sleeve ST0000 988 8600
Sleeve
In stock
£1.39 £1.16

  35 (Also 43) Pan Head Self-Tapping Screw Is-D5x20 ((6 Nm)) ST9075 478 4136
(Also 43) Pan Head Self-Tapping Screw Is-D5x20 ((6 Nm))
In stock
£1.13 £0.94

  44 Spline Screw Is-M5x25 (7 Nm) ST4237 716 0400
Spline Screw Is-M5x25 (7 Nm)
In stock
£1.92 £1.60

  40 Cover Plate Kit 500 mm ST4243 007 1003
Cover Plate Kit 500 mm
Out of stock
£33.59 £27.99

  45 Washer ST4237 958 0500
Washer
In stock
£1.68 £1.40

  47 Sleeve 4.4mm ST4242 641 4900
Sleeve 4.4mm
In stock
£1.39 £1.16

  48 Hexagon Nut M5 ST9216 263 0700
Hexagon Nut M5
In stock
£0.55 £0.46

  49 Blade Guard 500mm / 20 ST0000 790 9200
Blade Guard 500mm / 20"
Out of stock
£12.89 £10.74

  50 Guide Guard ST4237 792 9006
Guide Guard
Out of stock
£15.12 £12.60

  46 Cover Plate ST4243 717 3100
Cover Plate
Out of stock
£33.59 £27.99

  51 Multipurpose Grease (Tube 80 g) ST0781 120 1109
Multipurpose Grease (Tube 80 g)
In stock
£9.60 £8.00


Description

Genuine Stihl HL94 C-E / J - Angle drive, adjustable thru 145°, 500 mm
