Genuine Stihl HL92 KC-E / G - Angle Drive, Adjustable Thru 145°, 500 mm

Description

Genuine Stihl HL92 KC-E / G - Angle drive, adjustable thru 145°, 500 mm

Be the first to review this product

0 product questions

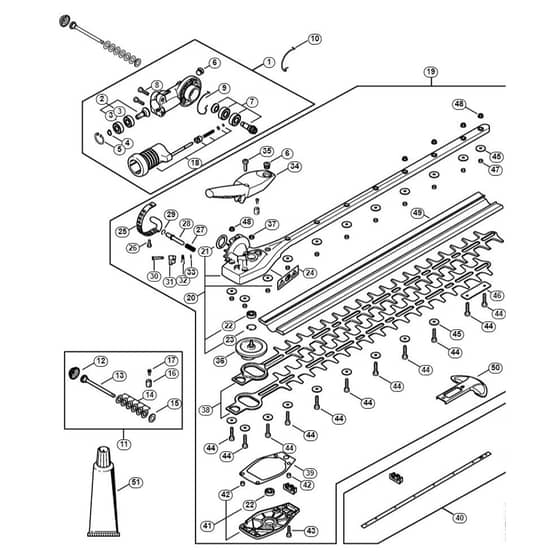

	Part No.	Details
1	ST4243 640 0535 In stock	Gear Housing (Contains Items 2-9, 21)	£99.00 £82.50
2	ST4243 640 2502 In stock	Drive Pinion (Contains Items 3, 4)	£21.12 £17.60
3	ST9503 003 9870 Available to backorder	Grooved Ball Bearing 609-2Z	£11.98 £9.98
4	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
5	ST9456 621 2660 In stock	Circlip 24x1.2	£1.00 £0.83
6	ST4226 641 6500 In stock	Screw Plug (5 Nm)	£2.54 £2.12
7	ST4243 640 2503 In stock	Drive Pinion	£28.48 £23.73
8	ST9022 371 1020 In stock	Spline Screw Is-M5x20 (8 Nm)	£0.88 £0.73
9	ST4243 642 8201 In stock	Ring	£3.20 £2.67
10	ST4243 642 8200 Available to backorder	Ring	£3.20 £2.67
11	ST4243 007 1300 In stock	Set Of Mounting Hardware (Contains Items 12, 14)	£17.72 £14.77
12	ST4243 642 1900 Available to backorder	Cap	£2.54 £2.12
13	ST4243 951 9700 Available to backorder	Screw (8 Nm)	£15.62 £13.02
14	ST9486 648 1012 In stock	Cup Spring 15x8.2x0.8	£0.66 £0.55
15	ST4243 642 7801 Available to backorder	Washer	£1.10 £0.92
16	ST4243 642 9002 In stock	Screw Sleeve	£1.98 £1.65
17	ST9022 373 0334 In stock	Spline Screw Is-M3x7-12.9 ((2 Nm))	£0.66 £0.55
18	ST4243 640 4506 In stock	Lock	£28.04 £23.37
19	ST4243 640 0536 Available to backorder	Gear housing (145°, 500 mm) (Contains Items 20-49)	£327.60 £273.00
20	ST4243 640 0513 Available to backorder	Gear Housing (145°. 500mm) (Contains Items 21-24)	£99.00 £82.50
21	ST4243 641 2602 Available to backorder	Washer	£1.32 £1.10
22	ST4243 640 5100 In stock	Ball Bearing	£10.24 £8.53
23	ST9456 621 2000 Available to backorder	Circlips Din472-19x1	£0.88 £0.73
24	ST0000 967 7299 Available to backorder	Warning Pictogram	£2.08 £1.73
25	ST4243 642 4601 In stock	Perforated Strip	£4.06 £3.38
26	ST9075 478 3012 In stock	Pan Head Self-Tapping Screw Is-D4x12 ((4 Nm))	£0.76 £0.63
27	ST0000 997 2020 Available to backorder	Compression Spring	£1.42 £1.18
28	ST4243 642 4500 In stock	Locking Pin	£7.16 £5.97
29	ST9458 621 1421 Available to backorder	Snap Ring Din7993-B10	£0.66 £0.55
30	ST4243 704 0900 Available to backorder	Shaft	£2.20 £1.83
31	ST4243 708 6202 In stock	Notched Quadrant	£3.86 £3.22
32	ST4243 182 4501 Available to backorder	Torsion Spring	£1.10 £0.92
33	ST9460 624 0320 In stock	E-Clip 3.2	£0.47 £0.39
34	ST4243 700 2901 In stock	Adjusting Lever	£15.28 £12.73
35	ST9075 478 4136 In stock	(Also 43) Pan Head Self-Tapping Screw Is-D5x20 (6 Nm)	£0.89 £0.74
36	ST4243 640 1600 In stock	Cam	£61.60 £51.33
37	ST9210 319 0900 In stock	Hexagon Nut M6	£0.44 £0.37
38	ST4243 710 6003 In stock	Blade 500mm / 20"	£110.88 £92.40
39	ST4243 649 0300 In stock	Gasket	£1.66 £1.38
40	ST4243 007 1003 Available to backorder	Cover plate kit 500 mm	£29.48 £24.57
41	ST4243 640 5800 In stock	Gearbox Cover (Contains Items 22, 42)	£29.38 £24.48
42	ST0000 988 8600 In stock	Sleeve	£1.10 £0.92
44	ST4237 716 0400 In stock	Spline Screw Is-M5x25 (7 Nm)	£1.66 £1.38
45	ST4237 958 0500 In stock	Washer	£1.32 £1.10
46	ST4243 717 3100 Available to backorder	Cover Plate	£29.48 £24.57
47	ST4242 641 4900 In stock	Sleeve 4.4mm	£1.10 £0.92
48	ST9216 263 0700 In stock	Hexagon Nut M5	£0.48 £0.40
49	ST0000 790 9200 In stock	Blade Guard 500mm / 20"	£12.10 £10.08
50	ST4237 792 9006 Available to backorder	Guide Guard	£13.96 £11.63
51	ST0781 120 1109 In stock	Multipurpose Grease (Tube 80 g)	£9.12 £7.60
