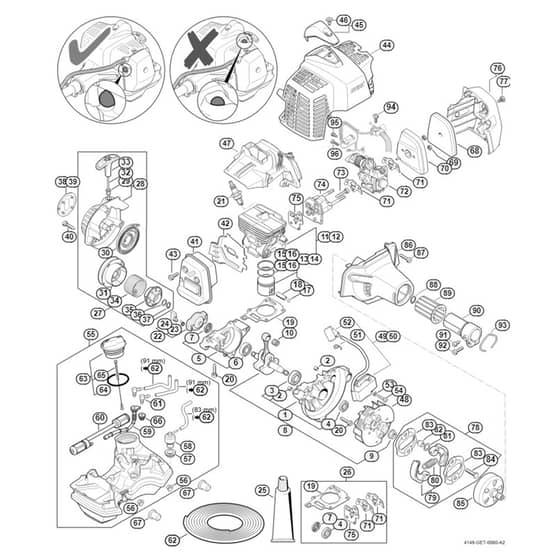

Genuine Stihl HL92 KC-E / A - Engine from Serial Number 517128941

Genuine Stihl HL92 KC-E / A - Engine from Serial Number 517128941
Genuine Stihl HL92 KC-E / A - Engine from Serial Number 517128941

Description

Genuine Stihl HL92 KC-E / A - Engine from serial number 517128941
Ref. Img. Part No. Details
  1 Crankcase, Fan Side (Contains Items 2-4)
Crankcase, Fan Side (Contains Items 2-4)
ST4149 020 2601 Out of stock
Crankcase, Fan Side (Contains Items 2-4)
£76.58 £63.82

  2 Sleeve
Sleeve
ST0000 988 8600 In stock
Sleeve
£1.07 £0.89

  3 Grooved Ball Bearing 6304
Grooved Ball Bearing 6304
ST9503 003 0215 Out of stock
Grooved Ball Bearing 6304
£11.50 £9.58

  4 Oil Seal 12x22x5
Oil Seal 12x22x5
ST9640 003 1195 In stock
Oil Seal 12x22x5
£5.23 £4.36

  5 Crankcase (Contains Items 6, 7)
Crankcase (Contains Items 6, 7)
ST4149 020 2904 Out of stock
Crankcase (Contains Items 6, 7)
£76.24 £63.53

  6 Grooved Ball Bearing 6000
Grooved Ball Bearing 6000
ST9503 003 0102 Out of stock
Grooved Ball Bearing 6000
£11.50 £9.58

  7 Oil Seal 10x20x4
Oil Seal 10x20x4
ST9640 003 0955 In stock
Oil Seal 10x20x4
£4.42 £3.68

  8 Crankshaft
Crankshaft
ST4149 030 0403 Out of stock
Crankshaft
£176.74 £147.28

  9 Collar Nut M8x1
Collar Nut M8x1
ST0000 955 0802 In stock
Collar Nut M8x1
£1.34 £1.12

  10 Needle Cage 8x11x10
Needle Cage 8x11x10
ST9512 003 1834 Out of stock
Needle Cage 8x11x10
£7.13 £5.94

  11 Cylinder With Piston Ø 35mm (Contains Items 13, 15, 17, 18, 20)
Cylinder With Piston Ø 35mm (Contains Items 13, 15, 17, 18, 20)
ST4149 020 1204 Out of stock
Cylinder With Piston Ø 35mm (Contains Items 13, 15, 17, 18, 20)
£72.86 £60.72

  12 Cylinder with piston Ø 33 mm (Contains Items 14, 16 - 18, 20)
Cylinder with piston Ø 33 mm (Contains Items 14, 16 - 18, 20)
ST4149 020 1201 In stock
Cylinder with piston Ø 33 mm (Contains Items 14, 16 - 18, 20)
£46.33 £38.61

  13 Piston Ø 35 mm (Contains Items 15, 17, 18)
Piston Ø 35 mm (Contains Items 15, 17, 18)
ST4149 030 2012 Out of stock
Piston Ø 35 mm (Contains Items 15, 17, 18)
£48.71 £40.59

  14 Piston Ø 33mm (Contains Items 16-18)
Piston Ø 33mm (Contains Items 16-18)
ST4149 030 2003 Out of stock
Piston Ø 33mm (Contains Items 16-18)
£38.65 £32.21

  15 Piston Ring Ø 35x1,2 mm
Piston Ring Ø 35x1,2 mm
ST4149 034 3005 Out of stock
Piston Ring Ø 35x1,2 mm
£10.49 £8.74

  16 Piston Ring Ø 33x1.2mm
Piston Ring Ø 33x1.2mm
ST4242 034 3000 Out of stock
Piston Ring Ø 33x1.2mm
£4.61 £3.84

  17 Snap Ring 8x0.7
Snap Ring 8x0.7
ST9463 650 0805 In stock
Snap Ring 8x0.7
£0.61 £0.51

  18 Piston Pin 8x5x22
Piston Pin 8x5x22
ST4241 034 1500 Out of stock
Piston Pin 8x5x22
£6.71 £5.59

  19 Cylinder Gasket
Cylinder Gasket
ST4149 029 2301 Out of stock
Cylinder Gasket
£3.25 £2.71

  20 (Also 40, 87) Pan Head Self-Tapping Screw Is-D5x24 ((6 Nm))
(Also 40, 87) Pan Head Self-Tapping Screw Is-D5x24 ((6 Nm))
ST9075 478 4159 In stock
(Also 40, 87) Pan Head Self-Tapping Screw Is-D5x24 ((6 Nm))
£0.86 £0.72

  21 NGK Spark Plugs - CMR6H
NGK Spark Plugs - CMR6H
ST0000 400 7011 In stock
NGK Spark Plugs - CMR6H
£5.22 £4.35

  22 Driver (Contains Items 23, 24)
Driver (Contains Items 23, 24)
ST4140 190 2010 In stock
Driver (Contains Items 23, 24)
£11.36 £9.47

  23 Torsion Spring
Torsion Spring
ST0000 998 0612 In stock
Torsion Spring
£1.09 £0.91

  24 Pawl
Pawl
ST4133 195 7201 In stock
Pawl
£2.26 £1.88

  25 Tube Of Sealant HT Red
Tube Of Sealant HT Red
ST0783 830 2000 In stock
Tube Of Sealant HT Red
£9.18 £7.65

  26 Set Of Gaskets (Contains Items 4, 7, 19, 71, 75)
Set Of Gaskets (Contains Items 4, 7, 19, 71, 75)
ST4149 007 1600 Out of stock
Set Of Gaskets (Contains Items 4, 7, 19, 71, 75)
£14.05 £11.71

  27 Rewind Starter (Contains Items 28-37)
Rewind Starter (Contains Items 28-37)
ST4149 190 4000 In stock
Rewind Starter (Contains Items 28-37)
£47.00 £39.17

  28 Starter Cover (Contains Item 29)
Starter Cover (Contains Item 29)
ST4149 190 0400 Out of stock
Starter Cover (Contains Item 29)
£14.76 £12.30

  29 Rivet 6.5x0.5x8.8
Rivet 6.5x0.5x8.8
ST9416 868 6650 Out of stock
Rivet 6.5x0.5x8.8
£1.31 £1.09

  30 Rewind Spring
Rewind Spring
ST4149 190 0600 In stock
Rewind Spring
£9.04 £7.53

  31 Rope Rotor
Rope Rotor
ST4149 195 0400 Out of stock
Rope Rotor
£8.98 £7.48

  32 Starter Rope Ø 2.7x910mm
Starter Rope Ø 2.7x910mm
ST4137 195 8200 In stock
Starter Rope Ø 2.7x910mm
£3.23 £2.69

  33 Starter Grip
Starter Grip
ST4140 195 3400 Out of stock
Starter Grip
£3.94 £3.28

  34 Spring
Spring
ST4149 195 3500 In stock
Spring
£4.74 £3.95

  35 Carrier
Carrier
ST4149 195 2000 In stock
Carrier
£2.87 £2.39

  36 Washer
Washer
ST0000 958 0923 In stock
Washer
£1.09 £0.91

  37 Circlip 9x1
Circlip 9x1
ST9455 621 0750 In stock
Circlip 9x1
£0.58 £0.48

  38 Model Plate HL92 C
Model Plate HL92 C
ST4243 967 1501 Out of stock
Model Plate HL92 C
£4.74 £3.95

  39 Model Plate HL92 KC
Model Plate HL92 KC
ST4243 967 1502 Out of stock
Model Plate HL92 KC
£4.74 £3.95

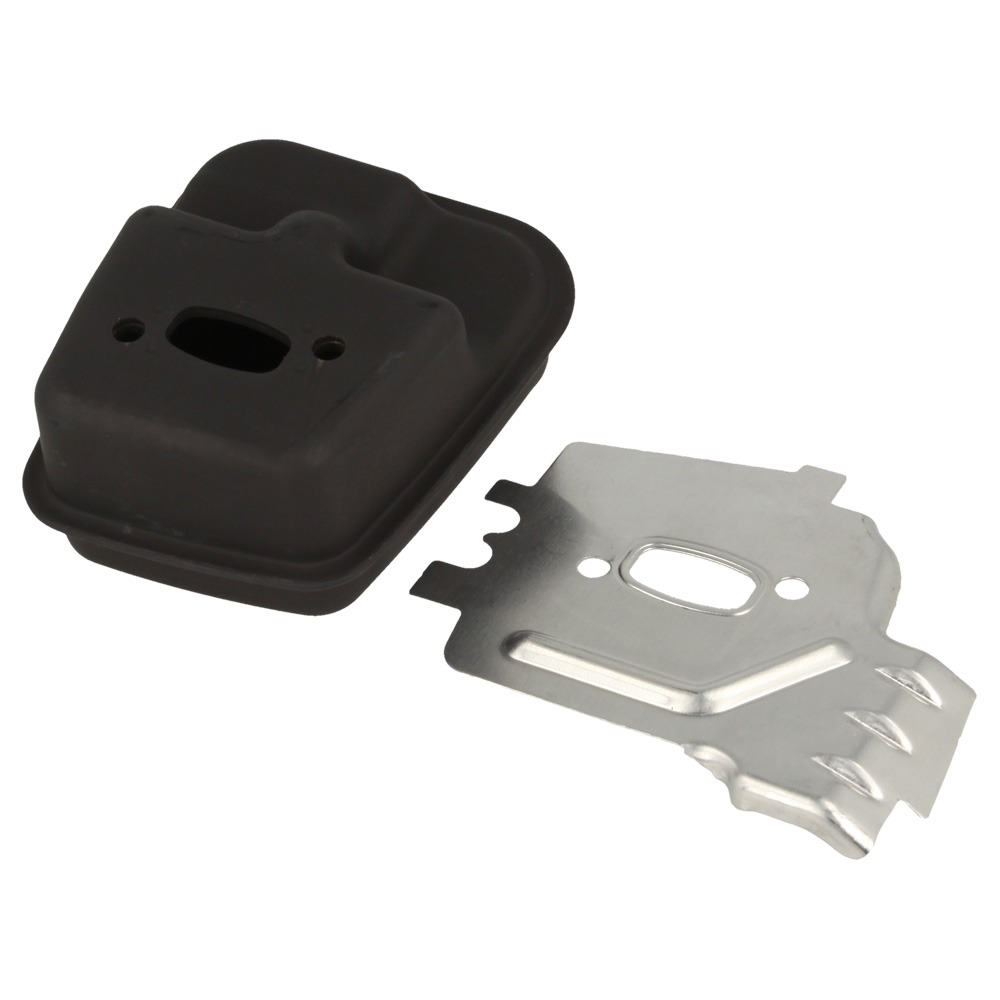

  41 Muffler
Muffler
ST4149 140 0607 Out of stock
Muffler
£32.52 £27.10

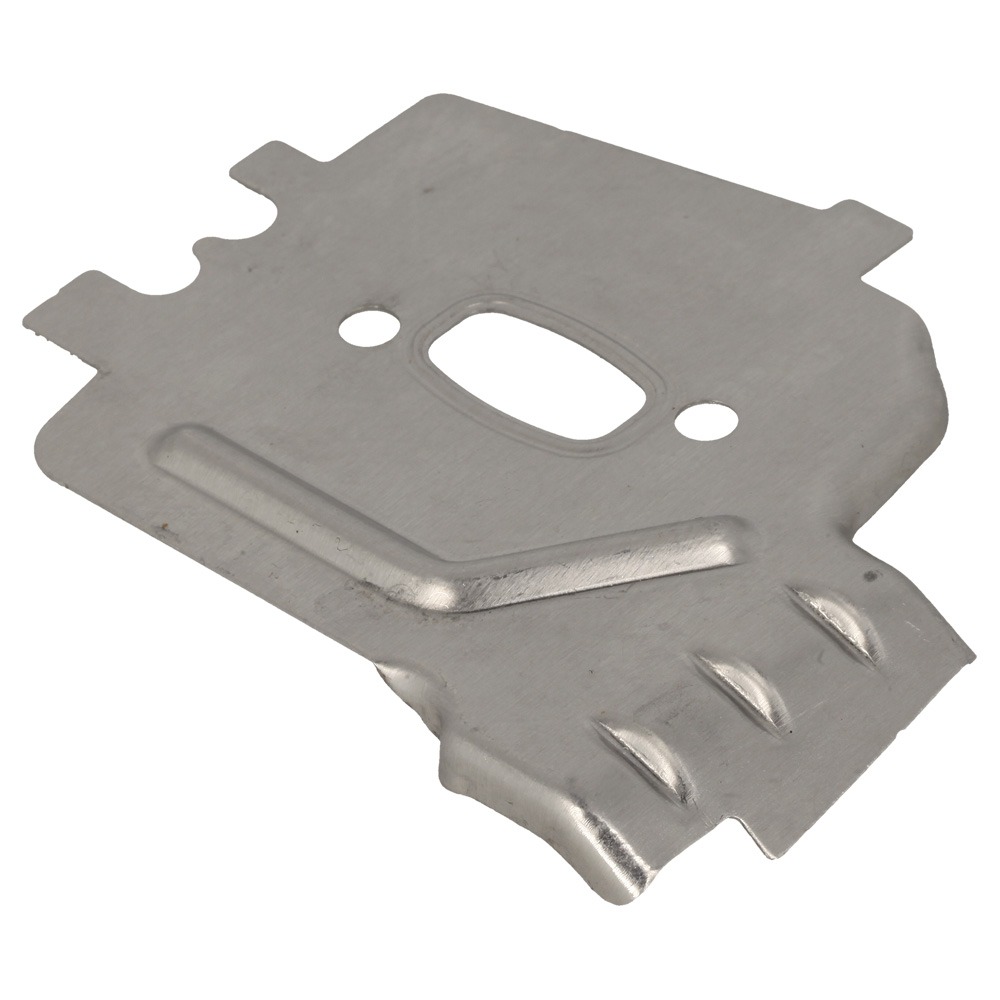

  42 Cooling Plate
Cooling Plate
ST4149 141 3202 Out of stock
Cooling Plate
£5.52 £4.60

  43 Pan Head Self-Tapping Screw Is-D5x18 ((9 Nm))
Pan Head Self-Tapping Screw Is-D5x18 ((9 Nm))
ST9075 478 4085 Out of stock
Pan Head Self-Tapping Screw Is-D5x18 ((9 Nm))
£0.86 £0.72

  44 Shroud
Shroud
ST4149 080 1611 Out of stock
Shroud
£14.56 £12.13

  45 Cover (Contains Items 46)
Cover (Contains Items 46)
ST4149 080 0401 Out of stock
Cover (Contains Items 46)
£10.49 £8.74

  46 (Also 77) Screw M5x12 (5 Nm)
(Also 77) Screw M5x12 (5 Nm)
ST0000 951 1114 In stock
(Also 77) Screw M5x12 (5 Nm)
£1.54 £1.28

  47 Air Guide Shroud
Air Guide Shroud
ST4149 080 0903 Out of stock
Air Guide Shroud
£15.00 £12.50

  48 Flywheel
Flywheel
ST4149 400 1200 Out of stock
Flywheel
£60.95 £50.79

  49 Ignition Module (Contains Items 51, 52)
Ignition Module (Contains Items 51, 52)
ST4243 400 1307 Out of stock
Ignition Module (Contains Items 51, 52)
£82.45 £68.71

  50 Ignition Module (Contains Items 51, 52)
Ignition Module (Contains Items 51, 52)
ST4243 400 1301 Out of stock
Ignition Module (Contains Items 51, 52)
£139.79 £116.49

  51 Spark Plug Contact Spring
Spark Plug Contact Spring
ST0000 998 0604 In stock
Spark Plug Contact Spring
£1.31 £1.09

  52 Spark Plug Boot
Spark Plug Boot
ST0000 405 1007 Out of stock
Spark Plug Boot
£6.52 £5.43

  53 Washer 4.3
Washer 4.3
ST9291 021 0100 In stock
Washer 4.3
£0.48 £0.40

  54 Pan Head Self-Tapping Screw Is-D4x20 ((4 Nm))
Pan Head Self-Tapping Screw Is-D4x20 ((4 Nm))
ST9075 478 3022 Out of stock
Pan Head Self-Tapping Screw Is-D4x20 ((4 Nm))
£0.91 £0.76

  55 Fuel Tank (Contains Items 56 - 66)
Fuel Tank (Contains Items 56 - 66)
ST4149 350 0414 Out of stock
Fuel Tank (Contains Items 56 - 66)
£80.47 £67.06

  56 Sleeve 7.5x6.8
Sleeve 7.5x6.8
ST9991 003 5087 In stock
Sleeve 7.5x6.8
£0.59 £0.49

  57 Grommet
Grommet
ST4223 353 9201 Out of stock
Grommet
£1.48 £1.23

  58 Tank Vent
Tank Vent
ST0000 350 5812 Out of stock
Tank Vent
£14.42 £12.02

  59 Hose
Hose
ST4147 358 0800 In stock
Hose
£4.43 £3.69

  60 Set of Pickup Bodies
Set of Pickup Bodies
ST0000 007 3600 Out of stock
Set of Pickup Bodies
£15.36 £12.80

  61 Elbow Connector
Elbow Connector
ST4224 122 3900 In stock
Elbow Connector
£3.76 £3.13

  62 Hose 3.1x5.7mm x 1 M. R3
Hose 3.1x5.7mm x 1 M. R3
ST0000 930 2803 In stock
Hose 3.1x5.7mm x 1 M. R3
£4.03 £3.36

  63 Hose 3.1x5.7mm x 10 M. R3
Hose 3.1x5.7mm x 10 M. R3
ST0712 923 8004 In stock
Hose 3.1x5.7mm x 10 M. R3
£34.94 £29.12

  64 O-Ring 35x3-Fpm 80
O-Ring 35x3-Fpm 80
ST9645 951 3890 Out of stock
O-Ring 35x3-Fpm 80
£1.72 £1.43

  65 Rope
Rope
ST0000 350 0900 Out of stock
Rope
£1.24 £1.03

  66 Grommet
Grommet
ST1141 989 0600 Out of stock
Grommet
£1.69 £1.41

  67 Insert
Insert
ST4180 352 8100 Out of stock
Insert
£2.02 £1.68

  68 Filter
Filter
ST4149 120 1800 In stock
Filter
£2.93 £2.44

  69 Hexagon Nut M5
Hexagon Nut M5
ST9210 261 0700 Out of stock
Hexagon Nut M5
£0.48 £0.40

  70 Filter Housing
Filter Housing
ST4149 140 2802 Out of stock
Filter Housing
£13.36 £11.13

  71 Gasket
Gasket
ST4149 129 0901 In stock
Gasket
£2.26 £1.88

  72 Carburetor 4149/02
Carburetor 4149/02
ST4149 120 0602 In stock
Carburetor 4149/02
£82.56 £68.80

  73 Pan Head Self-Tapping Screw Is-D5x28 ((9 Nm))
Pan Head Self-Tapping Screw Is-D5x28 ((9 Nm))
ST9075 478 4175 Out of stock
Pan Head Self-Tapping Screw Is-D5x28 ((9 Nm))
£1.03 £0.86

  74 Spacer Flange
Spacer Flange
ST4149 120 2300 Out of stock
Spacer Flange
£17.53 £14.61

  75 Gasket
Gasket
ST4149 129 0900 Out of stock
Gasket
£2.35 £1.96

  76 Filter Cover
Filter Cover
ST4149 140 1004 Out of stock
Filter Cover
£21.58 £17.98

  78 Clutch (Contains Items 79-84)
Clutch (Contains Items 79-84)
ST4149 160 2250 Out of stock
Clutch (Contains Items 79-84)
£38.11 £31.76

  79 Clutch
Clutch
ST4149 160 2000 In stock
Clutch
£27.17 £22.64

  80 Tension Spring
Tension Spring
ST0000 997 6101 In stock
Tension Spring
£1.94 £1.62

  81 Washer 16x10x0.5
Washer 16x10x0.5
ST0000 958 1000 In stock
Washer 16x10x0.5
£1.09 £0.91

  82 Ring
Ring
ST0000 961 0601 In stock
Ring
£2.65 £2.21

  83 Cover Washer
Cover Washer
ST4180 162 1000 In stock
Cover Washer
£2.36 £1.97

  84 Hexagon Head Screw M6 ((12 Nm))
Hexagon Head Screw M6 ((12 Nm))
ST0000 951 0600 Out of stock
Hexagon Head Screw M6 ((12 Nm))
£1.54 £1.28

  85 Clutch Drum
Clutch Drum
ST4149 160 2902 In stock
Clutch Drum
£30.72 £25.60

  86 Fan Housing
Fan Housing
ST4149 080 1801 In stock
Fan Housing
£30.94 £25.78

  88 Circlip 12x1
Circlip 12x1
ST9455 621 1130 Out of stock
Circlip 12x1
£0.60 £0.50

  89 Rubber Insert
Rubber Insert
ST4149 791 9300 Out of stock
Rubber Insert
£8.66 £7.22

  90 Sleeve
Sleeve
ST4149 790 7201 In stock
Sleeve
£12.92 £10.77

  91 Pan Head Self-Tapping Screw Is-D5x12
Pan Head Self-Tapping Screw Is-D5x12
ST9075 478 4095 Out of stock
Pan Head Self-Tapping Screw Is-D5x12
£0.74 £0.62

  92 Spline Screw Is-M5x20 (5.5 Nm)
Spline Screw Is-M5x20 (5.5 Nm)
ST9022 371 1020 In stock
Spline Screw Is-M5x20 (5.5 Nm)
£0.86 £0.72

  93 Circlip
Circlip
ST9457 621 4481 Out of stock
Circlip
£1.72 £1.43

  94 Pan Head Self-Tapping Screw Is-P5x16 ((3 Nm))
Pan Head Self-Tapping Screw Is-P5x16 ((3 Nm))
ST9074 477 4130 In stock
Pan Head Self-Tapping Screw Is-P5x16 ((3 Nm))
£0.86 £0.72

  95 Pan Head Self-Tapping Screw Is-D4x15 ((3 Nm))
Pan Head Self-Tapping Screw Is-D4x15 ((3 Nm))
ST9075 478 3015 In stock
Pan Head Self-Tapping Screw Is-D4x15 ((3 Nm))
£0.74 £0.62

  96 Pan Head Self-Tapping Screw Is-P4x10 ((0.6 Nm))
Pan Head Self-Tapping Screw Is-P4x10 ((0.6 Nm))
ST9074 478 2970 Out of stock
Pan Head Self-Tapping Screw Is-P4x10 ((0.6 Nm))
£0.78 £0.65


Description

Genuine Stihl HL92 KC-E / A - Engine from serial number 517128941

Reviews

Add a review
Write Your Own Review
You're reviewing:Genuine Stihl HL92 KC-E / A - Engine from Serial Number 517128941

Compatibility

Ask a Question

Customer Questions
No Questions
Please, mind that only logged in users can submit questions

Recommended for you

Recently viewed products
