Genuine Stihl FS94 RC-E / F - Control handle, Drive tube assembly, Gear head up to serial number 514309587

Name: Genuine Stihl FS94 RC-E / F - Control handle, Drive tube assembly, Gear head up to serial number 514309587
SKU: FS94_RC-E_F-group
Price: 0.31 GBP
Availability: InStock

Part No. FS94_RC-E_F-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl FS94 RC-E / F - Control handle, Drive tube assembly, Gear head up to serial number 514309587

Description

Genuine Stihl FS94 RC-E / F - Control handle, Drive tube assembly, Gear head up to serial number 514309587

	Part No.	Details
1	ST4149 790 1300 Available to backorder	Control Handle	£61.08 £50.90
2	ST4149 790 1101 Available to backorder	Handle Molding	£34.92 £29.10
3	ST4149 798 2100 Available to backorder	Thumbwheel	£5.23 £4.36
4	ST4149 791 3102 Available to backorder	Spring	£2.15 £1.79
5	ST4149 182 2802 Available to backorder	Lever	£4.32 £3.60
6	ST9104 003 2962 Available to backorder	Self-Tapping Screw P4x10 ((1.3 Nm))	£0.79 £0.66
7	ST4149 791 3101 Available to backorder	Spring	£2.40 £2.00
8	ST4149 442 1601 Available to backorder	Contact Spring	£1.60 £1.33
9	ST4149 442 1600 Available to backorder	Contact Spring	£1.60 £1.33
10	ST4144 791 9400 Available to backorder	Hose Clamp	£3.52 £2.93
11	ST9022 341 0960 In stock	Spline Screw Is-M5x12 ((5 Nm))	£0.83 £0.69
12	ST4149 182 2801 Available to backorder	Lever	£4.45 £3.71
13	ST4128 182 4501 Available to backorder	Torsion Spring	£1.14 £0.95
14	ST4149 182 0800 Available to backorder	Lockout Lever	£4.45 £3.71
15	ST4149 182 2800 Available to backorder	Lever	£4.45 £3.71
16	ST4149 182 4500 Available to backorder	Torsion Spring	£1.37 £1.14
17	ST4149 182 1000 In stock	Throttle Trigger	£7.32 £6.10
18	ST9074 478 2967 Available to backorder	Pan Head Self-Tapping Screw Is-P4x10	£0.79 £0.66
19	ST4149 180 1101 Available to backorder	Throttle Cable	£24.35 £20.29
20	ST9074 478 3025 In stock	Pan Head Self-Tapping Screw Is-P4x16 ((1.3 Nm))	£0.79 £0.66
21	ST9074 477 4130 In stock	Pan Head Self-Tapping Screw Is-P5x16	£0.95 £0.79
22	ST4180 790 3405 In stock	Loop Handle	£22.52 £18.77
23	ST4130 790 8450 Available to backorder	Bow	£16.16 £13.47
24	ST9222 068 0900 In stock	Square Nut M6	£0.48 £0.40
25	ST9022 341 1370 In stock	Spline Screw Is-M6x30 ((4.5 Nm))	£1.31 £1.09
26	ST4123 791 7400 Available to backorder	Clamp	£5.46 £4.55
27	ST9291 021 0140 In stock	Washer 6.4	£0.37 £0.31

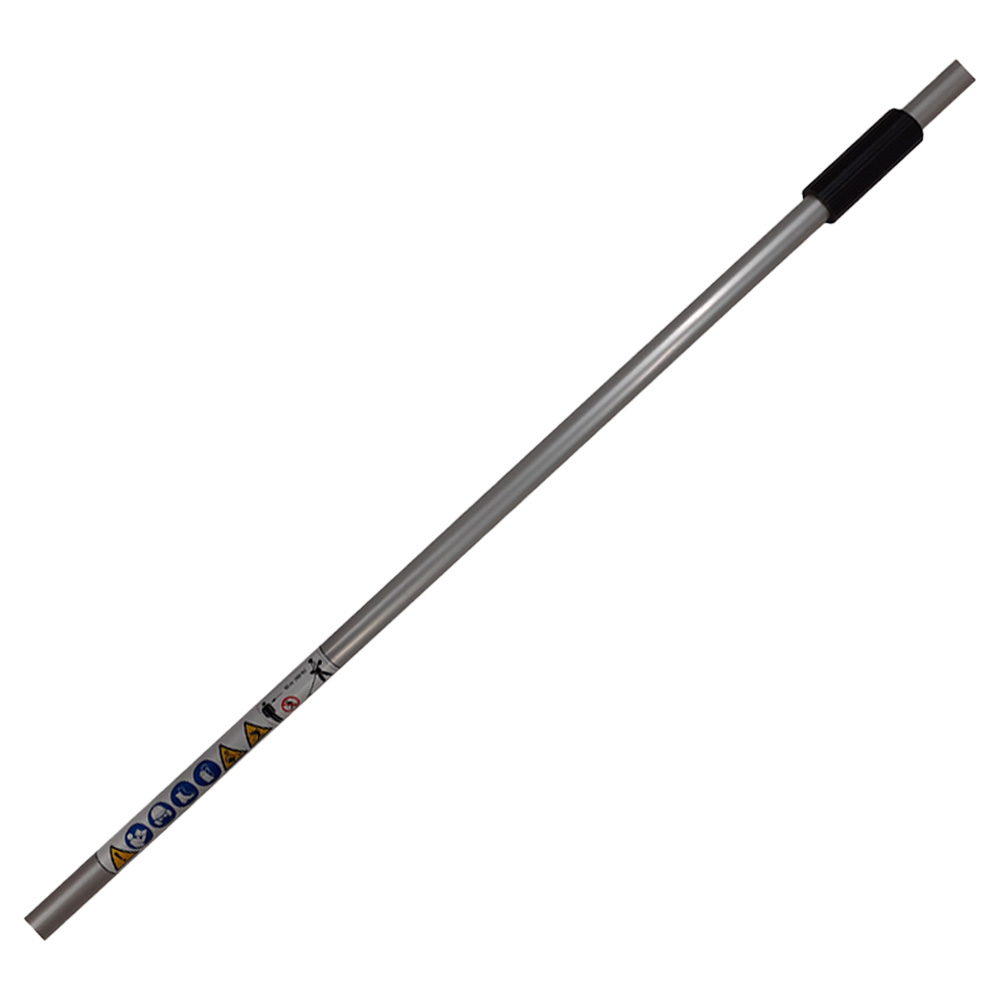

28	ST4149 710 7123 Available to backorder	Drive Tube Assembly Ø 25.4mm / 1"	£64.32 £53.60
29	ST4149 711 7302 Available to backorder	Flexible Liner 1422mm / 56"	£10.92 £9.10
30	ST4140 711 2100 Available to backorder	Plug	£1.03 £0.86
31	ST0000 967 7253 In stock	Warning Pictogram Fs	£2.23 £1.86
32	ST4149 711 7202 Available to backorder	Hose	£9.66 £8.05
33	ST4149 711 3203 Available to backorder	Drive Shaft	£48.14 £40.12
34	ST0000 790 8801 In stock	Loop	£12.13 £10.11
35	ST9022 341 0980 In stock	Spline Screw Is-M5x16 ((2 Nm))	£0.95 £0.79
37	ST4137 640 0100 Available to backorder	Gearhead	£242.40 £202.00
38	ST4130 641 0305 Available to backorder	Gear Housing	£98.40 £82.00
39	ST9503 003 9850 In stock	Grooved Ball Bearing 609	£10.72 £8.93
40	ST4130 640 7301 Available to backorder	Set Of Pinions	£40.39 £33.66
41	ST4130 642 0601 Available to backorder	Drive Shaft	£37.91 £31.59
42	ST9503 003 5190 Available to backorder	Grooved Ball Bearing 6001-2Rs	£13.76 £11.47
43	ST9456 621 3100 In stock	Circlip 28x1.2	£1.31 £1.09
44	ST9503 003 9853 Available to backorder	Grooved Ball Bearing 609-2Z	£12.40 £10.33
45	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
46	ST9456 621 2660 In stock	Circlip 24x1.2	£1.08 £0.90
47	ST4119 713 6500 In stock	Screw Plug ((9 Nm))	£3.31 £2.76
48	ST4137 710 3800 In stock	Thrust Plate	£18.05 £15.04
49	ST4130 713 1600 In stock	Thrust Washer	£4.48 £3.73
50	ST4126 642 7600 In stock	Collar Nut M10x1 L/H Thread	£5.42 £4.52
51	ST9075 478 4159 In stock	Pan Head Self-Tapping Screw Is-D5x24 ((8 Nm))	£0.95 £0.79
52	ST4126 713 3100 In stock	Rider Plate	£10.37 £8.64
55	ST4119 710 8103 Available to backorder	Deflector	£46.66 £38.88
56	ST0000 716 3101 In stock	Backing Plate	£6.49 £5.41
57	ST9022 373 1025 In stock	Spline Screw Is-M5x23	£0.91 £0.76
58	ST4119 716 3203 In stock	Skirt	£10.27 £8.56
60	ST4119 710 6000 In stock	Blade	£6.13 £5.11
61	ST4118 713 4105 In stock	Blade	£2.84 £2.37
62	ST9074 478 4125 In stock	Pan Head Self-Tapping Screw Is-5x14	£0.83 £0.69
63	ST4133 007 1007 Available to backorder	Deflector Kit	£36.19 £30.16
65	ST4133 713 4110 In stock	Blade	£4.62 £3.85
66	ST9074 478 4405 In stock	Pan Head Self-Tapping Screw Is-P6x14	£0.95 £0.79
