Genuine Stihl FS36 R / D - Carburettor WT-160

Name: Genuine Stihl FS36 R / D - Carburettor WT-160
SKU: FS36_R_D-group
Price: 0.9 GBP
Availability: InStock

Part No. FS36_R_D-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl FS36 R / D - Carburettor WT-160

Description

Genuine Stihl FS36 R / D - Carburetor WT-160

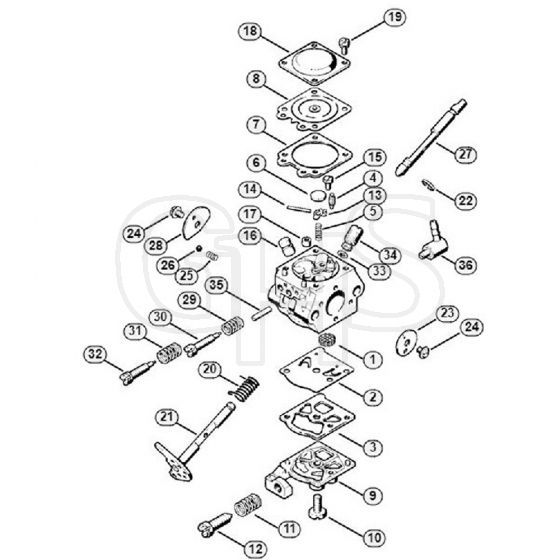

	Part No.	Details
1	ST1114 121 7800 Available to backorder	Strainer	£3.41 £2.84
2	ST1121 121 4801 Available to backorder	Pump Diaphragm	£15.48 £12.90
3	ST1120 129 0905 Available to backorder	Gasket	£2.28 £1.90
4	ST4116 121 5100 Available to backorder	Inlet Needle	£11.15 £9.29
5	ST1120 122 3001 Available to backorder	Spring	£2.40 £2.00
6	ST4117 122 9402 Available to backorder	Plug	£2.15 £1.79
7	ST1120 129 0900 Available to backorder	Gasket	£2.28 £1.90
8	ST1113 121 4705 Available to backorder	Metering Diaphragm	£15.48 £12.90
9	ST4117 121 0803 Available to backorder	End Cover	£17.80 £14.83
10	ST1114 122 7100 Available to backorder	Screw	£2.63 £2.19
11	ST4117 122 3006 In stock	Spring	£2.40 £2.00
12	ST4117 122 6200 Available to backorder	Idle Speed Screw	£11.15 £9.29
13	ST1113 121 5000 Available to backorder	Inlet Control Lever	£3.31 £2.76
14	ST1113 121 9200 Available to backorder	Spindle	£1.37 £1.14
15	ST1114 122 7400 Available to backorder	Round Head Screw	£1.37 £1.14
16	ST1120 121 5405 Available to backorder	Valve Jet	£11.28 £9.40
17	ST4130 120 8600 Available to backorder	Non-Return Valve	£7.74 £6.45
18	ST1113 121 0800 Available to backorder	End Cover	£17.75 £14.79
19	ST1106 122 7400 Available to backorder	Round Head Screw	£8.09 £6.74
20	ST4117 122 3200 Available to backorder	Torsion Spring	£1.08 £0.90
22	ST1117 122 9000 Available to backorder	E-Clip	£2.15 £1.79
24	ST1110 122 7400 Available to backorder	Round Head Screw	£2.83 £2.36
25	ST1116 122 3000 Available to backorder	Spring	£2.36 £1.97
26	ST1116 122 4200 Available to backorder	Ball	£4.86 £4.05
27	ST4130 121 3000 Available to backorder	Choke Shaft	£15.66 £13.05
28	ST4130 121 2900 Available to backorder	Choke Shutter	£3.58 £2.98
29	ST1115 122 3002 In stock	Spring	£2.40 £2.00
30	ST1120 122 6805 Available to backorder	Low Speed Screw	£11.15 £9.29
32	ST4130 122 6700 Available to backorder	High Speed Screw	£9.77 £8.14
33	ST4130 121 8600 In stock	Washer	£1.14 £0.95
34	ST4130 120 8700 Available to backorder	Control Valve	£9.95 £8.29
36	ST4130 122 3900 Available to backorder	Elbow Connector	£3.86 £3.22
0	ST4130 007 1060 Available to backorder	Set Of Carburettor Parts (Contains Item(s): 2, 3, 7, 8)	£30.62 £25.52
