Genuine Stihl FS280 / G - Carburettor WT-223 ⇥ 2 38 337 990

Name: Genuine Stihl FS280 / G - Carburettor WT-223 ⇥ 2 38 337 990
SKU: FS280_G-group
Price: 0.95 GBP
Availability: InStock

Part No. FS280_G-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl FS280 / G - Carburettor WT-223 ⇥ 2 38 337 990

Description

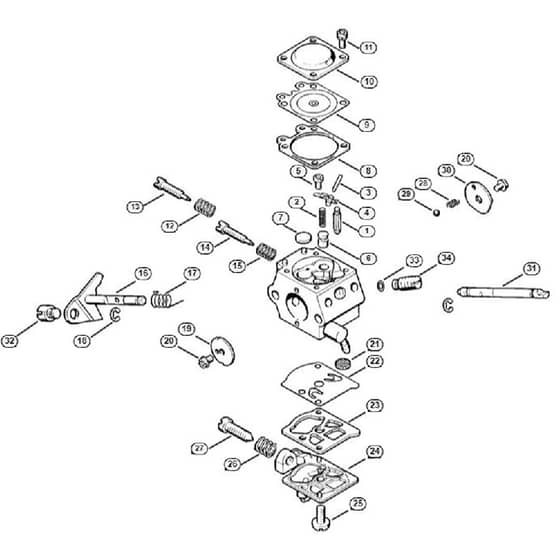

Genuine Stihl FS280 / G - Carburetor WT-223 2 38 337 990

	Part No.	Details
1	ST4116 121 5100 Available to backorder	Inlet Needle	£11.15 £9.29
2	ST1120 122 3001 Available to backorder	Spring	£2.40 £2.00
3	ST1113 121 9200 Available to backorder	Spindle	£1.37 £1.14
4	ST1113 121 5000 Available to backorder	Inlet Control Lever	£3.31 £2.76
5	ST1114 122 7400 Available to backorder	Round Head Screw	£1.37 £1.14
6	ST1120 121 5405 Available to backorder	Valve Jet	£11.28 £9.40
7	ST4117 122 9402 Available to backorder	Plug	£2.15 £1.79
8	ST1120 129 0900 Available to backorder	Gasket	£2.28 £1.90
9	ST1113 121 4705 Available to backorder	Metering Diaphragm	£15.48 £12.90
10	ST1113 121 0800 Available to backorder	End Cover	£17.75 £14.79
11	ST1106 122 7400 Available to backorder	Round Head Screw	£8.09 £6.74
13	ST1118 122 6700 Available to backorder	High Speed Screw	£11.15 £9.29
14	ST4119 122 6801 Available to backorder	Low Speed Screw	£12.43 £10.36
15	ST1115 122 3002 In stock	Spring	£2.40 £2.00
16	ST4119 120 7102 Available to backorder	Throttle Shaft with Lever	£18.83 £15.69
17	ST4119 122 3200 Available to backorder	Torsion Spring	£3.02 £2.52
18	ST1117 122 9000 Available to backorder	E-Clip	£2.15 £1.79
19	ST1121 121 3301 Available to backorder	Throttle Shutter	£4.55 £3.79
20	ST1110 122 7400 Available to backorder	Round Head Screw	£2.83 £2.36
21	ST1114 121 7800 Available to backorder	Strainer	£3.41 £2.84
22	ST1121 121 4801 Available to backorder	Pump Diaphragm	£15.48 £12.90
23	ST1120 129 0905 Available to backorder	Gasket	£2.28 £1.90
24	ST4119 120 0800 Available to backorder	End Cover	£19.91 £16.59
25	ST1114 122 7100 Available to backorder	Screw	£2.63 £2.19
26	ST4117 122 3006 In stock	Spring	£2.40 £2.00
27	ST4117 122 6200 Available to backorder	Idle Speed Screw	£11.15 £9.29
28	ST1116 122 3000 Available to backorder	Spring	£2.36 £1.97
29	ST1116 122 4200 Available to backorder	Ball	£4.86 £4.05
30	ST1123 121 2901 Available to backorder	Choke Shutter	£4.55 £3.79
31	ST4126 121 3000 Available to backorder	Choke Shaft	£19.09 £15.91
32	ST4117 121 8900 Available to backorder	Pin	£9.95 £8.29
33	ST4130 121 8600 In stock	Washer	£1.14 £0.95
34	ST4119 120 8700 Available to backorder	Control Valve	£19.99 £16.66
0	ST4119 007 1061 Available to backorder	Set Of Carburettor Parts (Contains Items 8, 9, 22, 23)	£30.62 £25.52
