Genuine Stihl FS250 / R - Carburettor C1Q-S51, C1Q-S36 (09.2003)

Name: Genuine Stihl FS250 / R - Carburettor C1Q-S51, C1Q-S36 (09.2003)
SKU: FS250_R-group
Price: 0.57 GBP
Availability: InStock

Part No. FS250_R-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

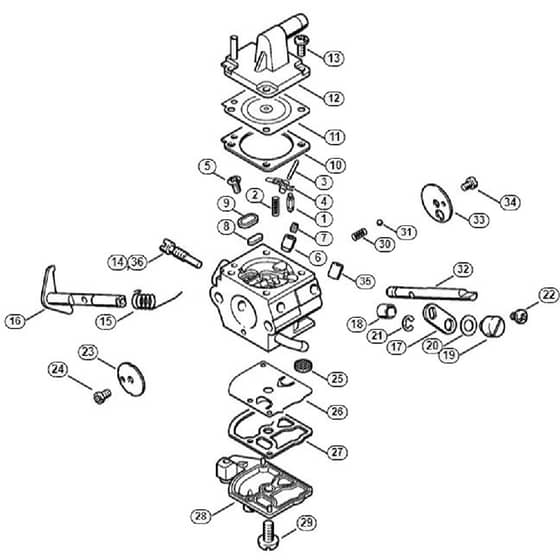

Genuine Stihl FS250 / R - Carburettor C1Q-S51, C1Q-S36 (09.2003)

Description

Genuine Stihl FS250 / R - Carburetor C1Q-S51, C1Q-S36 (09.2003)

	Part No.	Details
0	ST4134 120 0651 Available to backorder	Carburettor C1Q-S51C (Contains Item(s): 1 - 34)	£127.56 £106.30
1	STZ000 018 Z000 Available to backorder	Inlet Needle	£9.29 £9.29
2	ST1120 122 3004 Available to backorder	Spring	£2.40 £2.00
3	ST1120 121 9200 Available to backorder	Spindle	£1.37 £1.14
4	ST1125 121 5000 Available to backorder	Inlet Control Lever	£3.41 £2.84
5	ST1120 122 6600 Available to backorder	Collar Screw	£4.32 £3.60
7	ST1130 121 5601 Available to backorder	Fixed Jet 0.44	£10.01 £8.34
6	ST4137 122 5100 Available to backorder	Outlet Valve	£13.66 £11.38
8	ST4119 121 0700 Available to backorder	Cup Plug	£3.77 £3.14
9	ST4129 121 0700 Available to backorder	Cup Plug	£3.64 £3.03
11	ST0000 121 4700 Available to backorder	Metering Diaphragm	£15.48 £12.90
10	ST4129 129 0902 Available to backorder	Metering Gasket	£2.28 £1.90
12	ST4134 121 0801 Available to backorder	End Cover	£17.75 £14.79
13	ST1120 122 6601 Available to backorder	Collar Screw	£4.32 £3.60
14	ST1130 122 6300 Available to backorder	Idle Speed Screw	£11.15 £9.29
15	ST1123 122 3000 Available to backorder	Spring	£2.40 £2.00
16	ST4134 120 7100 Available to backorder	Throttle Shaft With Lever	£17.98 £14.98
17	ST4134 123 7300 Available to backorder	Lever	£3.31 £2.76
18	ST4134 122 5000 Available to backorder	Spacer Sleeve	£1.14 £0.95
19	ST4128 121 8900 Available to backorder	Throttle Cable Pin	£8.88 £7.40
20	ST4137 121 8600 Available to backorder	Washer	£1.14 £0.95
21	ST1120 122 9000 Available to backorder	E-Clip	£2.15 £1.79
22	ST9079 319 0280 Available to backorder	Flat Head Screw M3x3.5	£0.68 £0.57
23	ST4134 121 3301 Available to backorder	Throttle Shutter	£4.55 £3.79
24	ST1120 122 7400 Available to backorder	Round Head Screw	£4.55 £3.79
25	ST1123 121 7800 Available to backorder	Strainer	£3.41 £2.84
26	ST1129 121 4800 In stock	Pump Diaphragm	£15.96 £13.30
27	ST1123 129 0905 In stock	Pump Gasket	£2.48 £2.07
28	ST4128 121 0800 Available to backorder	End Cover	£17.75 £14.79
29	ST1120 122 7800 Available to backorder	Oval Head Screw	£4.55 £3.79
30	ST4119 122 3002 Available to backorder	Spring	£2.40 £2.00
31	ST4119 122 4200 Available to backorder	Ball	£1.72 £1.43
32	ST4134 121 3000 Available to backorder	Choke Shaft	£17.17 £14.31
33	ST4128 121 2900 Available to backorder	Choke Shutter	£4.55 £3.79
34	ST1125 122 7403 In stock	Round Head Screw	£4.72 £3.93
35	ST4134 121 5402 Available to backorder	Valve Jet	£10.01 £8.34
0	ST4134 007 1060 Available to backorder	Set of Carburettor Parts Contains Item(s): 1, 2, 4, 10, 11, 25 - 27	£48.02 £40.02
