Genuine Stihl FS111 R / A - Engine Ø 40 mm

Ref. Img. Part No. Details
  1 Engine Ø 40mm (Contains Items 2-34) ST4180 020 0203
Engine Ø 40mm (Contains Items 2-34)
Out of stock
£326.76 £272.30

  2 Cylinder With Piston Ø 40mm (Contains Items 3-11) ST4180 020 1209
Cylinder With Piston Ø 40mm (Contains Items 3-11)
Out of stock
£154.08 £128.40

  3 Valve ST4180 025 2010
Valve
Out of stock
£16.99 £14.16

  4 Valve Spring ST4180 025 1600
Valve Spring
Out of stock
£1.76 £1.47

  5 Spring Retainer Plate ST4180 025 3000
Spring Retainer Plate
Out of stock
£1.68 £1.40

  6 Collar Screw M5 (9 Nm) ST4180 038 1700
Collar Screw M5 (9 Nm)
Out of stock
£2.65 £2.21

  7 Piston Ø 40mm (Contains Items 8-10) ST4180 030 2001
Piston Ø 40mm (Contains Items 8-10)
Out of stock
£81.72 £68.10

  8 Piston Ring Ø 40x1.2mm ST4180 034 3000
Piston Ring Ø 40x1.2mm
Out of stock
£8.30 £6.92

  9 Snap Ring 8x0.7 ST9463 650 0805
Snap Ring 8x0.7
Out of stock
£0.84 £0.70

  10 Piston Pin 8x5x22 ST4137 034 1500
Piston Pin 8x5x22
Out of stock
£7.04 £5.87

  11 Pan Head Self-Tapping Screw Is-D5x24 ((9 Nm)) ST9075 478 4159
Pan Head Self-Tapping Screw Is-D5x24 ((9 Nm))
In stock
£1.13 £0.94

  12 Crankshaft ST4180 030 0410
Crankshaft
Out of stock
£199.92 £166.60

  13 Oil Seal 12x22x7 ST9639 003 1231
Oil Seal 12x22x7
Out of stock
£5.78 £4.82

  14 Engine Pan ST4180 021 2500
Engine Pan
Out of stock
£31.69 £26.41

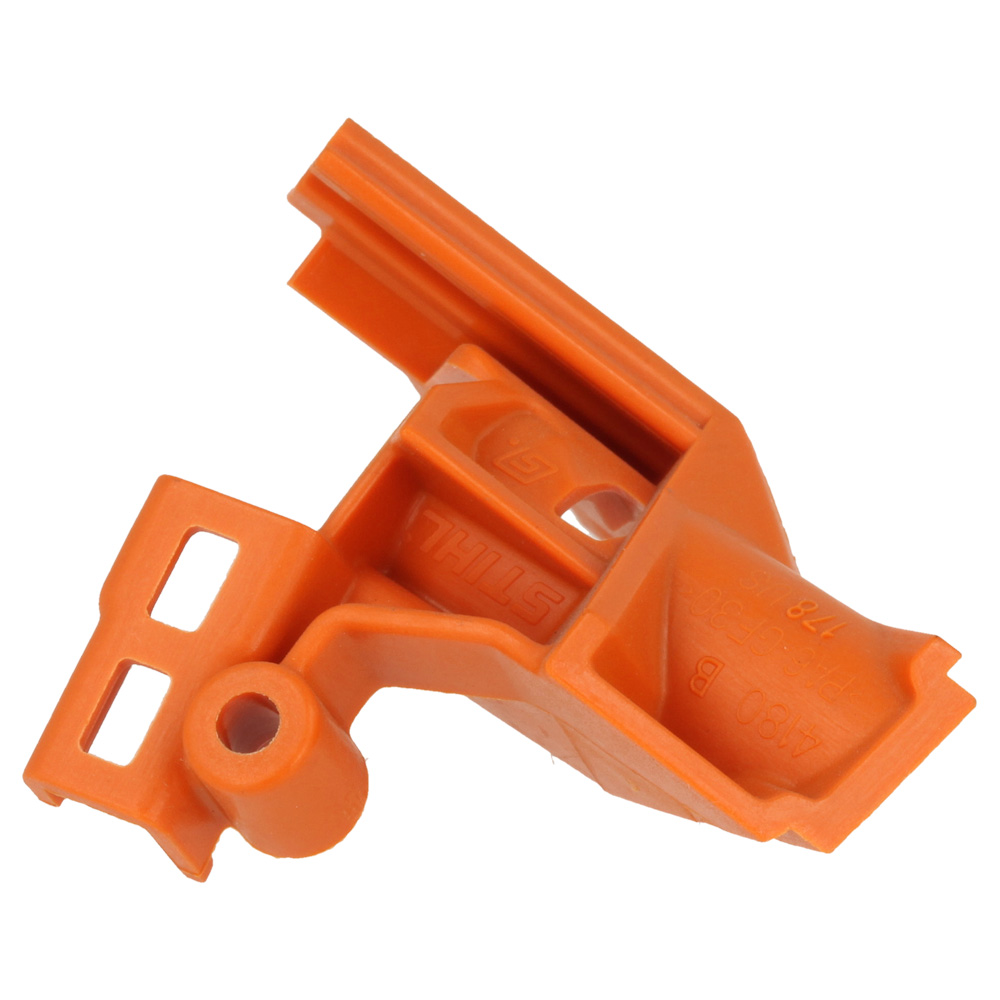

  15 Lead Retainer ST4180 448 1201
Lead Retainer
Out of stock
£3.65 £3.04

  16 Pan Head Self-Tapping Screw Is-P4x10 ((1 Nm)) ST9074 478 2970
Pan Head Self-Tapping Screw Is-P4x10 ((1 Nm))
Out of stock
£0.96 £0.80

  17 Impulse Hose ST4180 141 8602
Impulse Hose
Out of stock
£3.78 £3.15

  18 Cam Wheel ST4180 030 1800
Cam Wheel
Out of stock
£8.80 £7.33

  19 Pin 5x28 ST4180 038 0801
Pin 5x28
Out of stock
£2.36 £1.97

  20 Cam Follower ST4180 038 1900
Cam Follower
Out of stock
£10.88 £9.07

  21 Cover ST4180 038 1301
Cover
In stock
£8.64 £7.20

  22 Pan Head Self-Tapping Screw Is-D4x18 ((4.5 Nm)) ST9075 478 3018
Pan Head Self-Tapping Screw Is-D4x18 ((4.5 Nm))
Out of stock
£0.96 £0.80

  23 Pushrod ST4180 038 2600
Pushrod
Out of stock
£1.90 £1.58

  24 Rocker Arm ST4282 038 1000
Rocker Arm
Out of stock
£2.36 £1.97

  25 Sleeve ST4180 038 2000
Sleeve
Out of stock
£3.12 £2.60

  26 Lock Nut M5 ST4180 038 2700
Lock Nut M5
Out of stock
£1.39 £1.16

  27 Gasket ST4180 029 0500
Gasket
Out of stock
£1.50 £1.25

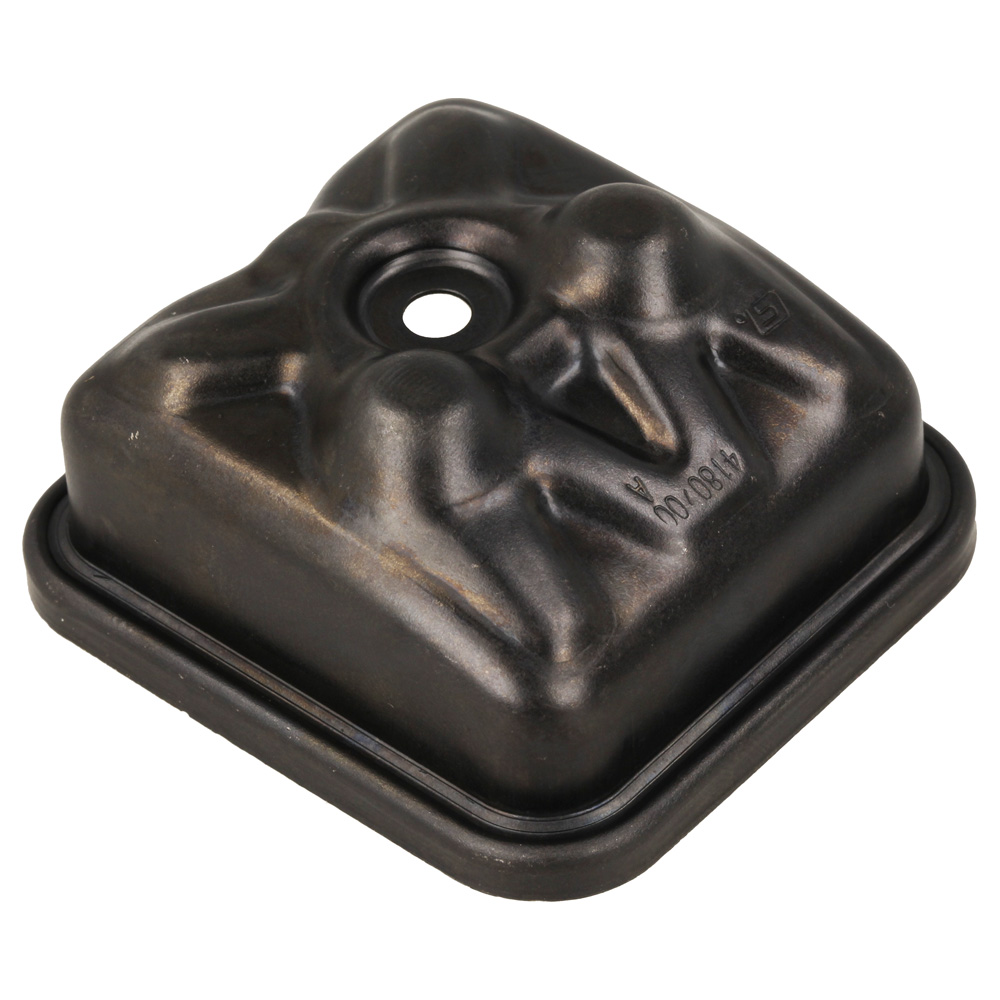

  28 Valve Cover ST4180 025 1100
Valve Cover
Out of stock
£4.56 £3.80

  29 Spline Screw Is-M5x30 ((5 Nm)) ST9022 346 1070
Spline Screw Is-M5x30 ((5 Nm))
Out of stock
£1.27 £1.06

  30 Sealing Ring 5x9x1 ST9636 815 0270
Sealing Ring 5x9x1
Out of stock
£0.55 £0.46

  31 Muffler Gasket ST4180 149 0600
Muffler Gasket
Out of stock
£6.54 £5.45

  32 Gasket ST4114 149 1205
Gasket
In stock
£1.56 £1.30

  33 Gasket ST4180 129 0907
Gasket
Out of stock
£2.52 £2.10

  34 Gasket ST4180 129 0900
Gasket
Out of stock
£2.53 £2.11

  35 Setting Gauge ST4180 893 6400
Setting Gauge
Out of stock
£0.40 £0.33

  36 Set Of Gaskets (Contains Items 13, 27, 30-34) ST4180 007 1036
Set Of Gaskets (Contains Items 13, 27, 30-34)
Out of stock
£16.56 £13.80

  37 Valve Clearance Setting Kit (Contains Items 27, 30, 35) ST4180 007 1005
Valve Clearance Setting Kit (Contains Items 27, 30, 35)
In stock
£0.72 £0.60

  38 Tube Of Sealant HT Red ST0783 830 2000
Tube Of Sealant HT Red
In stock
£18.34 £15.28


Description

Genuine Stihl FS111 R / A - Engine Ø 40 mm
