Genuine Stihl FS106 / F - Carburettor SK5, C1Q-SK5

Name: Genuine Stihl FS106 / F - Carburettor SK5, C1Q-SK5
SKU: FS106_F-group
Price: 1.14 GBP
Availability: InStock

Part No. FS106_F-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl FS106 / F - Carburettor SK5, C1Q-SK5

Description

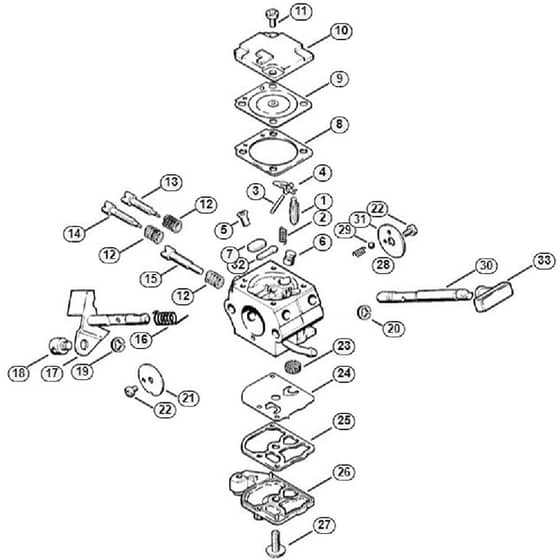

Genuine Stihl FS106 / F - Carburetor SK5, C1Q-SK5

	Part No.	Details
1	STZ000 018 Z000 Available to backorder	Inlet Needle	£9.29 £9.29
2	ST1120 122 3004 Available to backorder	Spring	£2.40 £2.00
3	ST1120 121 9200 Available to backorder	Spindle	£1.37 £1.14
4	ST1125 121 5000 Available to backorder	Inlet Control Lever	£3.41 £2.84
5	ST1120 122 6600 Available to backorder	Collar Screw	£4.32 £3.60
7	ST4129 121 0700 Available to backorder	Cup Plug	£3.64 £3.03
8	ST4129 129 0902 Available to backorder	Metering Gasket	£2.28 £1.90
9	ST4129 121 4700 Available to backorder	Metering Diaphragm	£15.48 £12.90
10	ST1129 121 0800 Available to backorder	End Cover	£14.36 £11.97
11	ST4132 122 6600 Available to backorder	Collar Screw	£4.55 £3.79
12	ST1120 122 3005 In stock	Spring	£2.40 £2.00
13	ST4129 122 6700 Available to backorder	High Speed Screw	£8.98 £7.48
14	ST4129 122 6800 Available to backorder	Low Speed Screw	£12.43 £10.36
16	ST1123 122 3000 Available to backorder	Spring	£2.40 £2.00
17	ST4132 120 7101 Available to backorder	Throttle Shaft With Lever	£20.80 £17.33
18	ST4119 121 8900 Available to backorder	Pin	£8.88 £7.40
19	ST1120 122 9000 Available to backorder	E-Clip	£2.15 £1.79
20	ST1125 122 9001 Available to backorder	E-Clip	£2.15 £1.79
21	ST4129 121 3300 Available to backorder	Throttle Shutter	£5.05 £4.21
22	ST1125 122 7403 In stock	Round Head Screw	£4.72 £3.93
23	ST1123 121 7800 Available to backorder	Strainer	£3.41 £2.84
24	ST1129 121 4800 In stock	Pump Diaphragm	£15.96 £13.30
25	ST1123 129 0905 In stock	Pump Gasket	£2.48 £2.07
26	ST4129 121 0800 Available to backorder	End Cover	£18.86 £15.72
27	ST1120 122 7800 Available to backorder	Oval Head Screw	£4.55 £3.79
28	ST4119 122 3002 Available to backorder	Spring	£2.40 £2.00
29	ST4119 122 4200 Available to backorder	Ball	£1.72 £1.43
30	ST4132 121 3000 Available to backorder	Choke Shaft	£18.19 £15.16
31	ST4119 121 2901 Available to backorder	Choke Shutter	£4.55 £3.79
0	ST4134 007 1060 Available to backorder	Set Of Carburettor Items (Contains Parts 1, 2, 4, 8, 9, 23-25)	£48.02 £40.02
