Genuine Stihl FS100 R / V - Engine Ø 40 mm

Name: Genuine Stihl FS100 R / V - Engine Ø 40 mm
SKU: FS100_R_V-group
Price: 0.38 GBP
Availability: InStock

Part No. FS100_R_V-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

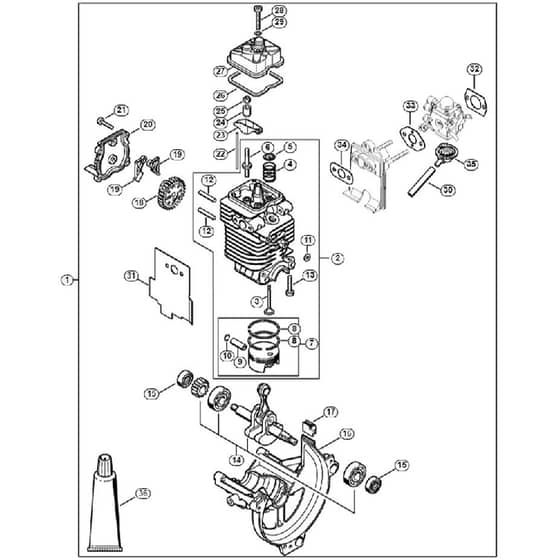

Genuine Stihl FS100 R / V - Engine Ø 40 mm

Description

Genuine Stihl FS100 R / V - Engine Ø 40 mm

	Part No.	Details
1	ST4180 020 0200 Available to backorder	Engine Ø 40mm (Contains Items 2-36)	£343.20 £286.00
2	ST4180 020 1205 Available to backorder	Cylinder With Piston Ø 40mm (Contains Items 3-13)	£195.84 £163.20
3	ST4180 025 2002 Available to backorder	Valve	£15.37 £12.81
4	ST4180 025 1600 Available to backorder	Valve Spring	£1.60 £1.33
5	ST4180 025 3000 In stock	Spring Retainer Plate	£1.43 £1.19
6	ST4180 038 1700 Available to backorder	Collar Screw M5	£2.40 £2.00
7	ST4180 030 2001 Available to backorder	Piston Ø 40mm (Contains Items 8-10)	£79.20 £66.00
8	ST4180 034 3000 Available to backorder	Piston Ring Ø 40x1.2mm	£7.61 £6.34
9	ST4137 034 1500 Available to backorder	Piston Pin 8x5x22	£6.60 £5.50
10	ST9463 650 0805 In stock	Snap Ring 8x0.7	£0.72 £0.60
11	ST4180 404 9300 Available to backorder	Washer	£1.14 £0.95
12	ST4180 038 0803 In stock	Pin 5x26.5	£2.14 £1.78
13	ST9075 478 4159 In stock	Pan Head Self-Tapping Screw Is-D5x24	£0.95 £0.79
14	ST4180 030 0410 Available to backorder	Crankshaft	£207.72 £173.10
15	ST9639 003 1231 In stock	Oil Seal 12x22x7	£5.56 £4.63
16	ST4180 021 2500 In stock	Engine Pan	£30.42 £25.35
17	ST4180 182 0700 Available to backorder	Grommet	£1.60 £1.33
18	ST4180 030 1800 In stock	Cam Wheel	£8.26 £6.88
19	ST4180 038 1900 Available to backorder	Cam Follower	£10.46 £8.72
20	ST4180 038 1300 Available to backorder	Cover	£8.29 £6.91
21	ST9075 478 3018 In stock	Pan Head Self-Tapping Screw Is-D4x18	£0.83 £0.69
22	ST4180 038 2600 Available to backorder	Pushrod	£1.78 £1.48
23	ST4282 038 1000 Available to backorder	Rocker Arm	£2.28 £1.90
24	ST4180 038 2000 Available to backorder	Sleeve	£2.96 £2.47
25	ST4180 038 2700 Available to backorder	Lock Nut M5	£1.14 £0.95
26	ST4180 029 0500 In stock	Gasket	£1.43 £1.19
27	ST4180 025 1100 Available to backorder	Valve Cover	£4.45 £3.71
28	ST9022 346 1070 In stock	Spline Screw Is-M5x30	£1.08 £0.90
29	ST9636 815 0270 Available to backorder	Sealing Ring 5x9x1	£0.46 £0.38
30	ST4180 141 8601 In stock	Impulse Hose	£3.43 £2.86
31	ST4180 149 0600 In stock	Muffler Gasket	£6.13 £5.11
32	ST4114 149 1205 In stock	Gasket	£1.31 £1.09
33	ST4140 129 0900 In stock	Gasket	£2.36 £1.97
34	ST4180 129 0900 In stock	Gasket	£2.36 £1.97
35	ST4180 121 0801 Available to backorder	End Cover	£17.75 £14.79
