Genuine Stihl BR800 C-E - Engine

Name: Genuine Stihl BR800 C-E - Engine
SKU: BR800_C-E_A-group
Price: 0.31 GBP
Availability: InStock

Part No. BR800_C-E_A-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Genuine Stihl BR800 C-E / A - Engine

	Part No.	Details
1	ST4283 020 0200 Available to backorder	Engine (Contains Items 2-30)	£338.59 £282.16
2	ST4283 020 1200 Available to backorder	Cylinder with Piston Ø 50mm (Contains Items 3-11, 15)	£340.56 £283.80
3	ST4282 025 1801 Available to backorder	Inlet Valve	£13.43 £11.19
4	ST4282 025 1903 In stock	Exhaust Valve	£26.40 £22.00
5	ST4282 025 1600 Available to backorder	Valve Spring	£1.60 £1.33
6	ST4180 025 3000 In stock	Spring Retainer Plate	£1.43 £1.19
7	ST4180 038 1700 Available to backorder	Collar Screw M5	£2.40 £2.00
8	ST4283 030 2003 Available to backorder	Piston Ø 50 mm (Contains Items 9-11)	£130.92 £109.10
9	ST4283 034 3006 In stock	Piston ring Ø 50 x 1,2 mm	£11.78 £9.82

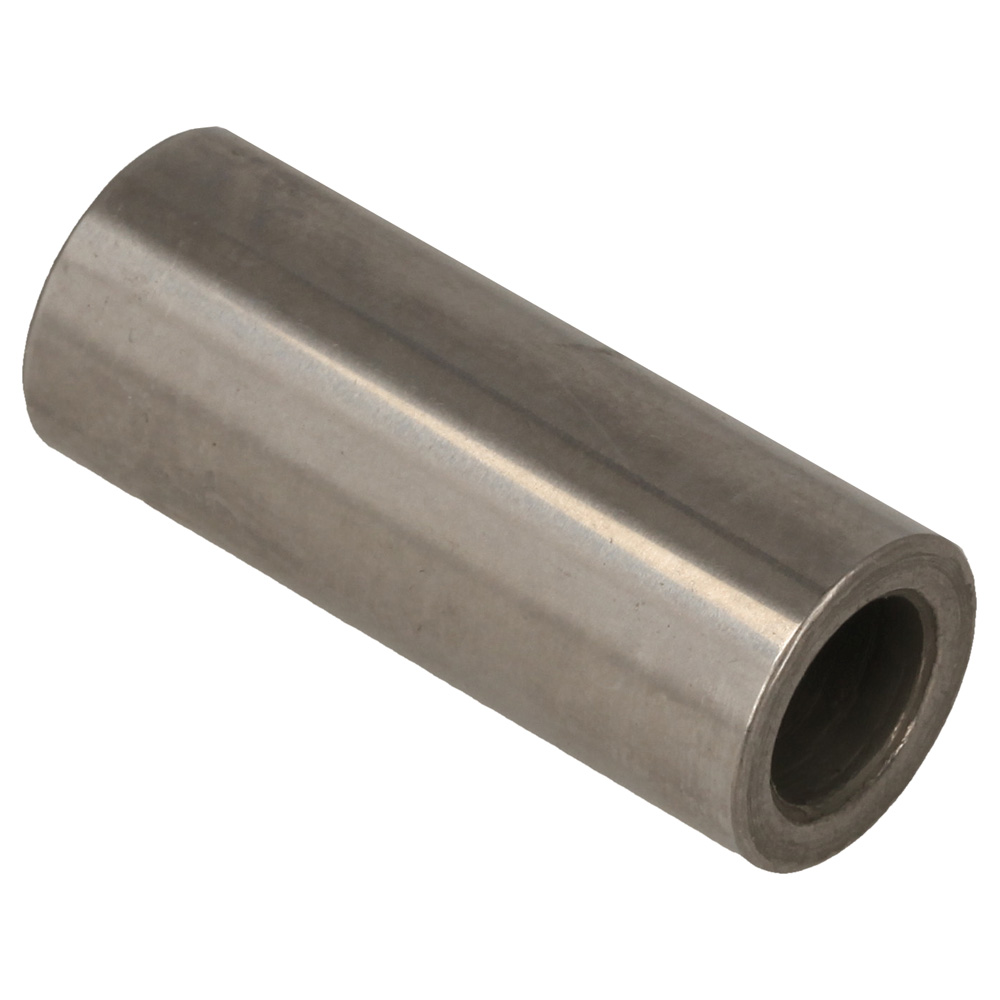

10	ST4283 034 1500 Available to backorder	Piston Pin	£8.42 £7.02
11	ST9463 650 1300 Available to backorder	Snap Ring 13x1	£0.79 £0.66
12	ST4283 030 0401 Available to backorder	Crankshaft	£314.83 £262.36
13	ST9639 003 1585 In stock	Oil Seal 15x25x5	£6.96 £5.80

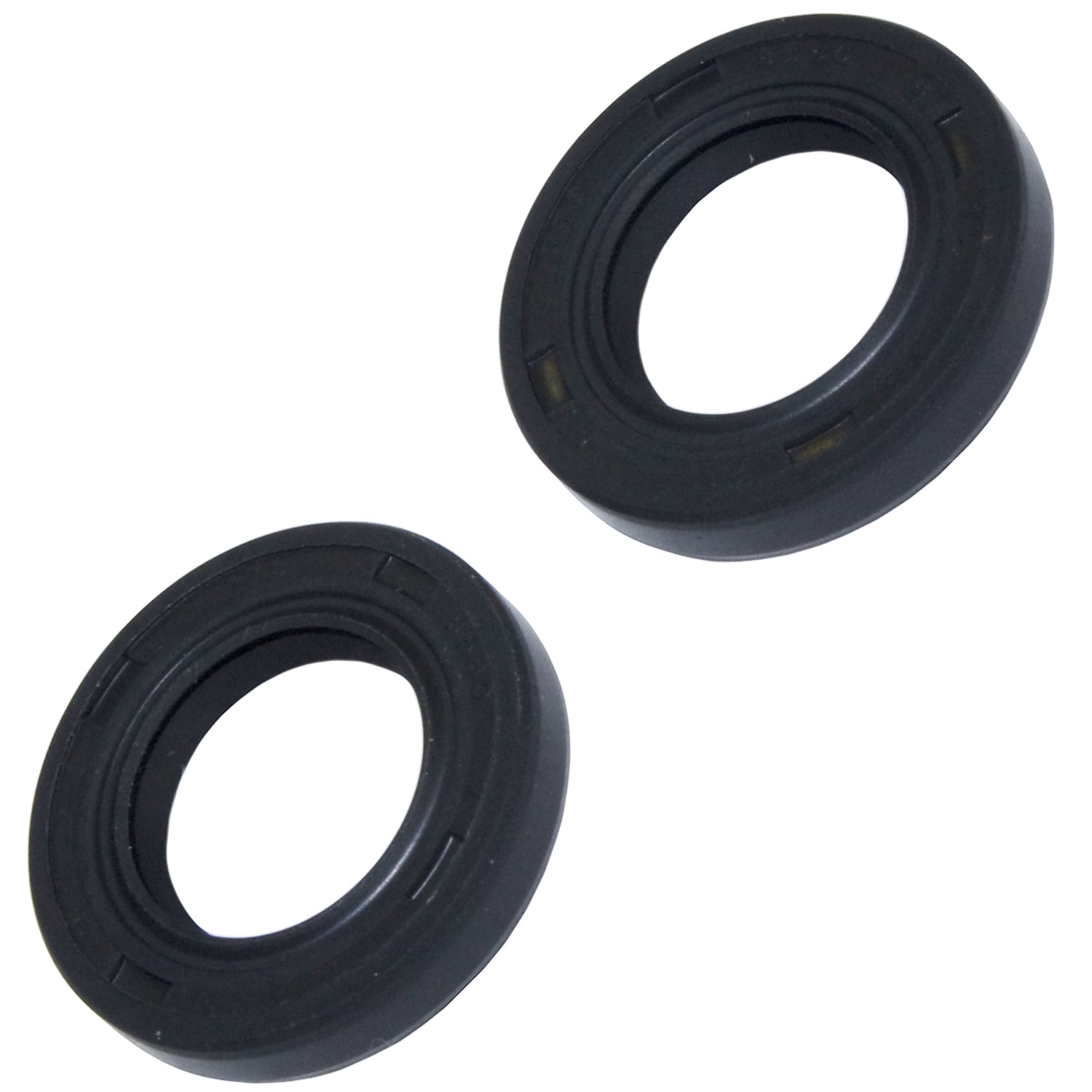

13	3778 In stock	Oil Seal Set	£2.02 £1.68
14	ST4283 021 2500 Available to backorder	Engine Pan	£24.80 £20.67
15	ST9022 341 1370 In stock	Spline Screw Is-M6x30	£1.31 £1.09
16	ST4283 030 1800 Available to backorder	Cam Wheel	£9.34 £7.78
17	ST4180 038 0801 Available to backorder	Pin 5x28	£2.28 £1.90
18	ST4283 038 1900 Available to backorder	Cam Follower	£16.06 £13.38
19	ST4283 038 1300 Available to backorder	Cover	£9.46 £7.88
20	ST9075 478 3016 Available to backorder	Pan Head Self-Tapping Screw Is-D4x16	£0.79 £0.66
21	ST4283 038 2600 Available to backorder	Pushrod	£2.40 £2.00
22	ST4283 038 1000 Available to backorder	Rocker Arm	£2.40 £2.00
23	ST4283 038 2000 Available to backorder	Sleeve	£2.63 £2.19
24	ST4180 038 2700 Available to backorder	Lock Nut M5	£1.14 £0.95
25	ST4283 020 1001 Available to backorder	Valve Cover (Contains Item 26)	£7.40 £6.17
26	ST4283 029 0500 Available to backorder	Gasket	£1.37 £1.14
27	ST9636 815 0270 Available to backorder	Sealing Ring 5x9x1	£0.46 £0.38
28	ST9022 346 1070 In stock	Spline Screw Is-M5x30	£1.08 £0.90
29	ST4282 149 0600 In stock	Muffler Gasket	£2.50 £2.08
30	ST4283 129 0900 In stock	Gasket	£2.36 £1.97
31	ST4180 893 6400 In stock	Setting Gauge	£0.37 £0.31
32	ST4283 007 1001 Available to backorder	Valve Clearance Setting Kit	£2.96 £2.47
