Genuine Stihl BR700 / E - Carburetor 4282/13

Name: Genuine Stihl BR700 / E - Carburetor 4282/13
SKU: BR700_E-group
Price: 0.57 GBP
Availability: InStock

Part No. BR700_E-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl BR700 / E - Carburetor 4282/13

Description

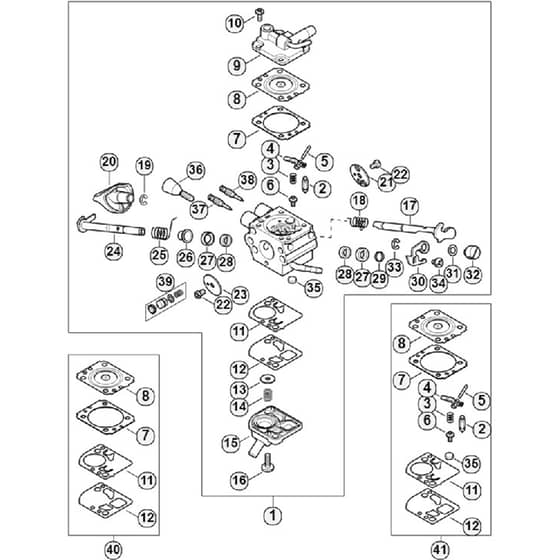

Genuine Stihl BR700 / E - Carburetor 4282/13

	Part No.	Details
1	ST4282 120 0613 Available to backorder	Carburettor 4282/13	£197.76 £164.80
2	STZ000 018 Z000 Available to backorder	Inlet Needle	£9.29 £9.29
3	ST1120 122 3004 Available to backorder	Spring	£2.40 £2.00
4	ST4229 121 5000 Available to backorder	Inlet Control Lever	£3.31 £2.76
5	ST1120 121 9200 Available to backorder	Spindle	£1.37 £1.14
6	ST0000 122 7101 In stock	Screw	Was £4.40 £3.67 Special Price £3.12 £2.60
7	ST4134 129 0905 Available to backorder	Gasket	£2.28 £1.90
8	ST4134 121 4702 Available to backorder	Metering Diaphragm	£15.48 £12.90
9	STZ010 028 A001 Available to backorder	Metering Cover Assy	£23.44 £19.53
10	ST1120 122 6601 Available to backorder	Collar Screw	£4.32 £3.60
11	ST4180 121 4802 In stock	Pump Diaphragm	£16.04 £13.37
12	ST4180 129 0908 In stock	Pump Gasket	£2.36 £1.97
13	ST4180 121 8602 Available to backorder	Washer	£1.14 £0.95
14	ST4180 122 3006 Available to backorder	Spring	£2.40 £2.00
15	ST4180 121 0803 Available to backorder	End Cover	£17.75 £14.79
16	ST4242 122 7100 Available to backorder	Screw	£6.04 £5.03

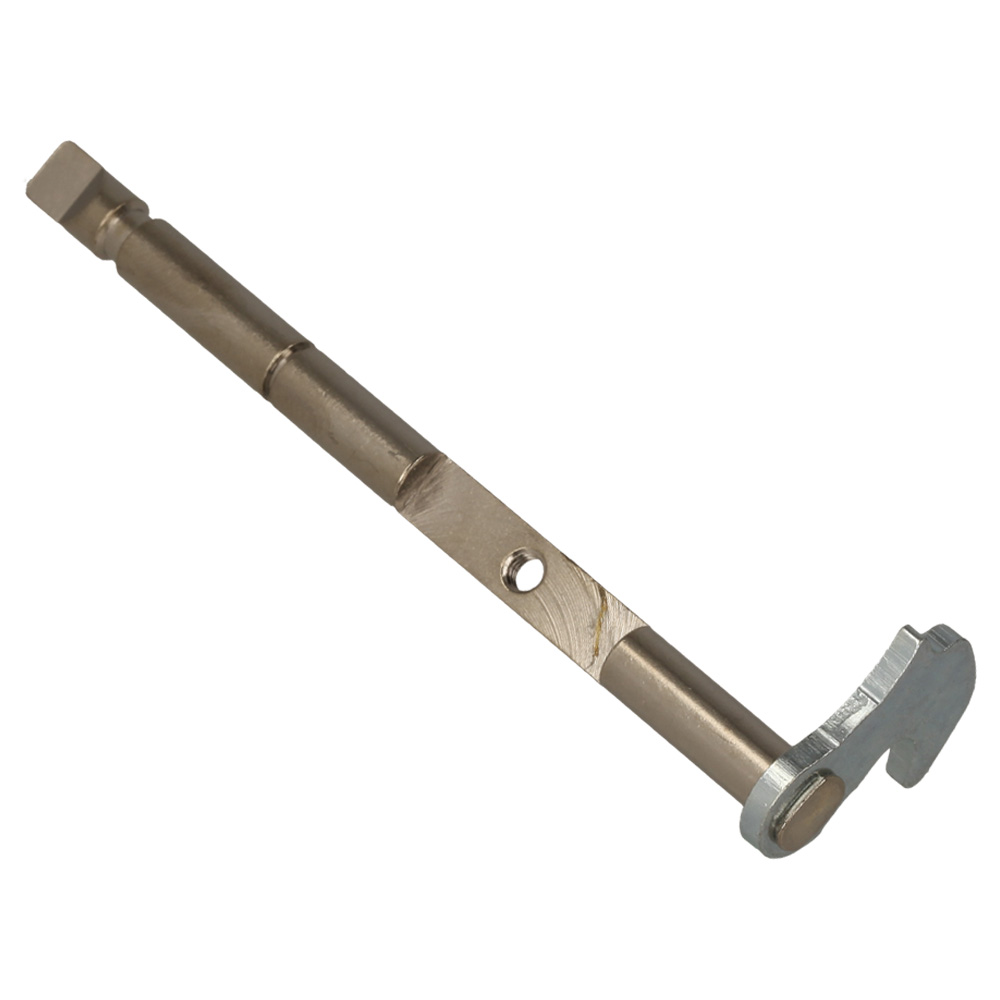

17	STZ010 041 A004 In stock	Choke Shaft Assy	£21.94 £18.28
18	ST4282 122 3005 Available to backorder	Spring	£2.40 £2.00
19	ST4282 122 9000 In stock	E-Clip	£2.15 £1.79

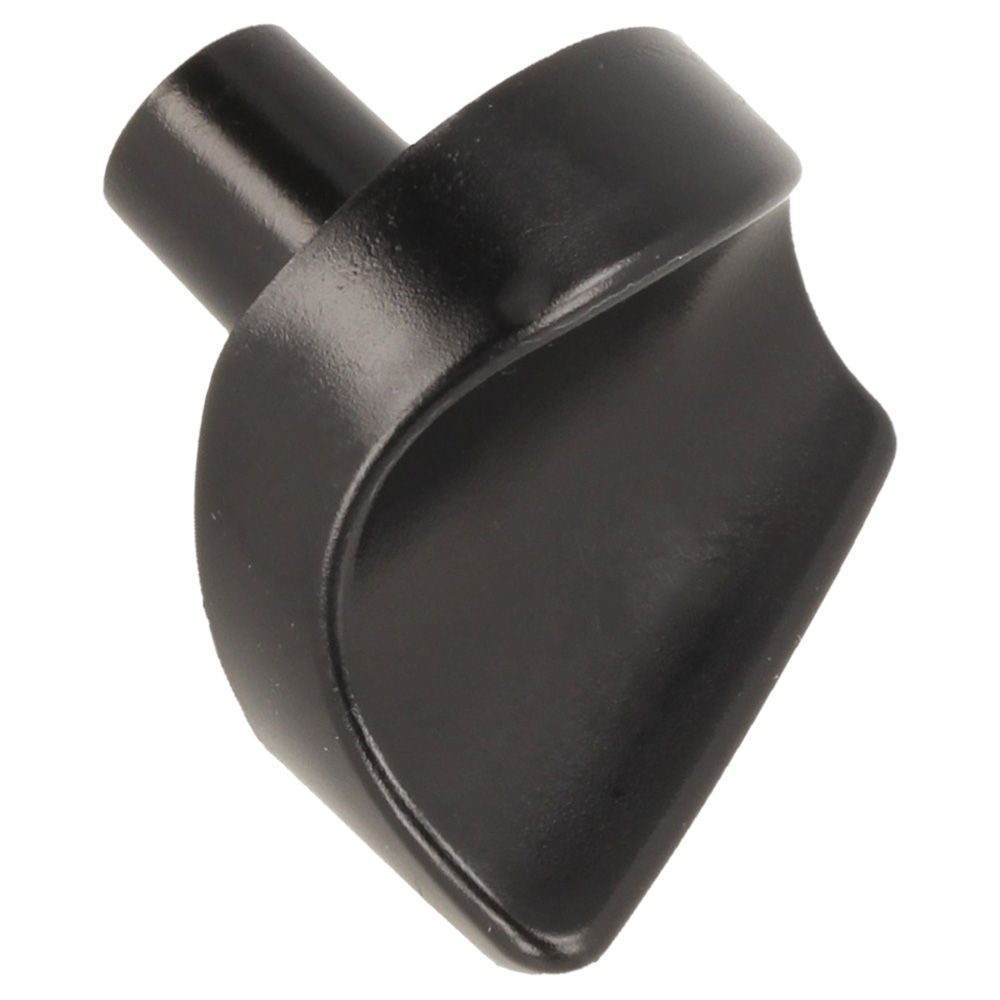

20	STZ010 042 Z008 In stock	Choke Lever	£6.60 £5.50
21	ST4282 121 2900 Available to backorder	Choke Shutter	£4.55 £3.79
22	ST1125 122 7403 In stock	Round Head Screw	£4.72 £3.93
23	ST4282 121 3300 Available to backorder	Throttle Shutter	£4.55 £3.79
24	ST4283 120 7100 Available to backorder	Throttle Shaft Lever	£18.79 £15.66
25	ST4283 122 3000 Available to backorder	Spring	£2.40 £2.00
26	ST4283 122 9100 Available to backorder	Bushing	£6.60 £5.50
27	ST4238 121 9400 Available to backorder	Ring	£4.09 £3.41
28	ST4238 122 3600 Available to backorder	Sealing Ring	£6.14 £5.12
29	ST4282 122 5000 Available to backorder	Spacer Sleeve	£1.14 £0.95
30	ST4282 121 3500 Available to backorder	Throttle Lever	£6.72 £5.60
31	ST4137 121 8600 Available to backorder	Washer	£1.14 £0.95
32	ST4128 121 8901 Available to backorder	Pin	£8.88 £7.40
33	ST1120 122 9000 Available to backorder	E-Clip	£2.15 £1.79
34	ST9079 319 0280 Available to backorder	Flat Head Screw M3x3.5	£0.68 £0.57
35	ST1123 121 7800 Available to backorder	Strainer	£3.41 £2.84
36	STZ010 035 A005 Available to backorder	Idle Speed Screw	£11.14 £9.28
37	ST4282 122 6801 Available to backorder	Low Speed Screw	£11.15 £9.29

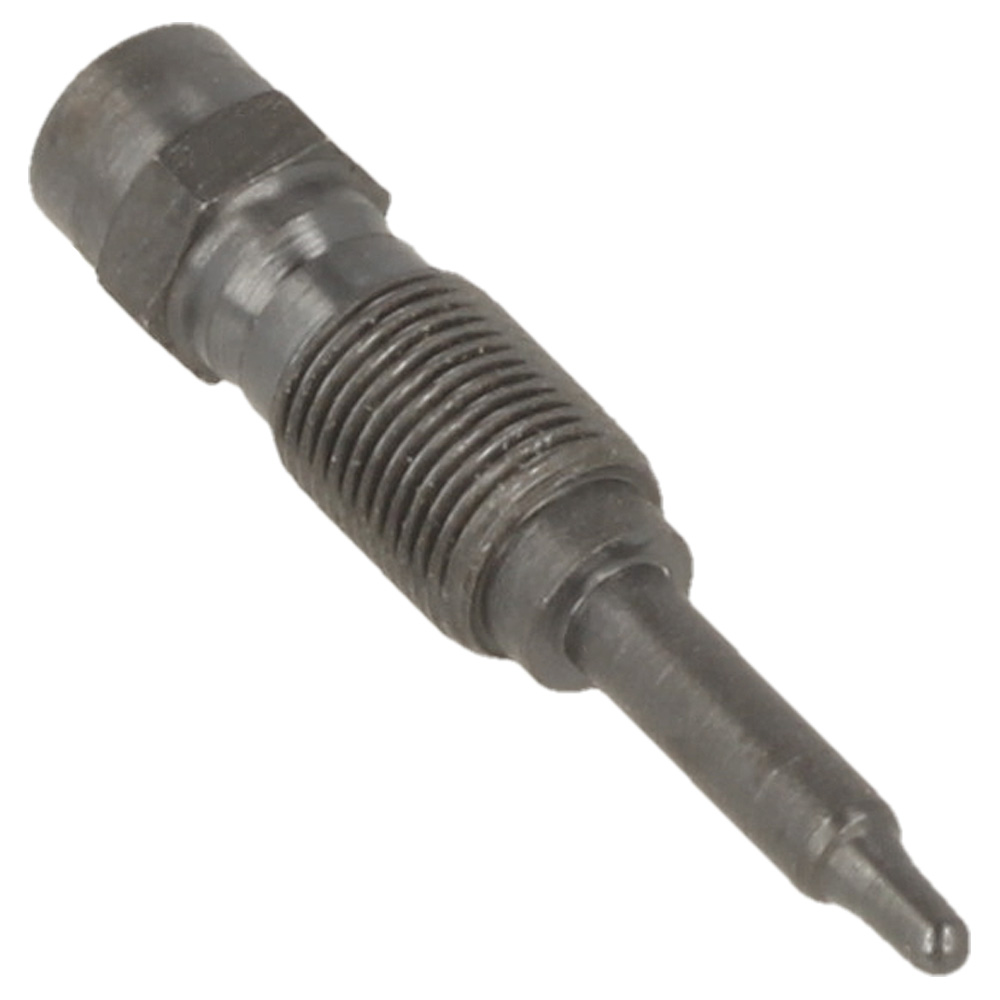

38	ST4282 122 6707 Available to backorder	High Speed Screw	£11.15 £9.29
39	ST4283 120 9700 Available to backorder	Pump Piston Kit	£16.61 £13.84
40	ST4283 007 1700 Available to backorder	Set of Carburettor Parts (Contains Items 7, 8, 11, 12)	£30.62 £25.52
