Genuine Stihl BR320 / A - Crankcase, Cylinder

Name: Genuine Stihl BR320 / A - Crankcase, Cylinder
SKU: BR320_A-group
Price: 0.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Genuine Stihl BR320 / A - Crankcase, Cylinder

Description

Genuine Stihl BR320 / A - Crankcase, Cylinder

Be the first to review this product

0 product questions

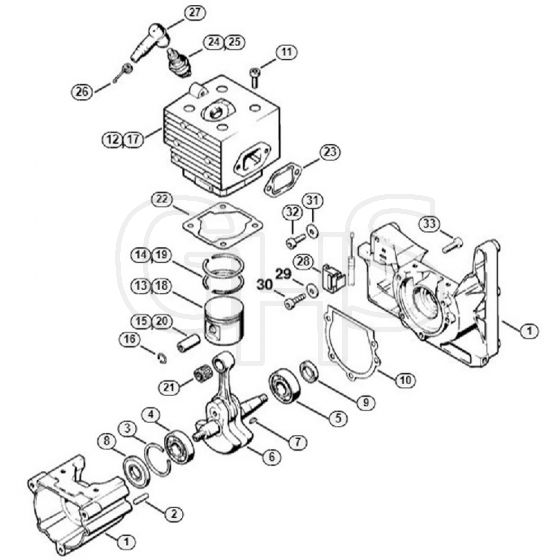

	Part No.	Details
1	ST4203 020 2106 Out of stock	Crankcase (Contains Items 2, 4, 5, 33)	£98.87 £82.39
2	ST9371 470 2610 Out of stock	Cylindrical Pin 5x18	£0.59 £0.49
3	ST9465 620 2620 Out of stock	Snap Ring 37	£1.27 £1.06
4	ST9523 003 4260 In stock	Grooved Ball Bearing 15x35x13	£16.94 £14.12
5	ST9503 003 0340 Out of stock	Grooved Ball Bearing 6202	£15.13 £12.61
6	ST4203 030 0400 Out of stock	Crankshaft (Contains Items 7)	£295.50 £246.25
7	ST1120 036 8500 In stock	Woodruff Key 2x3.7	£1.01 £0.84
8	ST9640 003 1600 Out of stock	Oil Seal 15x29.6x4	£6.66 £5.55
9	ST9640 003 1340 Out of stock	Oil Seal 13x22x5	£5.77 £4.81
10	ST4203 029 0500 Out of stock	Gasket	£1.39 £1.16
11	ST9022 371 1050 Out of stock	Spline screw IS-M5x25	£0.98 £0.82
12	ST4203 020 1200 Out of stock	Cylinder with piston Ø 41 mm (Contains Items 13-16))	£320.59 £267.16
13	ST4203 030 2000 Out of stock	Piston Ø 41mm (Contains Items 14-16)	£89.27 £74.39
14	ST4203 034 3000 Out of stock	Piston Ring Ø 41x1.5mm	£8.15 £6.79
15	ST4119 034 1500 Out of stock	Piston Pin 10x6.5x28	£7.30 £6.08
16	ST9463 650 1000 In stock	Snap Ring 10	£0.59 £0.49
21	ST9512 003 2344 In stock	Needle Cage 10x14x13	£7.88 £6.57
22	ST4203 029 2300 Out of stock	Cylinder Gasket	£3.25 £2.71
23	ST1115 149 0600 Out of stock	Muffler Gasket	£2.16 £1.80
24	ST0000 400 7000 Out of stock	NGK Spark Plug	£3.14 £2.62
25	ST1110 400 7015 Out of stock	Bosch Spark Plug	£3.91 £3.26
26	ST0000 998 0603 Out of stock	Torsion Spring	£1.31 £1.09
27	ST1106 405 1000 Out of stock	Spark Plug Boot	£6.52 £5.43
28	ST4203 180 2150 Out of stock	Support (Contains Items 29, 30)	£3.50 £2.92
31	ST9291 021 0121 Out of stock	Washer 5.3	£0.30 £0.25
32	ST9022 341 0980 In stock	Spline Screw IS-M5x16	£0.85 £0.71
33	ST9022 371 1020 In stock	Spline Screw IS-M5x20	£0.85 £0.71
0	ST4203 007 1050 Out of stock	Set Of Gaskets (Contains Items 8-10, 22, 23)	£20.83 £17.36
