Genuine Stihl 044 / N - Carburetor C3M-S5, S24, S5, S20, S22, S23

Description

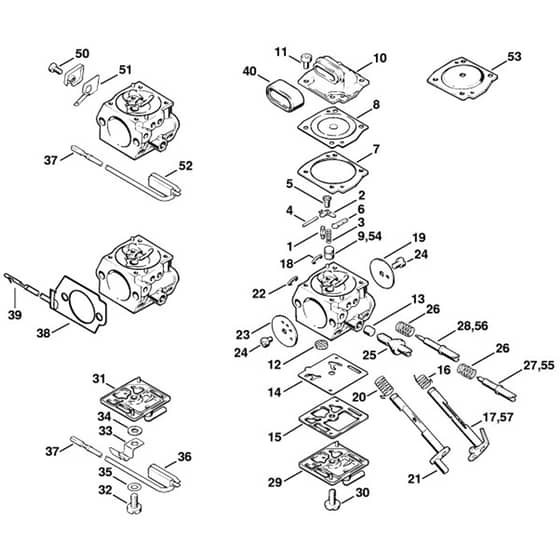

Genuine Stihl 044 / N - Carburetor C3M-S5, S24, S5, S20, S22, S23

	Part No.	Details
1	ST4116 121 5100 Available to backorder	Inlet Needle	£11.15 £9.29
2	ST1125 121 5000 Available to backorder	Inlet Control Lever	£3.41 £2.84
3	ST1128 122 3000 Available to backorder	Spring	£2.40 £2.00
4	ST1120 121 9200 Available to backorder	Spindle	£1.37 £1.14
5	ST1120 122 6600 Available to backorder	Collar Screw	£4.32 £3.60
7	ST1125 129 0901 Available to backorder	Metering Gasket	£2.28 £1.90
8	ST1125 121 4700 Available to backorder	Metering Diaphragm	£17.42 £14.52
10	ST1128 121 0800 Available to backorder	End Cover	£12.95 £10.79
11	ST1120 122 6601 Available to backorder	Collar Screw	£4.32 £3.60
12	ST1123 121 7800 Available to backorder	Strainer	£3.41 £2.84
13	ST1125 122 4200 Available to backorder	Clamp	£1.72 £1.43
14	ST1128 121 4802 Available to backorder	Pump Diaphragm	£15.48 £12.90
15	ST1125 129 0900 Available to backorder	Pump Gasket	£2.28 £1.90
18	ST1125 122 9001 Available to backorder	E-Clip	£2.15 £1.79
19	ST1128 121 3300 Available to backorder	Throttle Shutter	£4.45 £3.71
22	ST1125 122 9002 Available to backorder	E-Clip	£2.15 £1.79
24	ST1125 122 7403 In stock	Round Head Screw	£4.72 £3.93
26	ST1120 122 3005 In stock	Spring	£2.40 £2.00
29	ST1128 120 0800 Available to backorder	End Cover	£19.46 £16.22
30	ST1120 122 7800 Available to backorder	Oval Head Screw	£4.55 £3.79
37	ST1118 431 6700 Available to backorder	Terminal Socket (Carburetor Heating)	£0.83 £0.69
39	ST1118 431 6600 Available to backorder	Terminal Pin	£0.89 £0.74
40	ST1124 121 9100 In stock	Bushing	£1.90 £1.58
0	ST1128 007 1065 Available to backorder	Set Of Carburetor Parts	£50.06 £41.72

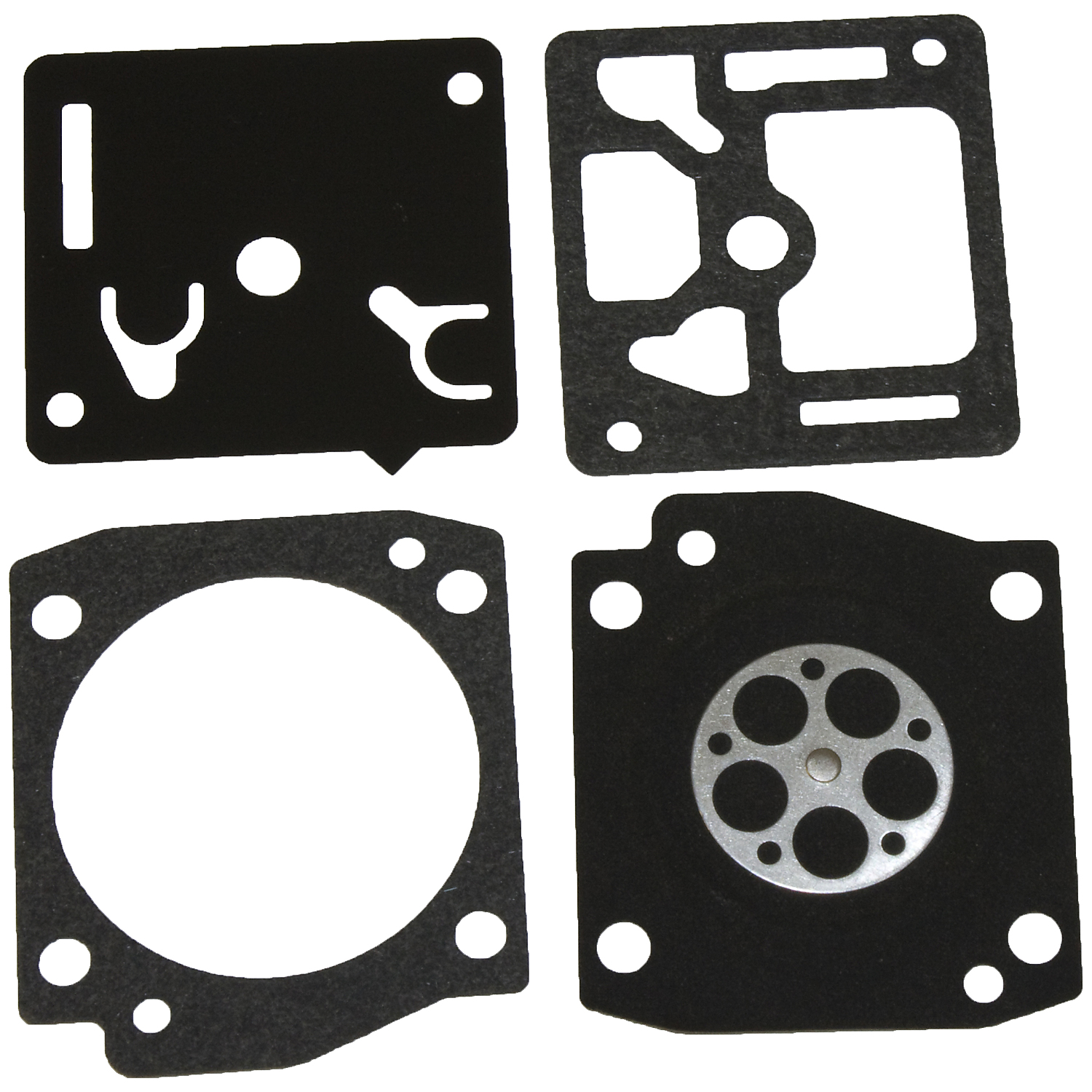

0	2075 Out of stock	Carburettor Diaphragm & Gasket Set	£4.97 £4.14
0	ST1128 120 0616 Available to backorder	Carburetor C3M-S23 (Carburetor Heating)	£165.48 £137.90
50	ST1128 122 7100 Available to backorder	Screw (Carburetor Heating)	£4.32 £3.60
53	ST1125 121 0803 Available to backorder	End Cover	£14.36 £11.97
