Genuine Stihl 017 C / J - Carburetor WT-325 (05.2000)

Name: Genuine Stihl 017 C / J - Carburetor WT-325 (05.2000)
SKU: 017_C_J-group
Price: 0.95 GBP
Availability: InStock

Part No. 017_C_J-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

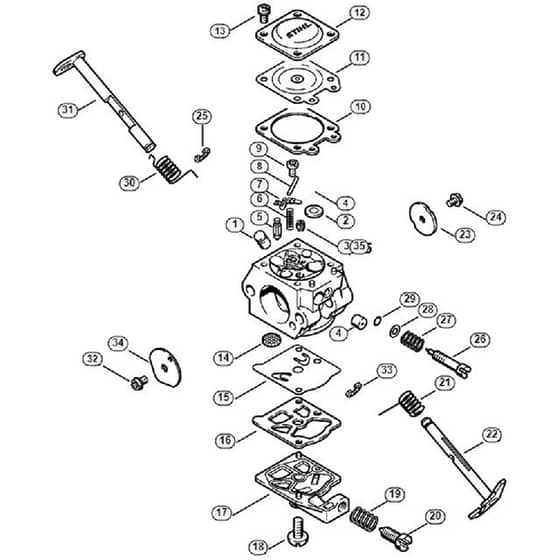

Genuine Stihl 017 C / J - Carburetor WT-325 (05.2000)

Description

Genuine Stihl 017 C / J - Carburetor WT-325 (05.2000)

	Part No.	Details
-1	ST1123 007 1061 Available to backorder	Set Of Carburetor Parts	£30.62 £25.52
1	ST1115 121 5401 Available to backorder	Valve Jet	£10.01 £8.34
2	ST4117 122 9402 Available to backorder	Plug	£2.15 £1.79
4	ST4133 120 8600 Available to backorder	Non-Return Valve	£8.77 £7.31
5	ST4116 121 5100 Available to backorder	Inlet Needle	£11.15 £9.29
6	ST1130 122 3000 Available to backorder	Spring	£2.40 £2.00
7	ST1113 121 5000 Available to backorder	Inlet Control Lever	£3.31 £2.76
8	ST1113 121 9200 Available to backorder	Spindle	£1.37 £1.14
9	ST1114 122 7400 Available to backorder	Round Head Screw	£1.37 £1.14
10	ST1113 129 0900 Available to backorder	Gasket	£2.51 £2.09
11	ST1113 121 4705 Available to backorder	Metering Diaphragm	£15.48 £12.90
12	ST1113 121 0800 Available to backorder	End Cover	£17.75 £14.79
13	ST1106 122 7400 Available to backorder	Round Head Screw	£8.09 £6.74
14	ST1114 121 7800 Available to backorder	Strainer	£3.41 £2.84
15	ST1121 121 4801 Available to backorder	Pump Diaphragm	£15.48 £12.90
16	ST1120 129 0905 Available to backorder	Gasket	£2.28 £1.90
17	ST1123 121 0802 Available to backorder	End Cover	£17.75 £14.79
18	ST1114 122 7100 Available to backorder	Screw	£2.63 £2.19
19	ST4117 122 3006 In stock	Spring	£2.40 £2.00
20	ST4117 122 6200 Available to backorder	Idle Speed Screw	£11.15 £9.29
21	ST1130 122 3200 Available to backorder	Torsion Spring	£3.23 £2.69
22	ST1130 120 7100 Available to backorder	Throttle Shaft With Lever	£69.12 £57.60
23	ST1130 121 3300 Available to backorder	Throttle Shutter	£3.14 £2.62
24	ST1115 122 7400 Available to backorder	Round Head Screw	£3.19 £2.66
25	ST1117 122 9000 Available to backorder	E-Clip	£2.15 £1.79
26	ST1130 122 6800 Available to backorder	Low Speed Screw	£12.43 £10.36
27	ST1115 122 3002 In stock	Spring	£2.40 £2.00
29	ST4124 122 3600 Available to backorder	Sealing Ring	£6.14 £5.12
30	ST1123 122 3201 Available to backorder	Torsion Spring	£1.14 £0.95
31	ST1123 120 7201 Available to backorder	Choke Shaft With Lever	£17.17 £14.31
32	ST1110 122 7400 Available to backorder	Round Head Screw	£2.83 £2.36
33	ST1123 122 9000 Available to backorder	E-Clip	£2.15 £1.79
34	ST1130 121 2900 Available to backorder	Choke Shutter	£2.98 £2.48
35	ST1129 121 5600 Available to backorder	Fixed Jet 0.50	£10.01 £8.34
