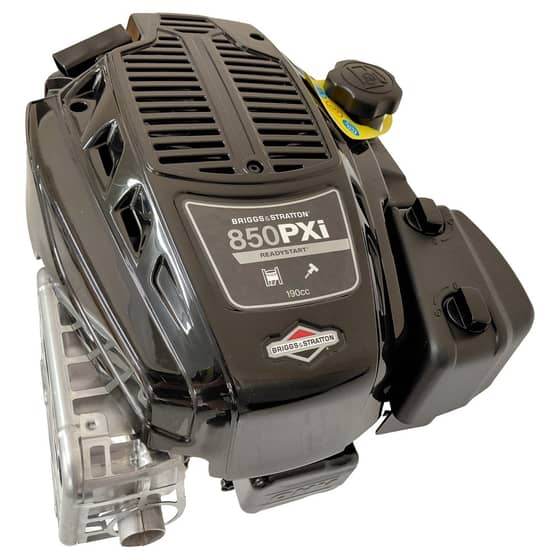

Genuine Briggs & Stratton OHV Engine - 123P02-0029
Part No. BP123P020029
Manufacturer: Briggs & Stratton
OEM (Genuine) part
This item is not held in stock at our warehouse. It will be ordered in from our supplier and shipped to you in the timeframe indicated.
Estimated dispatch time: 3-7 working days
Please
contact us to know more about availability
Description
Genuine Briggs & Stratton complete 123P series engine.
Technical Specifications
| Model Series |
123P |
| Power Lbs/Ft of Torque |
8.5 |
| Engine Series |
850 |
| Displacement |
190 |
| Oil Capacity |
20 oz (0.59) |
| Valve Configuration |
OHV |
| Flywheel Torque |
60 lb/ft (81.3 Nm) |
| Governor Arm Torque |
30 lb/in (3.4 Nm) |
| Carb Mount |
60 lb-in (6.8 Nm) |
| Plug Gap |
0.02 in (0.50 mm) |
| Intake Valve |
.004-.008 in (.10-.20 mm) |
| Exhaust Valve |
.004-.008 in (.10-.20 mm) |
| Idle Speed |
1750 |
| Air Gap |
.010-.014 in (.25-.36 mm) |
| Connecting Rod Torque |
97.5 lb/in (11.0 Nm) |
| Sump Torque |
110 lb/in (12.4 Nm) |
| Head Torque |
210 lb/in (23.7 Nm) |
| Top No Load (rpms) |
2800 +/- 0100 RPM - No Load |
Product Specifications
More Information
| Unit of Sale |
1 |
| Supplier Lead Time |
Estimated dispatch time: 3-7 working days |
| Manufacturer |
Briggs & Stratton |
| OEM No. |
123P02-0029 |
| Part Type |
Genuine Part |
