GD 39Q - 2007 - 222716106/07 - Castel Garden Chainsaw Crankshaft and Cylinder Diagram

Name: GD 39Q - 2007 - 222716106/07 - Castel Garden Chainsaw Crankshaft and Cylinder Diagram
SKU: gd_39q_222716106_07_crankshaft_and_cylinder-group
Price: 1.11 GBP
Availability: InStock

Part No. gd_39q_222716106_07_crankshaft_and_cylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

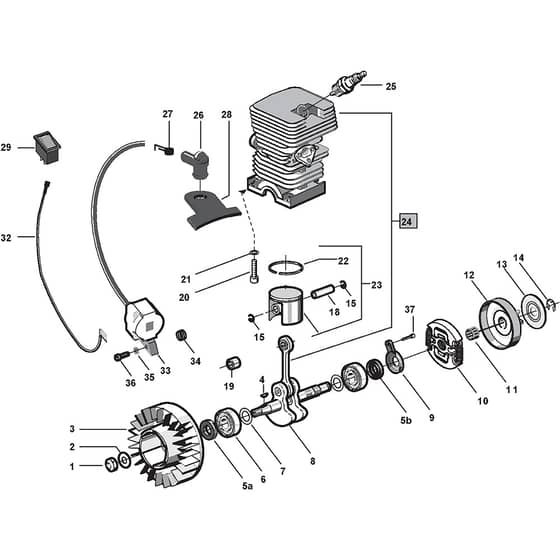

GD 39Q - 2007 - 222716106/07 - Castel Garden Chainsaw Crankshaft and Cylinder Diagram

Description

Castel Garden GD 39Q Parts Diagram

Product Name - GD 39Q

Model Year - 2007

Model Type - P 390

Art.N - 222716106/07

Engine Model -

	Part No.	Details
3	MO3L4541210/1 Available to backorder	Flywheel To 31-8-2005	£52.51 £43.76
4	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
5	MO3121071 Available to backorder	Seal Ring 5a	£4.78 £3.98
6	MO3112030 Available to backorder	Ball Bearing	£14.93 £12.44
11	MO3114190 Available to backorder	Needle Bearing	£7.66 £6.38
12	MO4121208 Available to backorder	Clutch Drum	£17.17 £14.31
14	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
15	MO3356050 Available to backorder	Circlip Ring	£1.39 £1.16
18	MO3158260 Available to backorder	Piston Pin	£6.64 £5.53
20	MO2135030 Available to backorder	Screw	£1.40 £1.17
21	MO2330020 Available to backorder	Washer	£1.39 £1.16
24	MO3L8541370/1 Available to backorder	Cylinder - Piston Ass'Y	£246.35 £205.29
25	9494 In stock	Spark Plug	£3.60 £3.00
26	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
27	MO3657050 Available to backorder	Spark Plug Spring	£3.92 £3.27
29	MO118800202/0 Available to backorder	Stop Switch	£1.84 £1.53
34	MO3654480 Available to backorder	Spring	£1.33 £1.11
