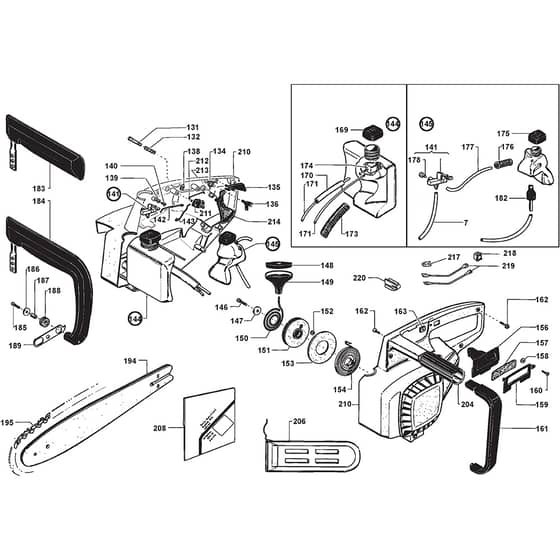

GD 33 - 2003 - 222914000/ALX - Castel Garden Chainsaw Housing Diagram

Name: GD 33 - 2003 - 222914000/ALX - Castel Garden Chainsaw Housing Diagram
SKU: gd_33_222914000_alx_housing-group
Price: 1.11 GBP
Availability: InStock

Part No. gd_33_222914000_alx_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GD 33 - 2003 - 222914000/ALX - Castel Garden Chainsaw Housing Diagram

Description

Castel Garden GD 33 Parts Diagram

Product Name - GD 33

Model Year - 2003

Model Type - EURO 35 N

Art.N - 222914000/ALX

Engine Model -

	Part No.	Details
138	MO3351050 Available to backorder	Circlip	£1.39 £1.16
140	MO2123090 Available to backorder	Screw	£1.70 £1.42
143	MO3655140 Available to backorder	Throttle Rod	£5.06 £4.22
147	MO3613420 Available to backorder	Washer	£1.33 £1.11
150	MO3784030 Available to backorder	Starter Cord	£2.11 £1.76
152	MO3641130 Available to backorder	Eyelet	£4.93 £4.11
153	MO3723640 Available to backorder	Disc For Starter Spring	£4.08 £3.40
157	MO3781280 Available to backorder	Air Filter	£4.02 £3.35
160	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
185	MO2123030 Available to backorder	Screw	£1.33 £1.11
186	MO2312150 Available to backorder	Washer	£1.33 £1.11
194	MO123900201/0 Available to backorder	Bar 14Inch	£34.14 £28.45
195	5043 In stock	Chain 14Inch	£9.54 £7.95
206	MO4181297 Available to backorder	Chain Cover 14Inch	£2.18 £1.82
218	MO118800202/0 Available to backorder	Stop Switch	£1.84 £1.53
