GD 180Q - 2009 - 291716106/07 - Castel Garden Chainsaw Electric Chain saw Diagram

Description

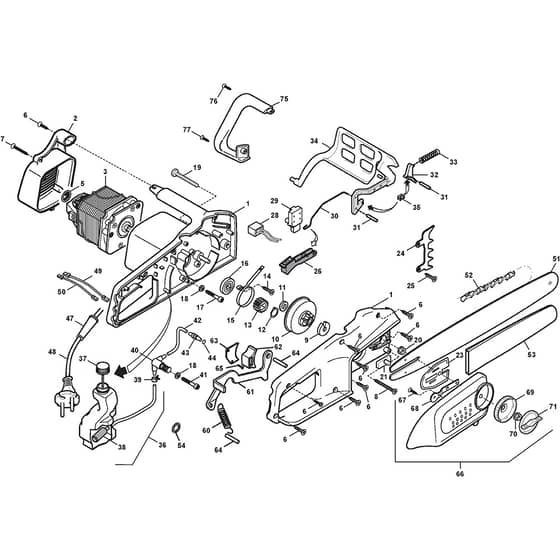

Castel Garden GD 180Q Parts Diagram

Product Name - GD 180Q

Model Year - 2009

Model Type - Energy E 1.8

Art.N - 291716106/07

Engine Model -

	Part No.	Details
3	MO8251900 Available to backorder	Electric Motor	£121.07 £100.89
9	MO3614300 Available to backorder	Side Plate	£5.82 £4.85
10	MO8562940 Available to backorder	Gear Assy	£25.39 £21.16
12	MO3353020 Available to backorder	Seeger Ring	£1.39 £1.16
15	MO3614690 Available to backorder	Brake Band	£10.98 £9.15
17	MO2135040 Available to backorder	Screw	£1.38 £1.15
18	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
20	MO2670120 Available to backorder	Nut	£1.39 £1.16
21	MO323796003/0 Available to backorder	Chain Tightener Block	£3.92 £3.27
26	MO3L3743497/1 Available to backorder	Switch Lever	£3.79 £3.16
30	MO123835000/0 Available to backorder	Switch Rod	£5.06 £4.22
33	MO3653720 Available to backorder	Brake Spring	£3.38 £2.82
35	MO4252020 Available to backorder	Chain Brake Link Assy	£5.20 £4.33
37	MO4252010 Available to backorder	Tank Cap	£3.52 £2.93
38	MO8642570 Available to backorder	Filter Intank Assy With Pipe	£9.01 £7.51
39	MO3320170 Available to backorder	Hose Clamp	£1.33 £1.11
41	MO2123030 Available to backorder	Screw	£1.33 £1.11
42	MO3786010 Available to backorder	Oil Tube	£3.66 £3.05
51	MO1421602-01A Available to backorder	Guide Bar 16Inch	£41.81 £34.84
52	5046 In stock	Chain 16Inch	£10.36 £8.63
53	MO4181307 Available to backorder	Chain Cover 16Inch	£6.05 £5.04
54	MO112604897/0 Available to backorder	Elastic Washer	£1.63 £1.36
65	MO2123090 Available to backorder	Screw	£1.70 £1.42
66	MO383109500/0 Available to backorder	Chain Cover	£30.29 £25.24
67	MO2123060 Available to backorder	Screw	£1.33 £1.11
69	MO323250000/0 Available to backorder	Ring Nut	£3.52 £2.93
70	MO2670270 Available to backorder	Nut	£2.82 £2.35
71	MO323593501/0 Available to backorder	Knob	£5.76 £4.80
