G 53 TBX ALL ROAD PLUS 4 EURO 5 - Oleo-Mac Rotary Mower illustrated parts list Diagram

Description

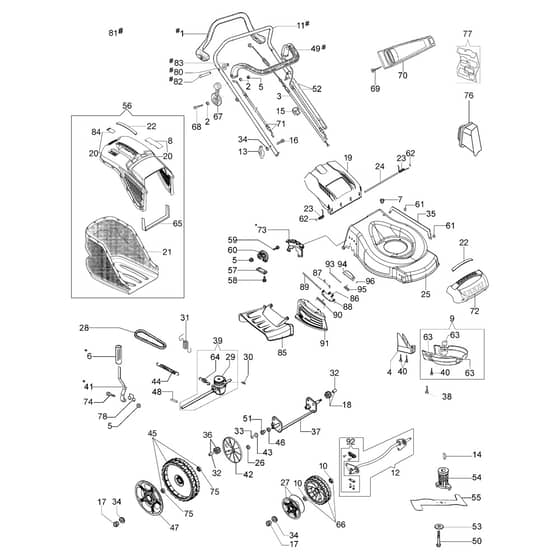

Oleo-Mac G 53 TBX ALL ROAD PLUS 4 EURO 5 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060398br In stock	Traction Lever	£22.13 £18.44
2	EF3918009R Available to backorder	Washer	£0.90 £0.75
3	EF66060058CR Available to backorder	Traction Cable	£30.78 £25.65
4	EF66071090 In stock	Guard	£17.65 £14.71
5	EF3914006R Available to backorder	Nut	£0.90 £0.75
6	EF66070913R Available to backorder	Knob	£9.32 £7.77
7	EF66030038 Available to backorder	Grommet	£0.90 £0.75
8	EF66070466R Available to backorder	Lock	£9.22 £7.68
9	EF66070233A Available to backorder	Guard Kit	£15.28 £12.73
11	EF66060421BR Available to backorder	Handlebar	£59.46 £49.55
12	EF66070749 Available to backorder	Axle Kit	£55.38 £46.15
13	EF66070943R Available to backorder	Tightening Handle	£6.88 £5.73
14	EF8202126R Available to backorder	Key	£1.84 £1.53
15	EF66060231 Available to backorder	Band	£2.88 £2.40
16	EF3910015R Available to backorder	Screw	£1.84 £1.53
18	EF66070437R Available to backorder	Left Sprocket	£16.88 £14.07
19	EF66110754R Available to backorder	Shutter	£25.14 £20.95
20	EF66072047R Available to backorder	Frame	£60.56 £50.47
21	EF66070875R Available to backorder	Grassbag	£79.66 £66.38
22	EF66070523R Available to backorder	Cover	£8.08 £6.73
23	EF66110609A Available to backorder	Kit Spring	£9.46 £7.88
24	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
25	EF66070537AR Available to backorder	Deck	£205.08 £170.90
27	EF66070884R Available to backorder	Wheel Cover	£6.12 £5.10
28	EF3047000 In stock	Belt	£21.30 £17.75
29	EF66071084R Available to backorder	Pulley	£16.27 £13.56
30	EF3022020R Available to backorder	Plug	£1.19 £0.99
32	EF66070435R Available to backorder	Bushing	£3.24 £2.70
33	EF3024012R In stock	Seeger	£1.28 £1.07
34	EF3916008R Available to backorder	Washer	£1.82 £1.52
35	EF66070229 Available to backorder	Rod	£21.02 £17.52
36	EF66070436R Available to backorder	Right Sprocket	£17.22 £14.35
37	EF66070287AR Available to backorder	Rear Axle	£88.92 £74.10
38	EF3806076R Available to backorder	Screw	£2.52 £2.10
39	EF66070017ER Available to backorder	Transmission	£153.84 £128.20
40	EF011200035R In stock	Screw	£0.98 £0.82
41	EF66070286CR Available to backorder	Lever	£18.50 £15.42
42	EF66070756 Available to backorder	Wheel Cover	£11.10 £9.25
43	EF66030044 Available to backorder	Spacer	£0.90 £0.75
44	EF66070036R Available to backorder	Spring	£5.44 £4.53
45	EF66070729 Available to backorder	Wheel Kit	£51.88 £43.23
46	EF8202311R Available to backorder	Ring	£1.38 £1.15
47	EF66070887R Available to backorder	Wheel Cover	£9.14 £7.62
48	EF66060010R Available to backorder	Roller	£0.98 £0.82
49	EF66060316AR In stock	Brake Lever	£27.07 £22.56
50	EF3906150R Available to backorder	Screw	£5.44 £4.53
51	EF66060030R Available to backorder	Bushing	£3.68 £3.07
52	EF66030276R Available to backorder	Engine Break Cable B&S 625. Lunghezza.Lenght. 1382 mm	£18.08 £15.07
52	EF66060108R Available to backorder	Engine Break Cable B&S 625E. B&S 675EXI. Lunghezza.Lenght. 1183 mm	£10.98 £9.15
53	EF66060384R Available to backorder	Washer	£3.68 £3.07
54	EF66030036 In stock	Hub With Sheet	£20.03 £16.69
55	EF66070440R In stock	Mulching Blade	£28.40 £23.67
56	EF66070904 Available to backorder	Grassbag Kit	£123.50 £102.92
57	EF66030039 Available to backorder	Plate	£2.76 £2.30
58	EF3960031R Available to backorder	Screw	£0.98 £0.82
59	EF3801022R Available to backorder	Screw	£0.56 £0.47
60	EF66110781 Available to backorder	Support	£8.74 £7.28
61	EF3045035R Available to backorder	Retainer Washer	£2.76 £2.30
63	EF66070228AR Available to backorder	Support	£2.16 £1.80
64	EF66070980R Available to backorder	Spring	£6.08 £5.07
65	EF66070133R Available to backorder	Support	£8.74 £7.28
66	EF66070730 Available to backorder	Wheel Kit	£27.30 £22.75
67	EF66070341AR In stock	Throttle Lever	£9.54 £7.95
68	EF3910019 Available to backorder	Screw	£0.90 £0.75
69	EF3960072 Available to backorder	Screw	£0.90 £0.75
70	EF66070134R Available to backorder	Dashboard	£10.44 £8.70
71	EF66070171R Available to backorder	Throttle Cable B&S 625E. B&S 675EXI. Lunghezza.Lenght. 1261.5 mm	£11.04 £9.20
71	EF66070136R In stock	Throttle Cable B&S 625E. Lunghezza.Lenght. 1161.5 mm	£14.14 £11.78
72	EF66070488R Available to backorder	Guard	£27.10 £22.58
73	EF66070291R Available to backorder	Sector	£14.70 £12.25
74	EF3906164R Available to backorder	Screw	£2.56 £2.13
75	EF3035023R Available to backorder	Bearing	£15.84 £13.20
78	EF8203374R Available to backorder	Spring	£10.08 £8.40
79	EF66070975 Available to backorder	Lever Group	£40.92 £34.10
80	EF3064037 Available to backorder	Washer	£0.90 £0.75
81	EF66060425R Available to backorder	Handle Kit	£97.32 £81.10
82	EF66060381BR Available to backorder	Pin	£2.76 £2.30
83	EF3024006 Available to backorder	Snap Ring	£0.90 £0.75
84	EF66070521R Available to backorder	Shutter	£8.74 £7.28
85	EF66070479R Available to backorder	Deflector	£39.38 £32.82
86	EF66070804R Available to backorder	Support 43344	£11.84 £9.87
87	EF3032018R Available to backorder	Rivet	£0.56 £0.47
89	EF66071060R Available to backorder	Pin	£4.10 £3.42
90	EF66070493R Available to backorder	Spring	£12.16 £10.13
91	EF66070914AR Available to backorder	Shutter	£22.94 £19.12
92	EF66070744 Available to backorder	Support Set	£10.76 £8.97
93	EF66070836R Available to backorder	Pin 43344	£2.92 £2.43
94	EF66070803R Available to backorder	Lock 43344	£3.82 £3.18
95	EF66070802R Available to backorder	Spring 43344	£6.96 £5.80
96	EF3045034R Available to backorder	Retainer Washer 43344	£1.08 £0.90
