G 48 TBXE ALLROAD PLUS 4 EURO 5 - Oleo-Mac Rotary Mower Complete illustrated parts list Diagram

Description

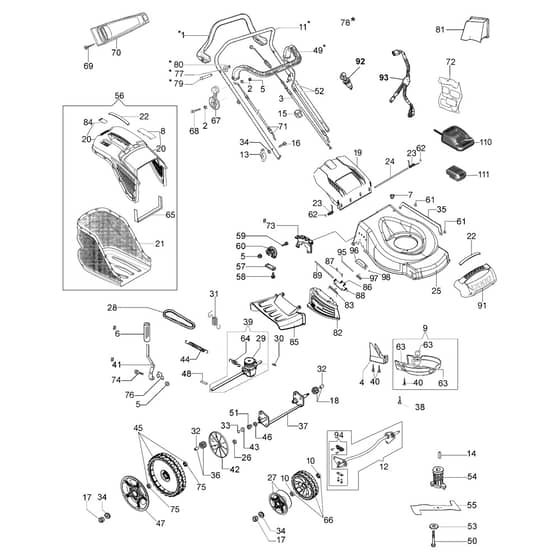

Oleo-Mac G 48 TBXE ALLROAD PLUS 4 EURO 5 Parts Diagram

	Part No.	Details
1	EF66060398br In stock	Traction Lever	£21.00 £17.50
2	EF3918009R Available to backorder	Washer	£1.08 £0.90
3	EF66060058CR In stock	Traction Cable	£30.20 £25.17
4	EF66110845 Available to backorder	Guard	£9.36 £7.80
5	EF3914006R Available to backorder	Nut	£1.08 £0.90
6	EF66070913R Available to backorder	Knob	£9.60 £8.00
7	EF66030038 Available to backorder	Grommet	£1.08 £0.90
8	EF66070466R Available to backorder	Lock	£9.48 £7.90
9	EF66070233A In stock	Guard Kit	£15.05 £12.54
11	EF66060421BR Available to backorder	Handlebar	£61.56 £51.30
12	EF66070749 Available to backorder	Axle Kit	£57.24 £47.70
13	EF66070943R Available to backorder	Tightening Handle	£7.08 £5.90
14	EF8202126R Available to backorder	Key	£2.00 £1.67
15	EF66060231 Available to backorder	Band	£3.14 £2.62
16	EF3910015R Available to backorder	Screw	£2.00 £1.67
18	EF66070437R Available to backorder	Left Sprocket	£17.52 £14.60
19	EF66110754R Available to backorder	Shutter	£26.04 £21.70
20	EF66072047R Available to backorder	Frame	£62.64 £52.20
21	EF66070875R Available to backorder	Grassbag	£82.44 £68.70
22	EF66070523R Available to backorder	Cover	£8.40 £7.00
23	EF66110609A Available to backorder	Kit Spring	£9.84 £8.20
24	EF66110026R Available to backorder	Deflector Axle	£5.64 £4.70
25	EF66110762A Available to backorder	Deck	£208.32 £173.60
27	EF66070884R Available to backorder	Wheel Cover	£6.36 £5.30
28	EF66030037R Available to backorder	Belt	£23.28 £19.40
29	EF66071084R Available to backorder	Pulley	£15.48 £12.90
30	EF3022020R Available to backorder	Plug	£1.43 £1.19
32	EF66070435R Available to backorder	Bushing	£3.36 £2.80
33	EF3024012R In stock	Seeger	£1.54 £1.28
34	EF3916008R Available to backorder	Washer	£1.98 £1.65
35	EF66110100 Available to backorder	Rod	£19.68 £16.40
36	EF66070436R Available to backorder	Right Sprocket	£17.76 £14.80
37	EF66070287AR Available to backorder	Rear Axle	£92.04 £76.70
38	EF3806076R Available to backorder	Screw	£2.75 £2.29
39	EF66070017ER Available to backorder	Transmission	£147.72 £123.10
40	EF011200035R Available to backorder	Screw	£1.08 £0.90
41	EF66070286CR In stock	Lever	£19.76 £16.47
42	EF66070756 Available to backorder	Wheel Cover	£11.52 £9.60
43	EF66030044 Available to backorder	Spacer	£1.08 £0.90
44	EF66070036R Available to backorder	Spring	£5.64 £4.70
45	EF66071056R Available to backorder	Complete Wheel	£34.08 £28.40
46	EF8202311R Available to backorder	Ring	£1.66 £1.38
47	EF66070887R Available to backorder	Wheel Cover	£9.48 £7.90
48	EF66060010R Available to backorder	Roller	£1.08 £0.90
49	EF66060316AR In stock	Brake Lever	£25.68 £21.40
50	EF3906150R Available to backorder	Screw	£5.64 £4.70
51	EF66060030R Available to backorder	Bushing	£3.84 £3.20
52	EF66060108R Available to backorder	Engine Break Cable	£11.40 £9.50
53	EF66060384R Available to backorder	Washer	£3.84 £3.20
54	EF66030036 In stock	Hub With Sheet	£19.64 £16.37
55	EF66110594R In stock	Mulching Blade	£27.35 £22.79
56	EF66070904 Available to backorder	Grassbag Kit	£118.56 £98.80
57	EF66030039 Available to backorder	Plate	£3.01 £2.51
58	EF3960031R Available to backorder	Screw	£1.08 £0.90
59	EF3801022R Available to backorder	Screw	£0.48 £0.40
60	EF66110781 Available to backorder	Support	£9.00 £7.50
61	EF3045035R Available to backorder	Retainer Washer	£3.01 £2.51
63	EF66070228AR Available to backorder	Support	£2.35 £1.96
64	EF66070980R Available to backorder	Spring	£6.24 £5.20
65	EF66070133R Available to backorder	Support	£9.00 £7.50
66	EF66070722R Available to backorder	Wheel Kit	£24.00 £20.00
67	EF66070341AR In stock	Throttle Lever	£9.32 £7.77
68	EF3910019 Available to backorder	Screw	£1.08 £0.90
69	EF3960072 Available to backorder	Screw	£1.08 £0.90
71	EF66070171R Available to backorder	Throttle Cable B&S 675 IS	£10.44 £8.70
73	EF66070291R Available to backorder	Sector	£15.24 £12.70
74	EF3906164R Available to backorder	Screw	£2.80 £2.33
75	EF3035023R Available to backorder	Bearing	£16.44 £13.70
76	EF8203374R Available to backorder	Spring	£10.44 £8.70
77	EF3064037 Available to backorder	Washer	£1.08 £0.90
78	EF66060425R Available to backorder	Handle Kit	£100.68 £83.90

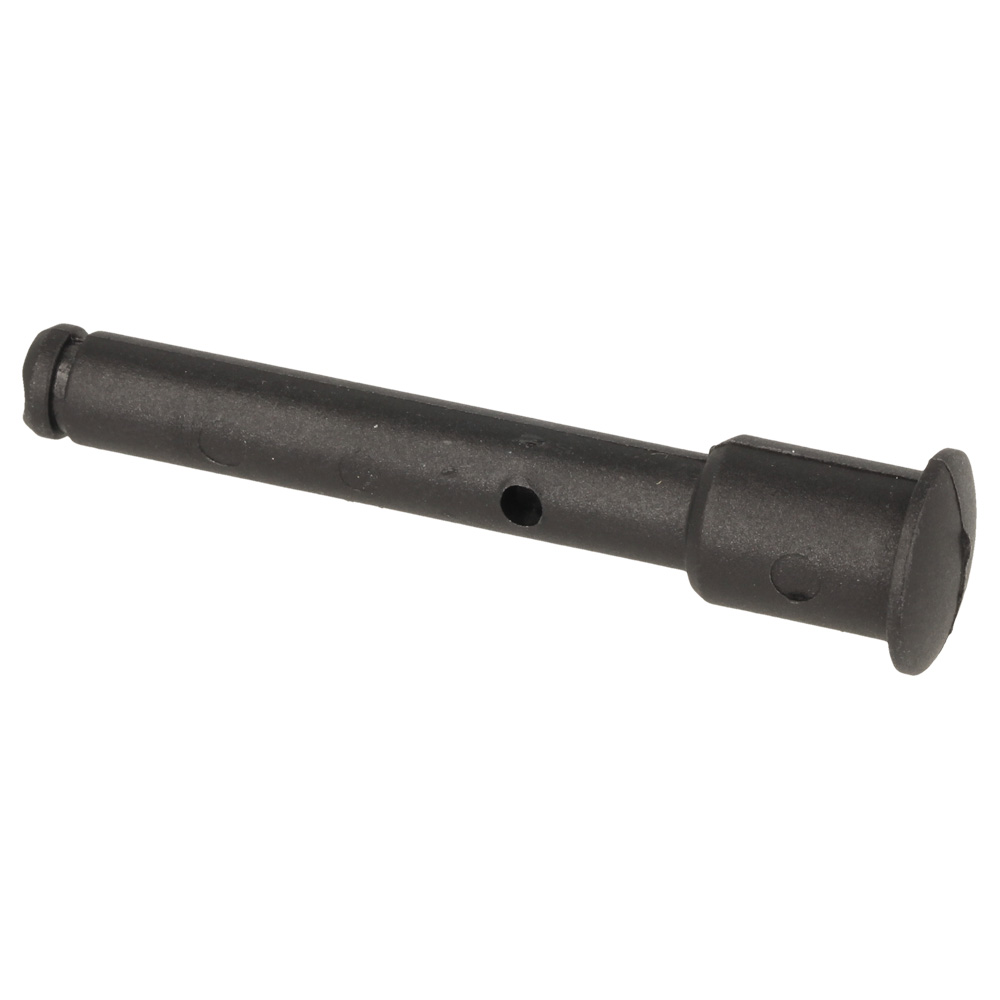

79	EF66060381BR Available to backorder	Pin	£3.01 £2.51
80	EF3024006 Available to backorder	Snap Ring	£1.08 £0.90
81	EF66110828R Available to backorder	Mulching Cap	£43.08 £35.90
82	EF66110689AR Available to backorder	Shutter	£28.56 £23.80
83	EF66070493R Available to backorder	Spring	£12.60 £10.50
84	EF66070521R Available to backorder	Shutter	£9.00 £7.50
85	EF66110513R Available to backorder	Deflector	£38.76 £32.30
86	EF66070804R Available to backorder	Support 43344	£12.24 £10.20
87	EF3032018R Available to backorder	Rivet	£0.43 £0.36
89	EF66071060R Available to backorder	Pin	£4.20 £3.50
90	EF66070975 Available to backorder	Lever Group	£42.36 £35.30
91	EF66070488R Available to backorder	Guard	£28.08 £23.40
92	EF3040020R Available to backorder	Switch	£42.12 £35.10
93	EF66110586AR Available to backorder	Wire	£60.84 £50.70
94	EF66070744 Available to backorder	Support Set	£11.16 £9.30
95	EF66070836R Available to backorder	Pin 43344	£3.18 £2.65
96	EF66070803R Available to backorder	Lock 43344	£3.96 £3.30
97	EF66070802R Available to backorder	Spring 43344	£7.20 £6.00
98	EF3045034R In stock	Retainer Washer 43344	£1.13 £0.94
110	EF3075200R Available to backorder	Battery Charger	£45.12 £37.60
111	EF3075199R Available to backorder	Battery Contattare assistenza B&S. Contact assistance B&S	£101.04 £84.20
