G 48 PBQ COMFORT PLUS - Oleo-Mac Rotary Mower illustrated parts list Diagram

Description

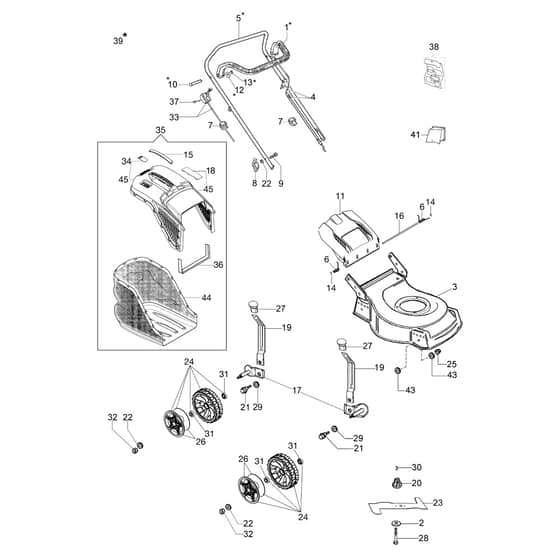

Oleo-Mac G 48 PBQ COMFORT PLUS Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66060316AR In stock	Brake Lever	£27.07 £22.56
2	EF66060384R Available to backorder	Washer	£3.68 £3.07
3	EF66110764A Available to backorder	Deck 42736 Grigio. Grey	£212.76 £177.30
4	EF66060108R Available to backorder	Engine Break Cable	£10.98 £9.15
5	EF66060421BR Available to backorder	Handlebar	£59.46 £49.55
6	EF66110609A Available to backorder	Kit Spring	£9.46 £7.88
7	EF66060231 Available to backorder	Band	£2.88 £2.40
8	EF66070317R Available to backorder	Tightening Handle	£9.66 £8.05
9	EF3910015R Available to backorder	Screw	£1.84 £1.53
11	EF66110754R Available to backorder	Shutter 42736 Arancio. Orange	£25.14 £20.95
12	EF3064037 Available to backorder	Washer	£0.90 £0.75
13	EF3024006 Available to backorder	Snap Ring	£0.90 £0.75
14	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
15	EF66070523R Available to backorder	Cover	£8.08 £6.73
16	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
17	EF66070301A Available to backorder	Support Set	£22.94 £19.12
18	EF66070466R Available to backorder	Lock	£9.22 £7.68
19	EF66070031R Available to backorder	Lever	£11.36 £9.47
20	EF66030003AR Available to backorder	Hub Ø22.2mm	£12.96 £10.80
21	EF66070030A Available to backorder	Pin	£1.84 £1.53
23	EF66110594R In stock	Mulching Blade	£27.82 £23.18
24	EF66070732 Available to backorder	Wheel Kit	£28.10 £23.42
26	EF66070572R Available to backorder	Wheel Cover 41974	£7.06 £5.88
28	EF3906150R Available to backorder	Screw	£5.44 £4.53
29	EF3027001R Available to backorder	Washer	£0.90 £0.75
30	EF8202126R Available to backorder	Key	£1.84 £1.53
31	EF66030081R Available to backorder	Bearing	£5.44 £4.53
32	EF3914010 Available to backorder	Nut	£0.90 £0.75
33	EF66060077AR Available to backorder	Throttle Cable	£16.36 £13.63
34	EF66070521R Available to backorder	Shutter	£8.74 £7.28
35	EF66070904 Available to backorder	Grassbag Kit	£123.50 £102.92
36	EF66070133R Available to backorder	Support	£8.74 £7.28
37	EF3910019 Available to backorder	Screw	£0.90 £0.75
39	EF66060425R Available to backorder	Handle Kit	£97.32 £81.10
41	EF66110828R Available to backorder	Mulching Cap	£41.66 £34.72
43	EF66030012R Available to backorder	Washer	£1.84 £1.53
44	EF66070875R Available to backorder	Grassbag	£79.66 £66.38
45	EF66072047R Available to backorder	Frame	£60.56 £50.47
