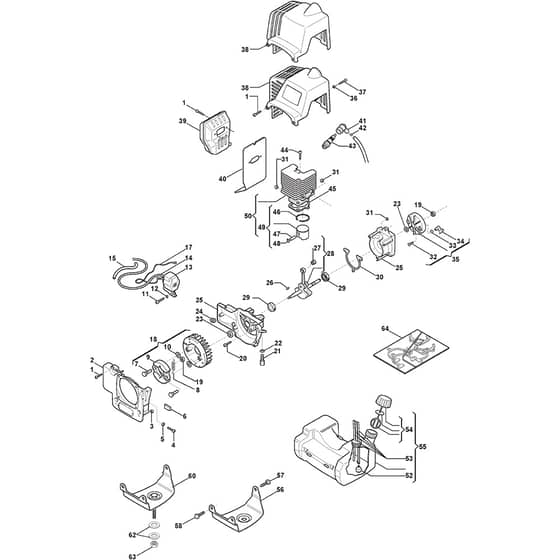

G 440 - 2004 - 284021000/0F4 - Castel Garden Brushcutter Engine Diagram

Name: G 440 - 2004 - 284021000/0F4 - Castel Garden Brushcutter Engine Diagram
SKU: g_440_284021000_0f4_engine-group
Price: 1.11 GBP
Availability: InStock

Part No. g_440_284021000_0f4_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

G 440 - 2004 - 284021000/0F4 - Castel Garden Brushcutter Engine Diagram

Description

Castel Garden G 440 Parts Diagram

Product Name - G 440

Model Year - 2004

Model Type - VIP 40 D

Art.N - 284021000/0F4

Engine Model -

	Part No.	Details
1	MO2135040 Available to backorder	Screw	£1.38 £1.15
2	MO4540800 Available to backorder	Transmission Support Case	£22.10 £18.42
3	MO2432030 Available to backorder	Nut	£1.33 £1.11
5	MO2312120 Available to backorder	Flat Washer	£1.39 £1.16
6	MO3745530 Available to backorder	Grommet	£3.52 £2.93
8	MO3654040 Available to backorder	Clutch Spring	£3.66 £3.05
9	MO3L3660430/1 Available to backorder	Clutch Unit	£13.66 £11.38
10	MO2321230 In stock	Washer	£1.39 £1.16
13	MO3210670 Available to backorder	Electronic Coil	£89.57 £74.64
15	MO3782470 Available to backorder	Wire Sheath	£10.37 £8.64
18	MO3L4251480/1 Available to backorder	Flywheel	£115.62 £96.35
19	MO2670120 Available to backorder	Nut	£1.39 £1.16
20	MO2135050 Available to backorder	Screw	£1.33 £1.11
21	MO1L3630600/1 Available to backorder	Throttle Cable Adjuster	£5.76 £4.80
22	MO2412090 Available to backorder	Nut	£1.39 £1.16
24	MO3745130 Available to backorder	Grommet	£1.39 £1.16
26	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
29	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45
31	MO2432040 Available to backorder	Nut	£1.33 £1.11
33	MO3654050 Available to backorder	Spring	£1.39 £1.16
34	MO3749570 Available to backorder	Starter Hook	£1.33 £1.11
