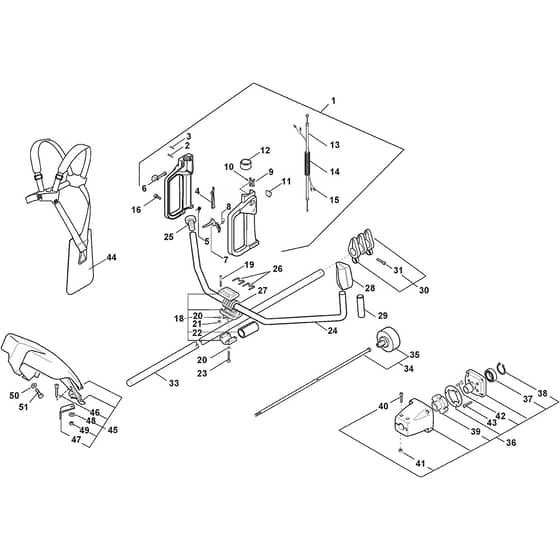

G 440 - 2004 - 283521000/HAN - Castel Garden Brushcutter Handle Transmission Diagram

Name: G 440 - 2004 - 283521000/HAN - Castel Garden Brushcutter Handle Transmission Diagram
SKU: g_440_283521000_han_handle_transmission-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

G 440 - 2004 - 283521000/HAN - Castel Garden Brushcutter Handle Transmission Diagram

Description

Castel Garden G 440 Parts Diagram

Product Name - G 440

Model Year - 2004

Model Type - VIP 40 D

Art.N - 283521000/HAN

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO2123030 Available to backorder	Screw	£1.33 £1.11
3	MO2135050 Available to backorder	Screw	£1.33 £1.11
4	MO3743475 Available to backorder	Safety Lever	£2.81 £2.34
5	MO3654300 Available to backorder	Spring	£1.40 £1.17
7	MO3743460 Available to backorder	Throttle Lever	£10.00 £8.33
8	MO1L3654270/1 Available to backorder	Spring	£1.40 £1.17
10	MO2123070 Available to backorder	Screw	£1.33 £1.11
11	MO3749270 Available to backorder	Knob	£1.33 £1.11
13	MO4251571 Available to backorder	Throttle Cable	£11.20 £9.33
14	MO3782920 Available to backorder	Wire Sheath	£19.57 £16.31
16	MO2123100 Available to backorder	Screw	£1.28 £1.07
19	MO2135120 Available to backorder	Screw	£1.40 £1.17
20	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
21	MO112154330/0 In stock	Nut	£1.55 £1.29
23	MO2123110 Available to backorder	Screw	£1.33 £1.11
26	MO3657470 Available to backorder	Handle Lock Duplex	£1.40 £1.17
27	MO3744160 Available to backorder	Shock Absorber	£13.37 £11.14
33	MO8251201 Available to backorder	Transmission Pipe Assy	£53.47 £44.56
35	MO3L4121861/1 Available to backorder	Clutch Drum Assy	£20.32 £16.93
36	MO8562960 Available to backorder	Support Transmission Assy	£52.20 £43.50
37	MO119216038/0 Available to backorder	Ball Bearing	£5.92 £4.93
38	MO3353080 Available to backorder	Seeger Ring	£1.40 £1.17
39	MO3744260 Available to backorder	Shock Absorber	£5.59 £4.66
40	MO2135130 Available to backorder	Screw	£1.40 £1.17
42	MO2135040 Available to backorder	Screw	£1.38 £1.15
43	MO2135160 Available to backorder	Screw	£1.40 £1.17
44	MO4253440 Available to backorder	Harness	£27.18 £22.65
45	MO3L8563570/1 Available to backorder	Safety Cover Assy	£26.32 £21.93
46	MO2135030 Available to backorder	Screw	£1.40 £1.17
47	MO3615000 Available to backorder	Line Cutter Blade	£8.84 £7.37
49	MO2432040 Available to backorder	Nut	£1.33 £1.11
50	MO2312150 Available to backorder	Washer	£1.33 £1.11
