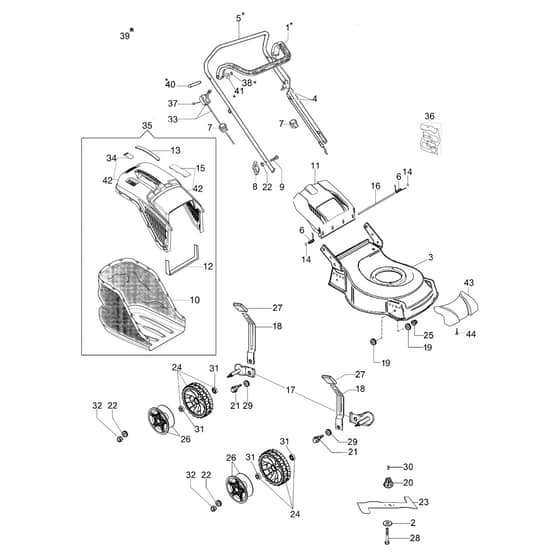

G 44 PB COMFORT PLUS EURO 5 - Oleo-Mac Rotary Mower Complete illustrated parts list Diagram

Name: G 44 PB COMFORT PLUS EURO 5 - Oleo-Mac Rotary Mower Complete illustrated parts list Diagram
SKU: g_44_pb_comfort_plus_euro_5_complete_illustrated_parts_list-grou
Price: 0.9 GBP
Availability: InStock

Part No. g_44_pb_comfort_plus_euro_5_complete_illustrated_parts_list-grou

Skip to the end of the images gallery

Skip to the beginning of the images gallery

G 44 PB COMFORT PLUS EURO 5 - Oleo-Mac Rotary Mower Complete illustrated parts list Diagram

Description

Oleo-Mac G 44 PB COMFORT PLUS EURO 5 Parts Diagram

	Part No.	Details
1	EF66060316AR In stock	Brake Lever	£25.68 £21.40
2	EF66060384R Available to backorder	Washer	£3.84 £3.20
4	EF66060108R Available to backorder	Engine Break Cable	£11.40 £9.50
5	EF66060421BR Available to backorder	Handlebar	£61.56 £51.30
6	EF66110609A Available to backorder	Kit Spring	£9.84 £8.20
7	EF66060231 Available to backorder	Band	£3.14 £2.62
8	EF66070943R Available to backorder	Tightening Handle	£7.08 £5.90
9	EF3910015R Available to backorder	Screw	£2.00 £1.67
10	EF66070875R Available to backorder	Grassbag	£82.44 £68.70
11	EF66110754R Available to backorder	Shutter	£26.04 £21.70
12	EF66070133R Available to backorder	Support	£9.00 £7.50
13	EF66070523R Available to backorder	Cover	£8.40 £7.00
14	EF3045034R In stock	Retainer Washer	£1.13 £0.94
15	EF66070466R Available to backorder	Lock	£9.48 £7.90
16	EF66110026R Available to backorder	Deflector Axle	£5.64 £4.70
17	EF66070301A Available to backorder	Support Set	£23.76 £19.80
18	EF66070031R Available to backorder	Lever	£11.76 £9.80

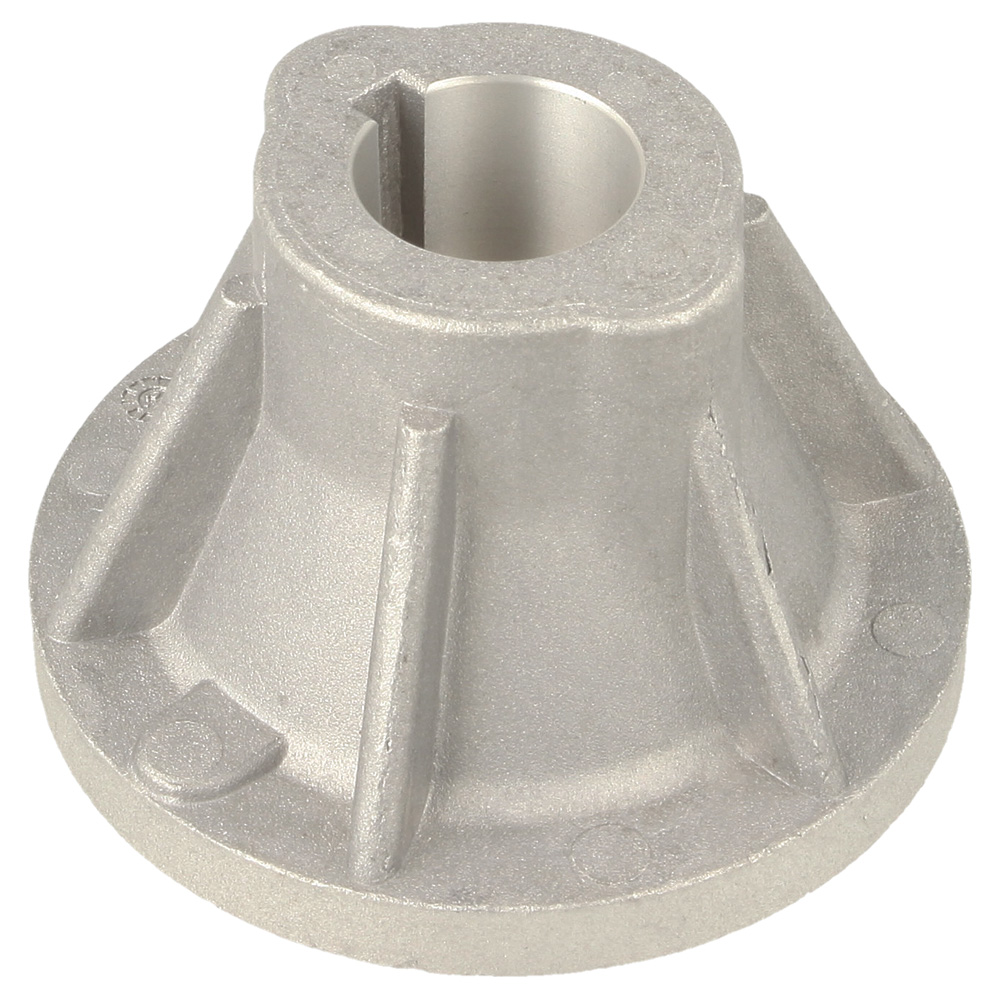

20	EF66030003AR Available to backorder	Hub Ø22.2mm	£13.44 £11.20
21	EF66070030A Available to backorder	Pin	£2.00 £1.67
22	EF66030012R Available to backorder	Washer	£2.00 £1.67
23	EF66100221R Available to backorder	Mulching Blade	£29.04 £24.20
24	EF66070724R Available to backorder	Wheel Kit	£21.96 £18.30
26	EF66070848R Available to backorder	Wheel Cover	£7.44 £6.20
28	EF3906150R Available to backorder	Screw	£5.64 £4.70
30	EF8202126R Available to backorder	Key	£2.00 £1.67
31	EF66030081R Available to backorder	Bearing	£5.64 £4.70
32	EF3914010 Available to backorder	Nut	£1.08 £0.90
34	EF66070521R Available to backorder	Shutter	£9.00 £7.50
35	EF66070904 Available to backorder	Grassbag Kit	£118.56 £98.80
36	EF66100251 Available to backorder	Labels Kit	£16.32 £13.60
37	EF3910019 Available to backorder	Screw	£1.08 £0.90

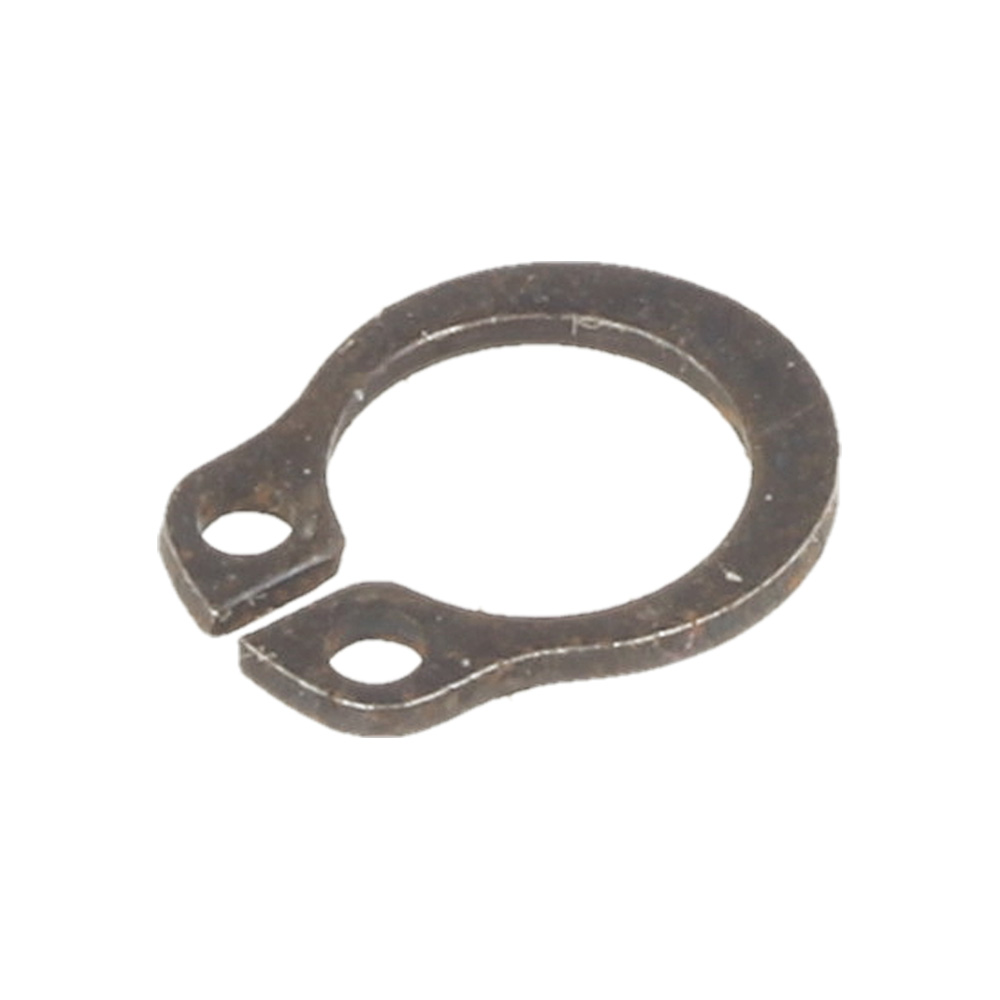

38	EF3024006 Available to backorder	Snap Ring	£1.08 £0.90
39	EF66060425R Available to backorder	Handle Kit	£100.68 £83.90

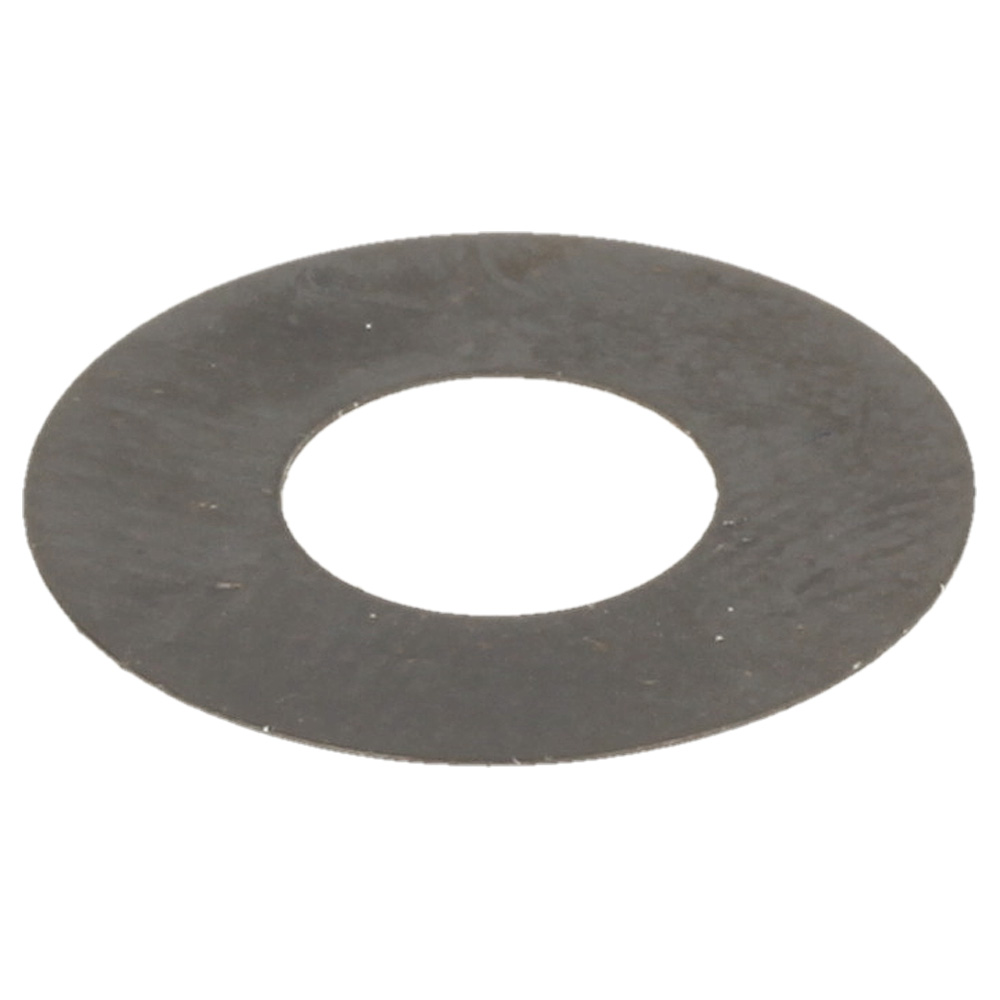

41	EF3064037 Available to backorder	Washer	£1.08 £0.90
42	EF66072047R Available to backorder	Frame	£62.64 £52.20
44	EF3960137R Available to backorder	Screw	£3.07 £2.56
