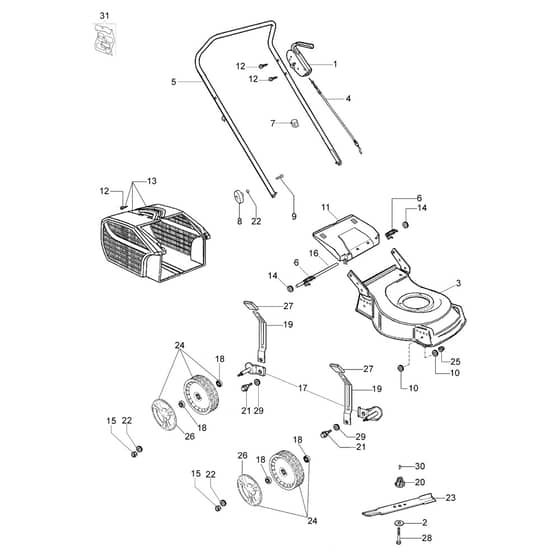

G 44 P - Oleo-Mac Rotary Mower ESSENTIAL complete illustrated parts list (From January 2012) Diagram

Name: G 44 P - Oleo-Mac Rotary Mower ESSENTIAL complete illustrated parts list (From January 2012) Diagram
SKU: g_44_p_essential_complete_illustrated_parts_list_from_january_20
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

G 44 P - Oleo-Mac Rotary Mower ESSENTIAL complete illustrated parts list (From January 2012) Diagram

Description

Oleo-Mac G 44 P Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF66132014 Available to backorder	Complete Lever	£10.72 £8.93
2	EF66060384R Available to backorder	Washer	£3.68 £3.07
3	EF66100232AR Available to backorder	Deck	£178.94 £149.12
4	EF66100183R Available to backorder	Brake Wire 1410mm	£15.92 £13.27
5	EF66100094 Available to backorder	Handlebar	£86.60 £72.17
6	EF66110610 Available to backorder	Kit Spring	£8.24 £6.87
7	EF66060231 Available to backorder	Band	£2.88 £2.40
8	EF4119013AR Available to backorder	Tightening Handle	£3.68 £3.07
9	EF3910015R Available to backorder	Screw	£1.84 £1.53
11	EF66110014R Available to backorder	Shutter	£24.88 £20.73
12	EF3960013R Available to backorder	Screw	£2.76 £2.30
13	EF66112001R Available to backorder	Complete Grassbag	£52.70 £43.92
14	EF3045034R Available to backorder	Retainer Washer	£1.08 £0.90
15	EF3914010 Available to backorder	Nut	£0.90 £0.75
16	EF66110026R Available to backorder	Deflector Axle	£5.44 £4.53
17	EF66070301A Available to backorder	Support Set	£22.94 £19.12
18	EF66030081R Available to backorder	Bearing	£5.44 £4.53
19	EF66070031R Available to backorder	Lever	£11.36 £9.47
20	EF66030003AR Available to backorder	Hub Ø22.2mm	£12.96 £10.80
21	EF66070030A Available to backorder	Pin	£1.84 £1.53
22	EF66030012R Available to backorder	Washer	£1.84 £1.53
23	EF66100221R Available to backorder	Mulching Blade Alettata. Winged	£28.10 £23.42
24	EF66070362 Available to backorder	Wheel Kit	£25.08 £20.90
26	EF66070298R Available to backorder	Wheel Cover	£5.44 £4.53
27	EF66070021R Available to backorder	Handle	£2.16 £1.80
28	EF3906150R Available to backorder	Screw	£5.44 £4.53
29	EF3027001R Available to backorder	Washer	£0.90 £0.75
30	EF8202126R Available to backorder	Key	£1.84 £1.53
31	EF66070380 Available to backorder	Labels Kit	£13.74 £11.45
