G 435 - 2004 - 283521000/0F4 - Castel Garden Brushcutter Engine Diagram

Description

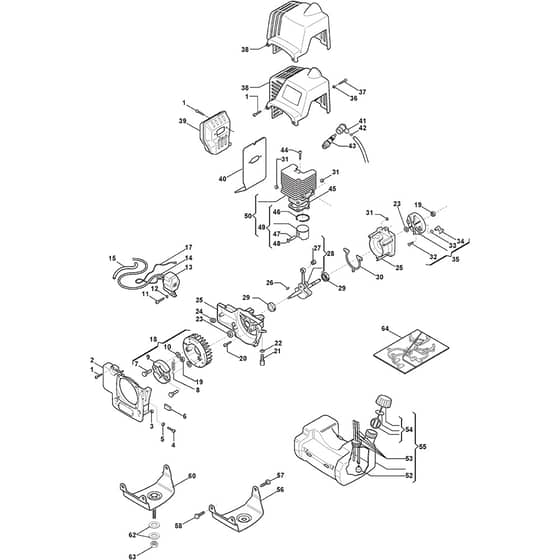

Castel Garden G 435 Parts Diagram

Product Name - G 435

Model Year - 2004

Model Type - VIP 34 D

Art.N - 283521000/0F4

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2135040 Available to backorder	Screw	£1.38 £1.15
2	MO4540800 Available to backorder	Transmission Support Case	£22.10 £18.42
3	MO2432030 Available to backorder	Nut	£1.33 £1.11
5	MO2312120 Available to backorder	Flat Washer	£1.40 £1.17
6	MO3745530 Available to backorder	Grommet	£3.52 £2.93
7	MO2653213 Available to backorder	Screw	£4.20 £3.50
8	MO3654040 Available to backorder	Clutch Spring	£3.66 £3.05
9	MO3L3660430/1 Available to backorder	Clutch Unit	£13.66 £11.38
10	MO2321230 Available to backorder	Washer	£1.40 £1.17
13	MO3210670 Available to backorder	Electronic Coil	£89.57 £74.64
15	MO3782470 Available to backorder	Wire Sheath	£10.36 £8.63
18	MO3L4251480/1 Available to backorder	Flywheel	£115.61 £96.34
19	MO2670120 Available to backorder	Nut	£1.40 £1.17
20	MO2135050 Available to backorder	Screw	£1.33 £1.11
21	MO1L3630600/1 Available to backorder	Throttle Cable Adjuster	£5.76 £4.80
22	MO2412090 Available to backorder	Nut	£1.40 £1.17
24	MO3745130 Available to backorder	Grommet	£1.40 £1.17
26	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
27	MO3116100 Available to backorder	Needle Bearing	£7.13 £5.94
28	MO8250840 Available to backorder	Crankshaft	£182.83 £152.36
29	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45
30	MO3724050 Available to backorder	Crankcase Gasket	£2.29 £1.91
31	MO2432040 Available to backorder	Nut	£1.33 £1.11
32	MO2123100 Available to backorder	Screw	£1.28 £1.07
33	MO3654050 Available to backorder	Spring	£1.40 £1.17
34	MO3749570 Available to backorder	Starter Hook	£1.33 £1.11
35	MO8540810 Available to backorder	Starter Cup Assy	£43.28 £36.07
36	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
37	MO2135180 Available to backorder	Screw	£1.40 £1.17

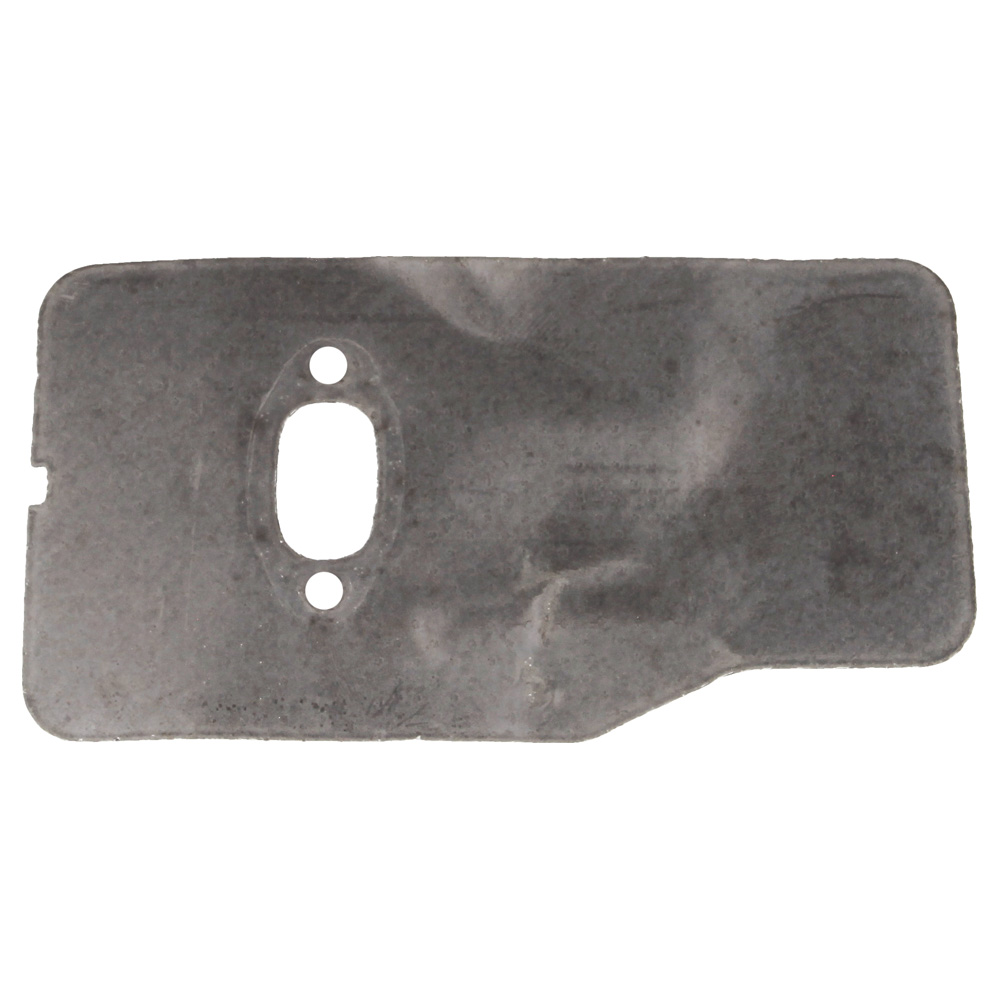

40	MO3724070 Available to backorder	Muffler Gasket	£13.81 £11.51
41	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
42	MO3657050 Available to backorder	Spark Plug Spring	£3.94 £3.28
43	9494 In stock	Spark Plug	£3.72 £3.10
44	MO2135150 Available to backorder	Screw	£1.40 £1.17
45	MO3724260 Available to backorder	Cylinder Gasket To 31-8-2003	£2.95 £2.46
46	MO3123190 Available to backorder	Piston Ring To 31-8-2003	£11.84 £9.87
47	MO3158260 Available to backorder	Piston Pin	£6.64 £5.53
48	MO3356050 Available to backorder	Circlip Ring	£1.40 £1.17
52	MO4253290 Available to backorder	Intake Filter	£13.42 £11.18
53	MO8745540 In stock	Grommet Assy	£16.06 £13.38
54	MO8741370 Available to backorder	Fuel Tank Cap	£5.83 £4.86
58	MO2112310 Available to backorder	Screw	£1.33 £1.11
64	MO8724050 Available to backorder	Gasket Set Vip 30.34	£31.82 £26.52
