G 428 - 2004 - 282820001/04 - Castel Garden Brushcutter Handle Transmission Diagram

Description

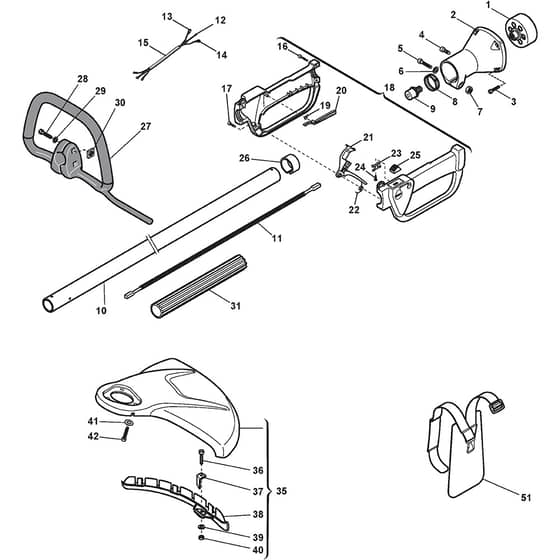

Castel Garden G 428 Parts Diagram

Product Name - G 428

Model Year - 2004

Model Type - VIP 28

Art.N - 282820001/04

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO383050004/0 Available to backorder	Drum Ass'Y. Clutch	£35.20 £29.33
2	MO323782004/0 Available to backorder	Support Transmission Assy	£21.67 £18.06
3	MO2135160 Available to backorder	Screw	£1.40 £1.17
4	MO2653090 Available to backorder	Screw	£1.40 £1.17
5	MO2135150 Available to backorder	Screw	£1.40 £1.17
6	MO2312010 Available to backorder	Flat Washer	£1.40 £1.17
9	MO123445258/0 Available to backorder	Safety Cover Honda	£12.67 £10.56
10	MO383869052/0 Available to backorder	Transmission Tube Ass.Y	£59.12 £49.27
11	MO123020009/0 Available to backorder	Spike	£39.31 £32.76
16	MO2123030 Available to backorder	Screw	£1.33 £1.11
17	MO2123100 Available to backorder	Screw	£1.28 £1.07
18	MO3L8562620/1 Available to backorder	Handle Assy	£31.54 £26.28
19	MO3654300 Available to backorder	Spring	£1.40 £1.17
20	MO3743475 Available to backorder	Safety Lever	£2.81 £2.34
21	MO3743460 Available to backorder	Throttle Lever	£10.00 £8.33
22	MO1L3654270/1 Available to backorder	Spring	£1.40 £1.17
24	MO2123070 Available to backorder	Screw	£1.33 £1.11
25	MO3749270 Available to backorder	Knob	£1.33 £1.11
28	MO2135050 Available to backorder	Screw	£1.33 £1.11
29	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
30	MO2461030 Available to backorder	Nut	£1.33 £1.11
31	MO323170000/0 Available to backorder	Spacer	£1.40 £1.17
35	MO383465003/0 Available to backorder	Safety Cover Ass.Y	£31.12 £25.93
36	MO2135030 Available to backorder	Screw	£1.40 £1.17
37	MO3615000 Available to backorder	Line Cutter Blade	£8.84 £7.37
38	MO323600051/0 Available to backorder	Disc Protection	£13.12 £10.93
40	MO2432040 Available to backorder	Nut	£1.33 £1.11
41	MO2312150 Available to backorder	Washer	£1.33 £1.11
42	MO2135180 Available to backorder	Screw	£1.40 £1.17
51	MO1911-9259-01 Available to backorder	Single Harness	£58.54 £48.78
