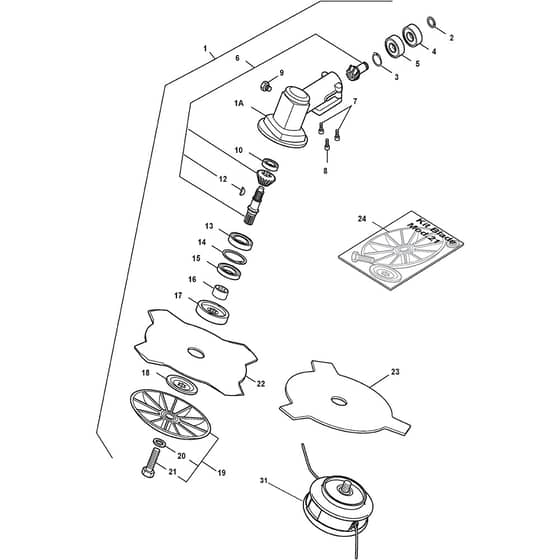

G 424 - 2004 - 282520002/0F4 - Castel Garden Brushcutter Gear Case Diagram

Description

Castel Garden G 424 Parts Diagram

Product Name - G 424

Model Year - 2004

Model Type - VIP 25

Art.N - 282520002/0F4

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO3L4540580/1 Available to backorder	Gear Case Assy 1A on the Drawing	£70.39 £58.66
2	MO3353120 Available to backorder	Seeger Ring	£4.78 £3.98
3	MO3353070 Available to backorder	Circlip	£4.58 £3.82
5	MO3112210 Available to backorder	Ball Bearing	£13.31 £11.09
6	MO3L4252770/2 Available to backorder	Gear Assy	£122.46 £102.05
7	MO2135050 Available to backorder	Screw	£1.33 £1.11
8	MO2653090 Available to backorder	Screw	£1.40 £1.17
10	MO3112230 Available to backorder	Ball Bearing	£4.93 £4.11
12	MO3151050 Available to backorder	Flywheel Key	£6.76 £5.63
13	MO3112240 Available to backorder	Needle Bearing	£10.14 £8.45
14	MO3353130 Available to backorder	Seeger Ring	£1.40 £1.17
15	MO3121180 Available to backorder	Oil Seal	£4.08 £3.40
16	MO3660680 Available to backorder	Collar	£5.90 £4.92
17	MO3641650 Available to backorder	Upper Ring Nut	£12.62 £10.52
18	MO3612650 Available to backorder	Lower Ring Nut	£12.91 £10.76
20	MO2321230 Available to backorder	Washer	£1.40 £1.17
21	MO2653170 Available to backorder	Screw	£4.60 £3.83
22	MO4611880 In stock	4 Teeth Disck	£11.90 £9.92
23	MO6031172 Available to backorder	3 Teeth Disc	£9.08 £7.57
31	MO1911-9228-01 In stock	Profi Tap & Go Brushcutter Ggp03	£24.77 £20.64
