G 300 - 2022-2025 - 2R3101118/ST1 - Stiga Robot Mower Blade and Wheel Motor Diagram

Name: G 300 - 2022-2025 - 2R3101118/ST1 - Stiga Robot Mower Blade and Wheel Motor Diagram
SKU: g_300_2r3101118_st1_blade_and_wheel_motor-group
Price: 1.27 GBP
Availability: InStock

Part No. g_300_2r3101118_st1_blade_and_wheel_motor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

G 300 - 2022-2025 - 2R3101118/ST1 - Stiga Robot Mower Blade and Wheel Motor Diagram

Description

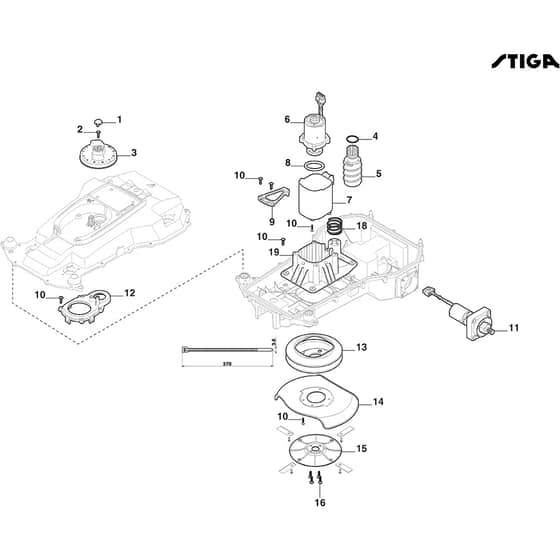

Stiga G 300 Parts Diagram

Product Name - G 300

Model Year - 2022-2025

Model Type - SRSW01

Art.N - 2R3101118/ST1

Engine Model -

	Part No.	Details
1	MO322820095/0 Available to backorder	Cap	£3.06 £2.55
2	MO112728718/0 Available to backorder	Screw	£1.55 £1.29
3	MO322399870/0 Available to backorder	Knob	£6.66 £5.55
4	MO119035006/0 Available to backorder	O-Ring	£1.52 £1.27
5	MO322784956/1 Available to backorder	Height Adjustment Screw	£9.49 £7.91
6	MO381395002/1 Available to backorder	Group Cutting Motor	£138.49 £115.41
7	MO322784955/0 Available to backorder	Motor Housing	£7.28 £6.07
8	MO122280004/0 Available to backorder	Motor Gasket	£4.15 £3.46
9	MO322784971/0 Available to backorder	Motor Support	£2.77 £2.31
10	MO112728717/0 Available to backorder	Screw	£1.52 £1.27
11	MO381395003/1 Available to backorder	Wheel Engine	£130.58 £108.82
12	MO322110132/0 Available to backorder	Cover	£6.30 £5.25
13	MO322110086/0 In stock	Guard	£8.88 £7.40
14	MO322110087/0 Available to backorder	Guard	£5.95 £4.96
15	MO322465654/0 Available to backorder	Blade Disc	£12.37 £10.31
16	MO112760712/0 Available to backorder	Screw	£1.52 £1.27
18	MO122430257/1 Available to backorder	Spring	£4.03 £3.36
19	MO322784954/1 Available to backorder		£13.25 £11.04
