Stihl FS250.0 R - Rewind Starter, Ignition System - Parts Diagram

Description

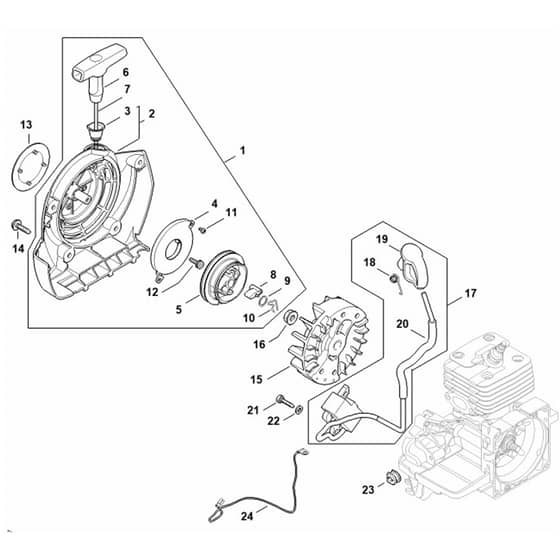

Stihl FS250.0 R - Rewind Starter, Ignition System - Parts Diagram

	Part No.	Details
1	ST4134 080 2103 Available to backorder	Fan housing with rewind starter (Contains 2 - 12)	£61.45 £51.21
3	ST1110 084 9102 In stock	Bushing	£2.02 £1.68
4	ST4134 190 0601 Available to backorder	Rewind spring	£9.91 £8.26
5	ST4128 195 0400 In stock	Rope rotor	£9.30 £7.75
6	ST1121 195 3400 In stock	Starter grip	£4.14 £3.45
7	ST0000 195 8203 In stock	Starter rope Ø 3x850 mm	£3.20 £2.67
8	ST0000 195 7200 In stock	Pawl	£2.36 £1.97
9	ST0000 958 0923 In stock	Washer	£1.19 £0.99
10	ST1118 195 3500 Available to backorder	Spring	£1.19 £0.99
11	ST9104 003 0410 In stock	Self-tapping screw P3x6	£0.72 £0.60
12	ST4223 084 5600 Available to backorder	Screw	£3.08 £2.57
14	ST0000 951 1100 In stock	Screw	£1.66 £1.38
16	ST9220 260 1100 In stock	Hexagon nut M8	£0.83 £0.69
17	ST4134 400 1312 Available to backorder	Ignition module (Contains 18 - 20)	£86.40 £72.00
18	ST0000 998 0604 In stock	Spark plug contact spring	£1.43 £1.19
19	ST4128 405 1000 Available to backorder	Spark plug boot	£7.40 £6.17
21	ST9075 478 3022 In stock	Pan head self-tapping screw IS-D4x20	£0.95 £0.79
22	ST9291 021 0121 Available to backorder	Washer 5.3	£0.35 £0.29
23	ST4134 432 9300 Available to backorder	Grommet	£1.46 £1.22
